Keysight EXG and MXG X-Series Signal Generators User’s Guide 413

Using BERT for N5172B/82B with Option UN7

Verifying BERT Operation

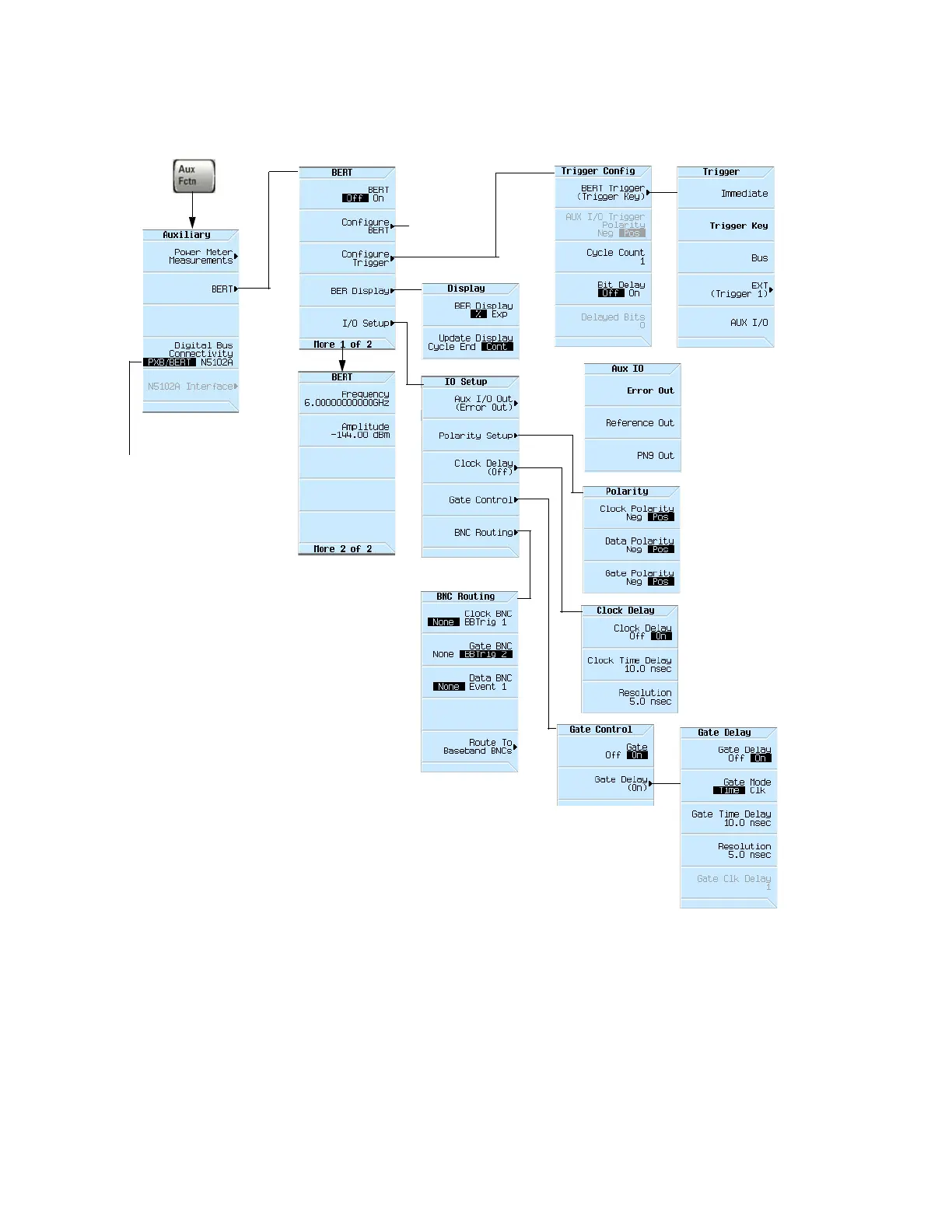

Figure 16-15 BERT I/O Setup Softkeys

The highlighted BNC connectors in Figure 16-16 are used for different signals in the BERT

capability mode. The BERT-specific configuration is shown here. The AUX I/O connector

configuration is customizable for the applications/options being used. Figure 16-16 shows the rear

panel connectors used for the BERT capability, and the configuration of the AUX I/O connector. For

more information about the AUX I/O connector, refer to Rear Panel Overview (N5171B, N5172B,

N5181B, & N5182B) on page 23.

Select PXB/BERT to enable

BERT functionality.

see page412
