414 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using BERT for N5172B/82B with Option UN7
Verifying BERT Operation
BERT Measurement Setup Using Self-Test Mode
The following steps set up the signal generator for the BERT measurement selt-test.
1. Refer to Figure 16-16 and make the following connections on the signal generator’s rear panel.
— DATA OUT (AUX I/O connector pin 15) to BER DATA IN (BNC connector labeled EVENT 1).
— DATA CLK OUT (AUX I/O connector pin 17) to BER CLK IN (BNC connector labeled BB
TRIG1).

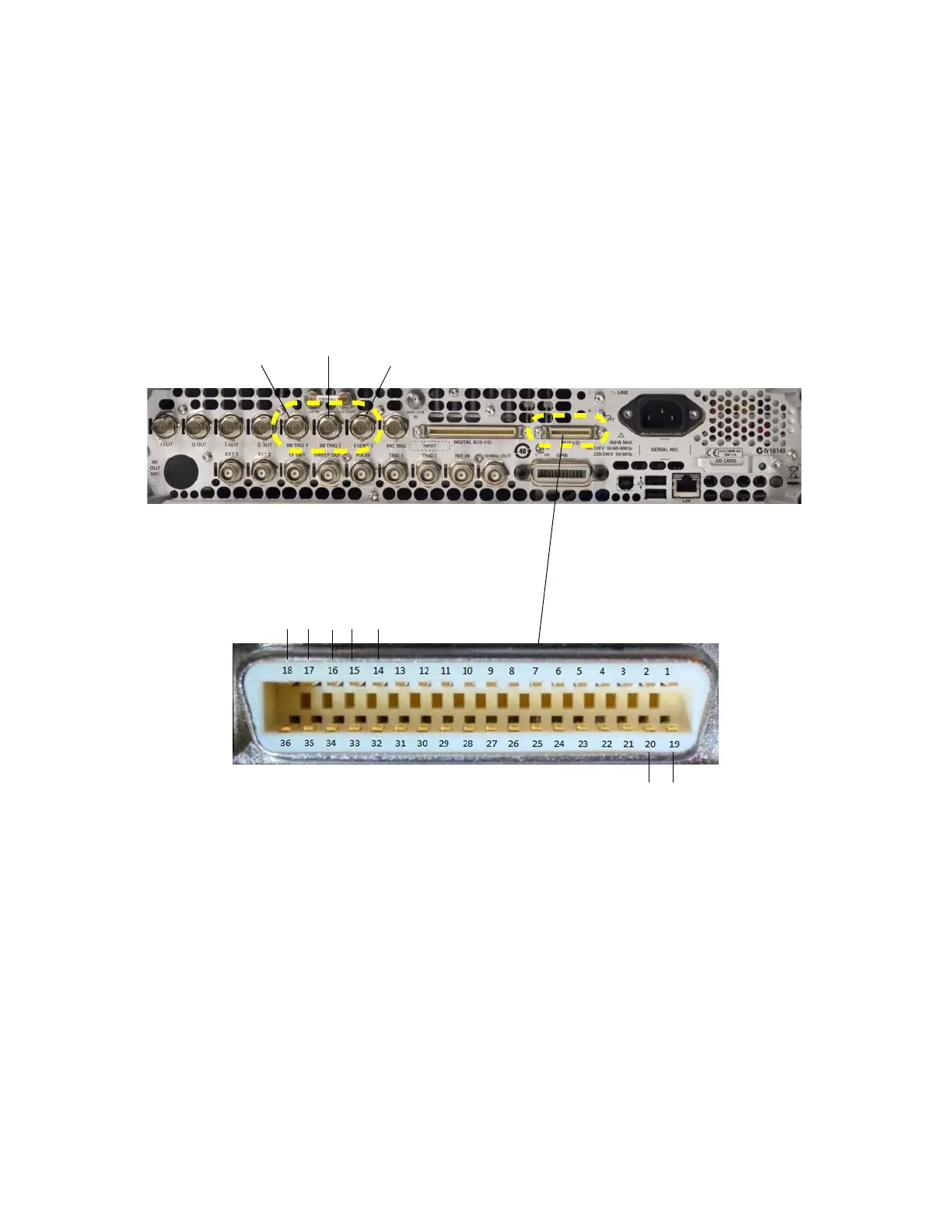

Figure 16-16 Rear Panel Connectors for BERT Configuration
2. Press the Preset key. This configures the signal generator to a pre-defined state.
3. Press the Aux Fctn key.
4. Press Digital Bus Connectivity PXB/BERT N5102A to PXB/BERT > Confirm Changes > BERT >
BERT Off On to On > BER Display > BER Display % Exp to % > Display Update Cycle End Cont
to Cont.
5. Press BERT > I/O Setup > AUX I/O Out > PN9 Out.
6. Press Return > Configure Trigger > BERT Trigger > Immediate.
7. Press Return > BERT > On.
BER Data In
BER Gate In
BER Clock In
BER Meas End
BER Sync Loss
BER Test Out
BER Gate Out
BER No Data
AUX I/O
GND
