270 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657
Using Customized Burst Shape Curves
Using Customized Burst Shape Curves
You can adjust the shape of the rise time curve and the fall time curve using the Rise Shape and
Fall Shape editors. Each editor allows you to enter up to 256 values, equidistant in time, to
define the shape of the curve. The values are then resampled to create the cubic spline that passes
through all of the sample points.
The Rise Shape and Fall Shape table editors are available for custom real-time I/Q baseband
generator waveforms.

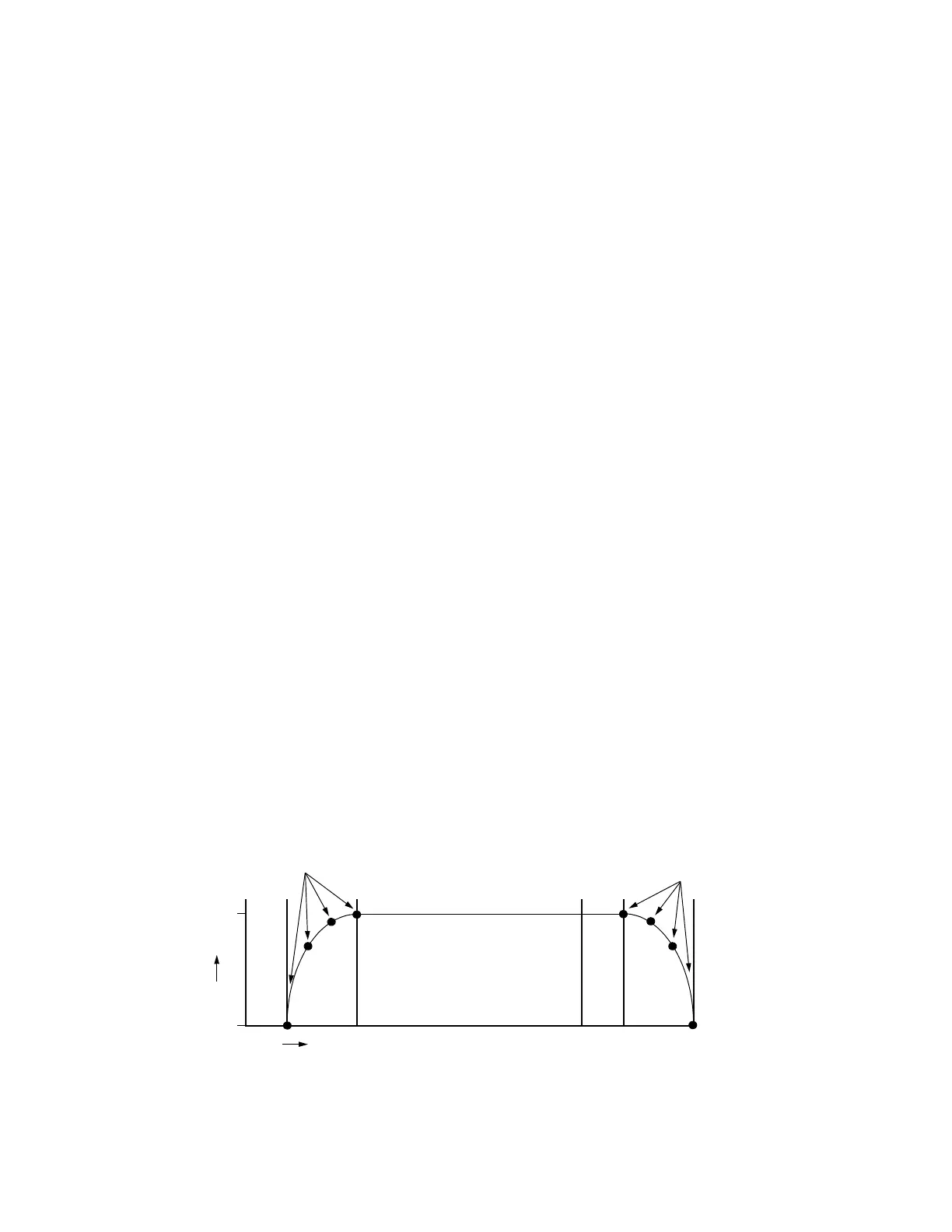

Understanding Burst Shape
The default burst shape of each format is implemented according to the standards of the format
selected. You can, however, modify the following aspects of the burst shape:
Rise time the period of time, specified in symbols or bits, where the burst
increases from a minimum of −70 dB (0) to full power (1).
Fall time the period of time, specified in symbols or bits, where the burst
decreases from full power (1) to a minimum of −70 dB (0).
Rise delay the period of time, specified in symbols or bits, that the start of
the burst rise is delayed. Rise delay can be either negative or
positive. Entering a delay other than zero shifts the full power
point earlier or later than the beginning of the first useful symbol.
Fall delay the period of time, specified in symbols or bits, that the start of
the burst fall is delayed. Fall delay can be either negative or
positive. Entering a delay other than zero shifts the full power
point earlier or later than the end of the last useful symbol.
User-defined burst shape up to 256 user-entered values which define the shape of the
curve in the specified rise or fall time. The values can vary
between 0 (no power) and 1 (full power) and are scaled linearly.
Once specified, the values are resampled as necessary to create
the cubic spline that passes through all of the sample points.
Burst shape maximum rise and fall time values are affected by the following factors:
—the symbol rate
0
1
Power
Ris
Ris Fall
Fall
Time
User-Def
User-Def
