272 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657

Using Customized Burst Shape Curves

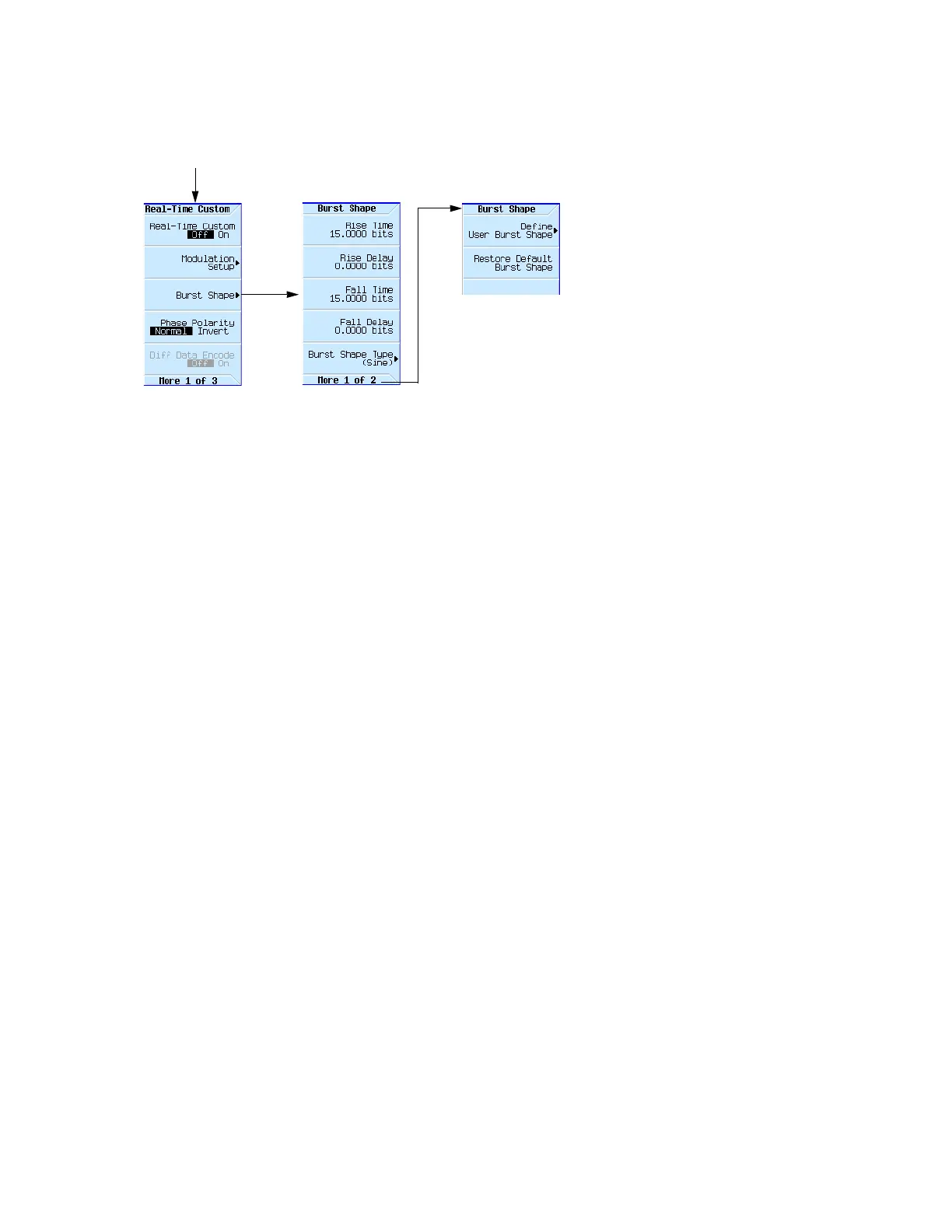

Figure 9-14 Burst Shape Softkeys

Creating a User-Defined Burst Shape Curve

Using this procedure, you learn how to enter rise shape sample values and mirror them as fall

shape values to create a symmetrical burst curve.

This section teaches you how to perform the following tasks:

— “Accessing the Table Editors” on page 272

— “Entering Sample Values” on page 273

Accessing the Table Editors

1. Press Preset.

2. Press Mode > Real-Time Custom Modulation > Burst Shape.

3. Press More > Define User Burst Shape > More (1 of 2) > Delete All Rows > Confirm Delete Of

All Rows.

Mode > Real-Time Custom

Modulation

For details on each key, use key help as described on page56.
