300 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657
Modifying a FIR Filter Using the FIR Table Editor
5. Press Filter Symbols > 8 > Enter.
6. Press Generate.
7. Press Display Filter > Display Impulse Response (refer to Figure 9-39).

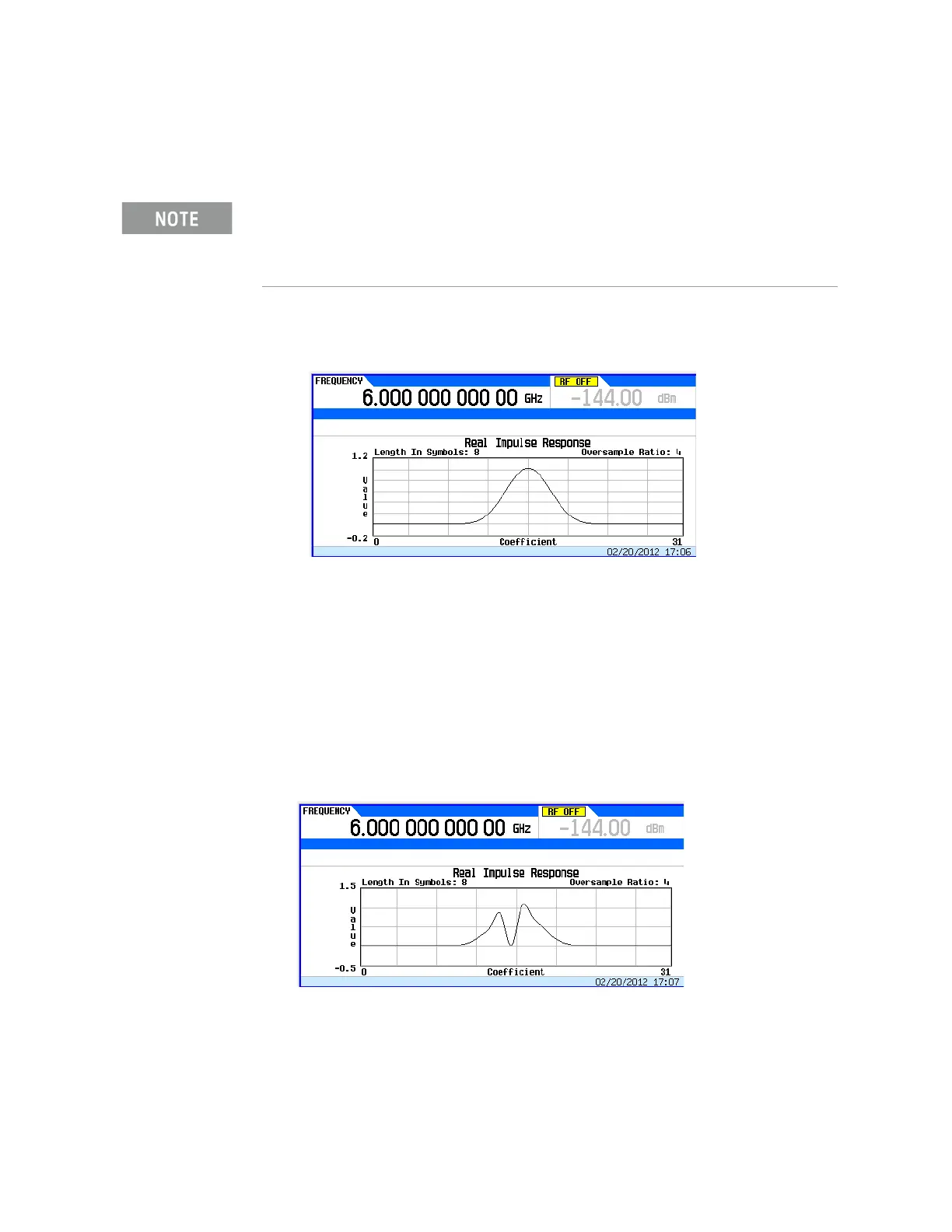

Figure 9-39 Impulse Response Display
8. Press Return.
Modifying the Coefficients
1. Using the front panel arrow keys, highlight coefficient 15.
2. Press 0 > Enter.
3. Press Display Impulse Response.
Figure 9-40 Impulse Response Display with Modified Coefficients
Refer to Figure 9-40 on page 300. The graphic display can provide a useful troubleshooting
tool (in this case, it indicates that a coefficient value is missing, resulting in an improper
Gaussian response).
4. Press Return.
The actual oversample ratio during modulation is automatically selected
by the instrument. A value between 4 and 16 is chosen dependent on the
symbol rate, the number of bits per symbol of the modulation type, and
the number of symbols.
For details on each key, use key
help as described on page56.
For details on each key, use key
help as described on page56.
