32 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Models, Options, and Front/Rear Panels for All Models

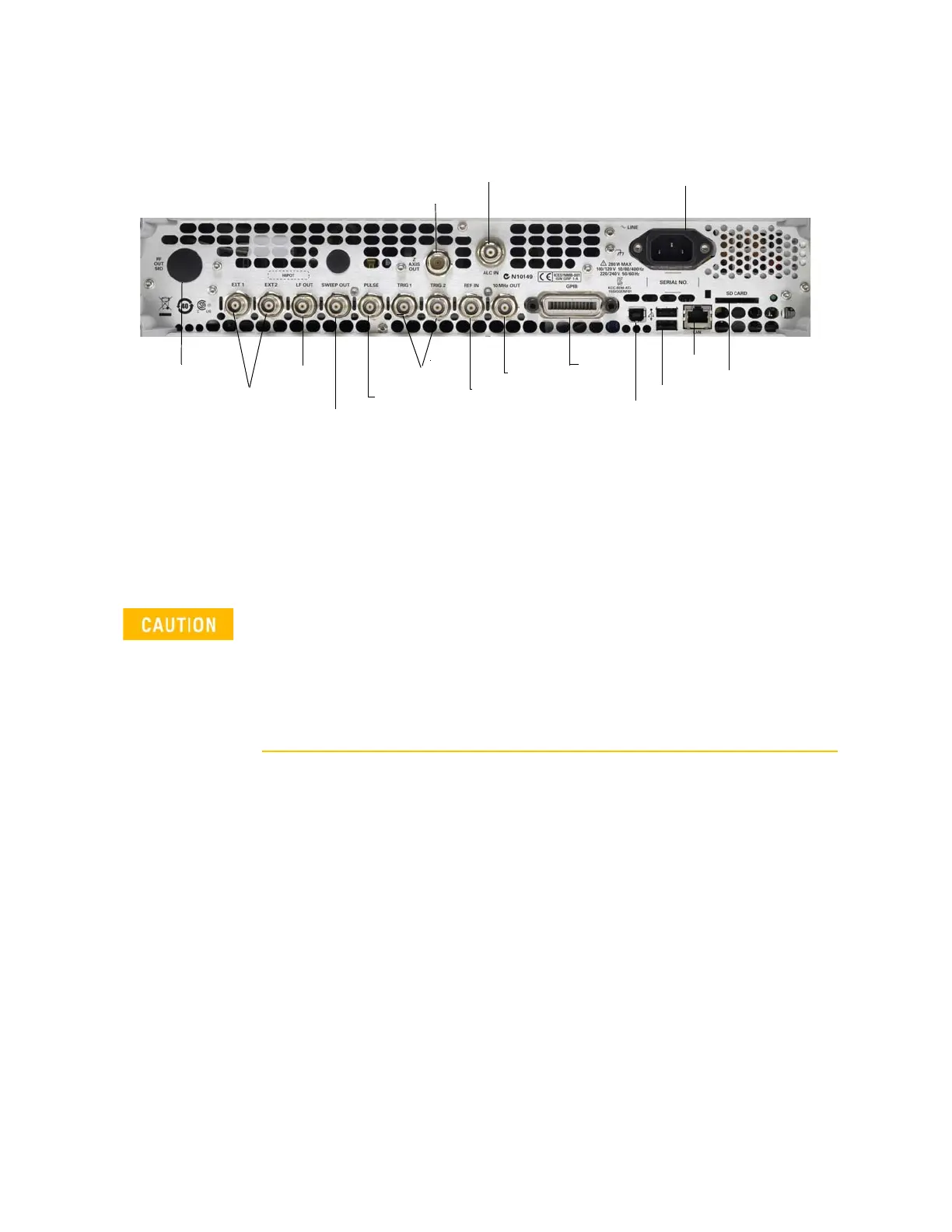

Rear Panel Overview (N5173B & N5183B)
Rear Panel Overview (N5173B & N5183B)
1. AC Power Receptacle
The AC power cord receptacle accepts a three–pronged AC power cord that is supplied
with the signal generator. For details on line setting requirements and the power cord,
see the Getting Started Guide.
To avoid the loss of data, GPIB settings, or current user instrument states
that have not been permanently saved to non-volatile memory, the signal
generator should always be powered down either via the instrument’s
front panel power button or the appropriate SCPI command. Signal
generators installed in rack systems and powered down with the system
rack power switch rather than the instrument’s front panel switch display
an Error -310 due to the instrument not being powered down correctly.
4. SWEEP OUT
2. EXT 1 & EXT 2
5. PULSE
6. TRIG 1 & 2
7. REF IN
9. GPIB
10. LAN
11. Device USB
8. 10 MHz OUT
1. AC Power Receptacle
Option 1EM only
See page18
12. Host USB
13. SD Card
3. LF OUT
14. ALC INPUT
15. Z AXIS OUTPUT
