Keysight EXG and MXG X-Series Signal Generators User’s Guide 193

Basic Digital Operation for N5172B/82B with Options 653/655/656/657

Clipping a Waveform

How Power Peaks Develop

To see how clipping reduces high power peaks, it is important to understand how the peaks

develop as you construct a signal.

Multiple Channel Summing

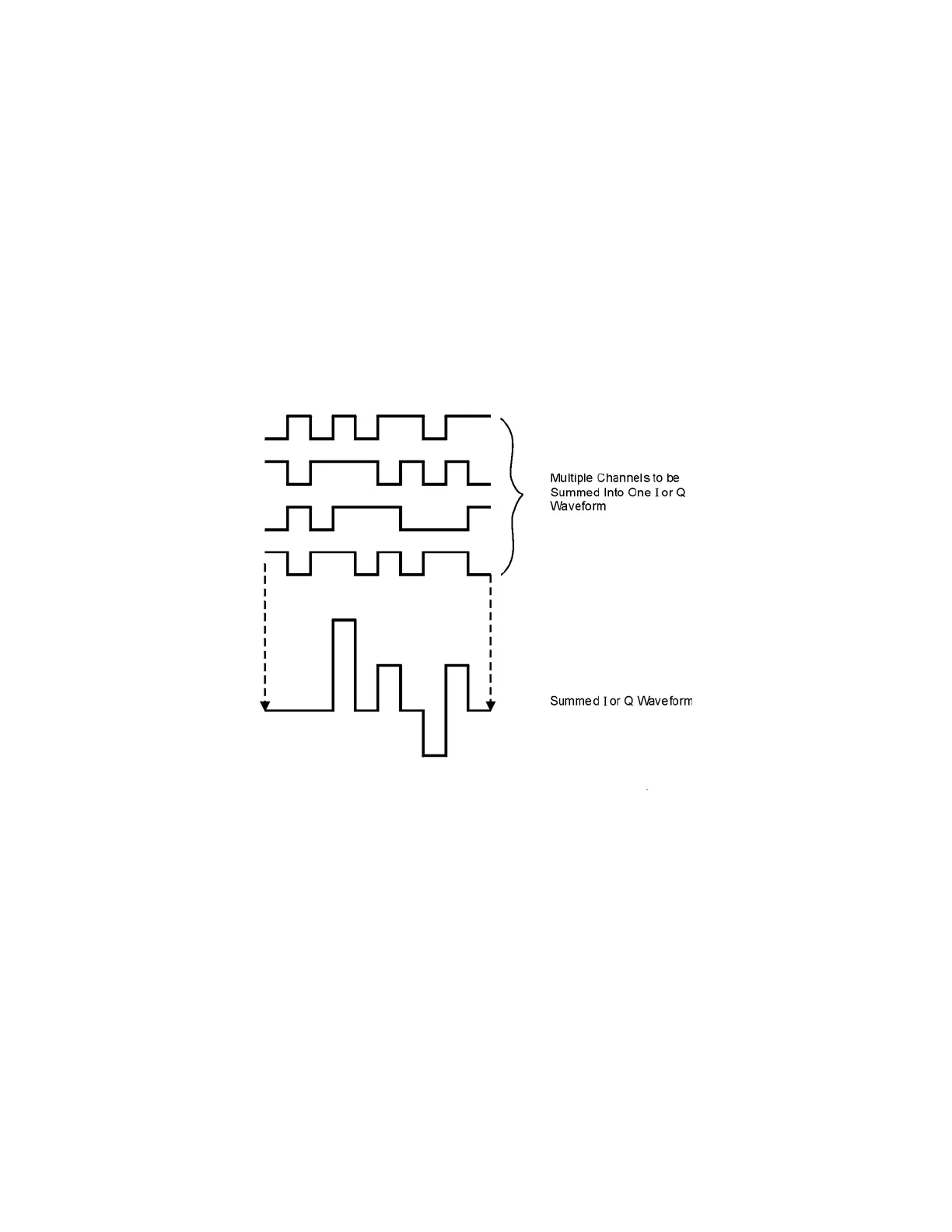

I/Q waveforms can be the summation of multiple channels, as shown in the following figure. If a bit

in the same state (high or low) occurs simultaneously in several individual channel waveforms, an

unusually high power peak (positive or negative) occurs in the summed waveform.

Because the high and low states of the bits in channel waveforms are random and generally result

in a canceling effect, high power peaks occur infrequently with multiple channel summing.
