288 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657
Using the Arbitrary Waveform Generator
Creating a Custom Multicarrier Digital Modulation State
In this procedure, you learn how to customize a predefined, multicarrier, digital modulation setup
by creating a custom, 3–carrier EDGE, digital modulation state.
This section teaches you how to perform the following tasks:
— Creating a Multicarrier Digital Modulation Setup on page 289
— Modifying Carrier Frequency Offset on page 289
— Modifying Carrier Power on page 289
— Generating the Waveform on page 289
— Configuring the RF Output on page 289

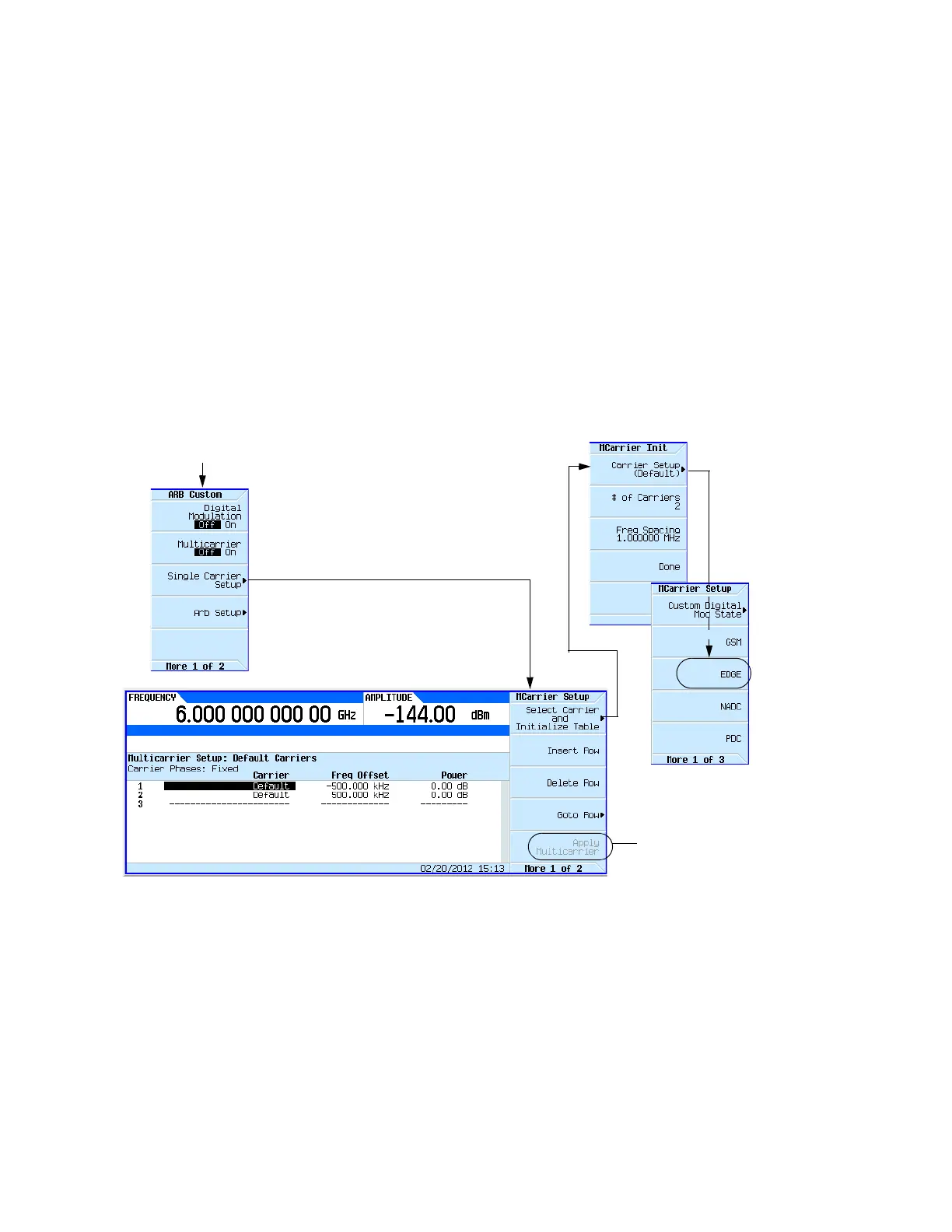

Figure 9-29 Creating a Multicarrier Digital Modulation Setup
Mode > ARB Custom Modulation
Becomes active when a change
has been made to the
Multicarrier Setup table values
or to the multicarrier menu
values (i.e. Carrier Setup, # of
Carriers, Freq Spacing, or to the
Carrier Phases).
For details on each key, use key help as described on page56.
To Next Page
