Keysight EXG and MXG X-Series Signal Generators User’s Guide 61

Front Panel Operation for All Models

Setting ALC Bandwidth Control with Amplitude Softkeys

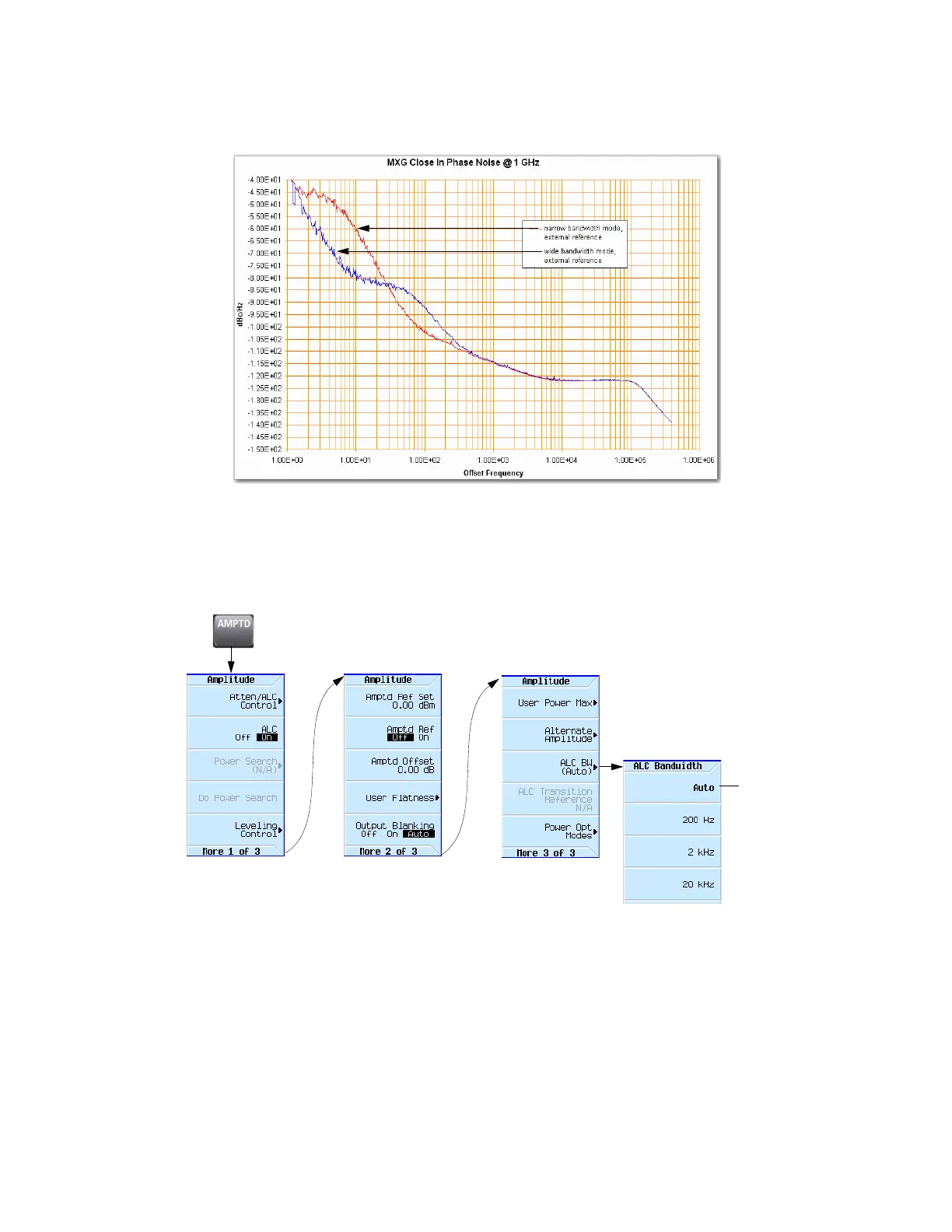

Figure 4-3 Using an External Reference Oscillator

Setting ALC Bandwidth Control with Amplitude Softkeys

Figure 4-4 ALC Bandwidth Control Softkeys and Amplitude Softkeys

To display the next menu,

press

More.

For details on each key, use key help

as described on page56.

Refer to the SCPI Command Reference.

Enables the

automatic

ALC

bandwidth

mode (Auto).

Default Chapter5
