Keysight EXG and MXG X-Series Signal Generators User’s Guide 77
Front Panel Operation for All Models
Working with Files (Viewing/Storing/Loading/Moving)
Loading (Recalling) a Stored File
There are several ways to load (recall) a stored file.
— For an instrument state file, use the Recall key shown in Figure 4-9 on page 79.

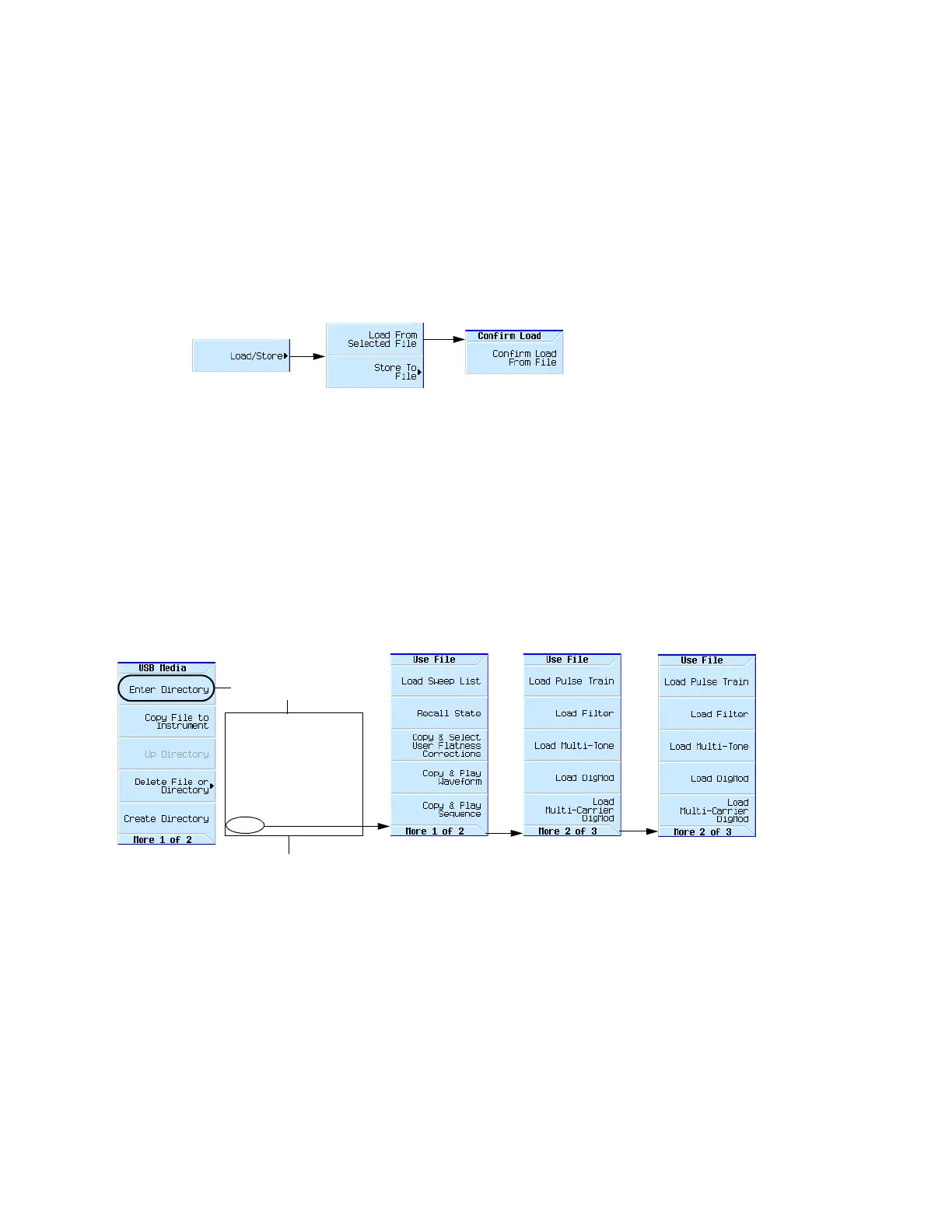

— For other types of data, use the Load/Store softkey (shown below) that is available through the
menu used to create the file.
Loading a File From USB Media
To load a file from USB media, use the USB file manager shown below.
File Type
List
State
Waveform
User Flatness
User Preset
Pulse Train
Recall From
Sweep menu
Save menu
Mode menu
Amplitude menu
User Preset menu
Pulse Train menu
This key changes, depending
on the selected file.
If the signal generator does not recognize the file,
you must select how the file is to be used.
File Type
List
State
Waveform
User Flatness
User Preset
License
Pulse Train
Extension
.list
.state
.waveform
.uflat
.uprst
.lic
.ptrain
Pressing Select with file highlighted...
loads list and starts sweep
load instrument state
loads and plays waveform
loads and applies user flatness
loads and executes user preset
installs purchased license
loads and applies pulse train
For details on each key, use key help as described on page56.
Copy & Select User Flatness
Copy & Play Waveform
Copy & Play Sequence
Enter Directory
Recall Instrument State
Load List
Load Pulse Train
Install licenses
No action (USB disconnected)
Use As
File > Catalog Type > <type> > More > USB File Manager
or
File > More > USB File Manager
or
Insert the USB media
