Keysight EXG and MXG X-Series Signal Generators User’s Guide 79
Front Panel Operation for All Models
Working with Files (Viewing/Storing/Loading/Moving)

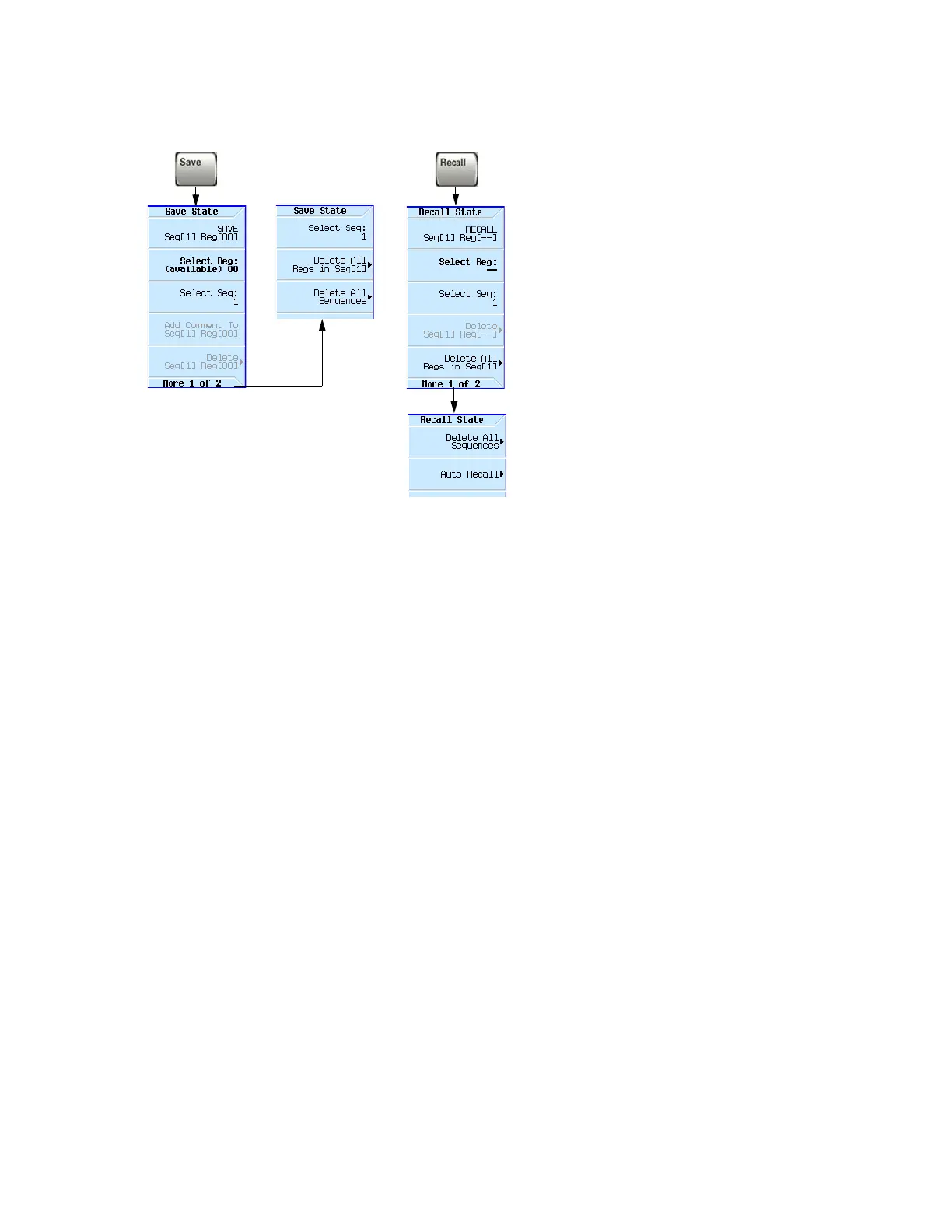

Figure 4-9 Save and Recall Softkeys
Table 4-2
The following information is not stored in a state file:
System Security Level Sweep lists Hostname Remote
Language
Step increment values
System Security Level Display Pulse Train lists IP Address FTP Server ARB Files
System Security Level State Display State On/Off Subnet Mask Manual DHCP MAC
Web Server (HTTP) Files Default
Gateway
VXI–11 SCPI User Power
Correction
Sockets SCPI (TELNET) I/Q Calibration Data
When saved to the signal generator, instrument settings
(states) save to instrument state memory*. Instrument
state memory is divided into 10 sequences (0 through 9);
each sequence comprises 100 registers (00 through 99).
Delete softkeys in the Save and Recall menus enable you
to delete the contents of a specific register, or the contents
of all sequences in the state file catalog.
The signal generator requires that you confirm a deletion.
*
Caution
T
o avoid the loss of data, GPIB settings, or current user
instrument states that have not been permanently saved
to non-volatile memory, the instrument should always be
powered down either via the instrument's front panel
power button or the appropriate SCPI command.
instrument's installed in rack systems and powered down
with the system rack power switch, rather than the
instrument's front panel switch display a Error -310 due to
the instrument not being powered down correctly.
For details on each key, use key help
as described on page56.
