Keysight EXG and MXG X-Series Signal Generators User’s Guide 187
Basic Digital Operation for N5172B/82B with Options 653/655/656/657
Triggering a Waveform
— Segment Advance mode plays a segment in a sequence only if triggered. The trigger source
controls segment–to–segment playing (see Example: Segment Advance Triggering on page
188). A trigger received during the last segment loops play to the first segment in the sequence.
— Gated mode triggers the waveform at the first active triggering state, then repeatedly starts and
stops playing the waveform in response to an externally applied gating signal. See Example:
Gated Triggering on page 189.
Trigger Source
External Trigger Polarity
— In Continuous, Single, and Segment Advance modes, use the Ext Polarity softkey to set the
external trigger polarity.
— In Gated mode, the Active Low and Active High softkeys (page 186) determine the external
trigger polarity.

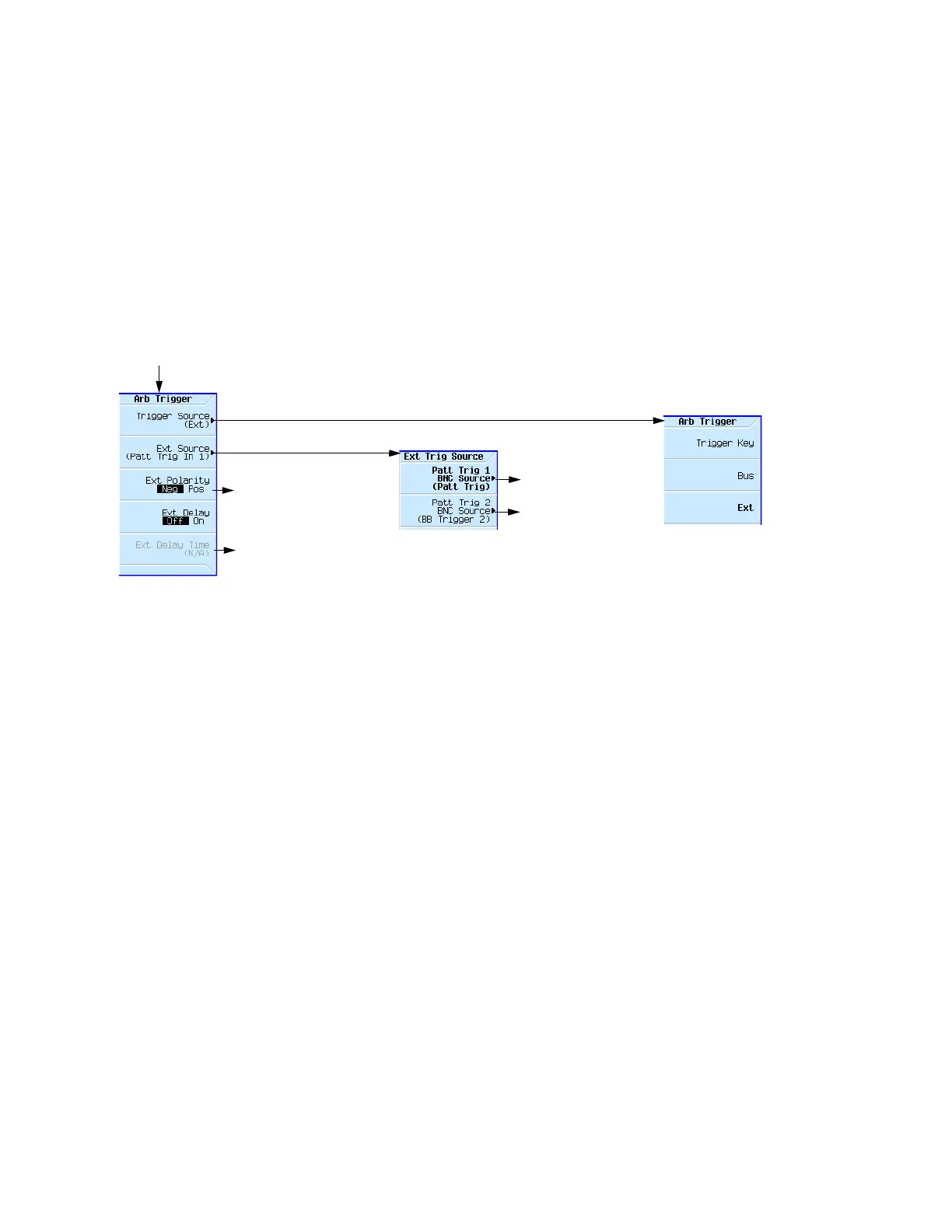

Mode >
Dual ARB >
Trigger Source
Patt Trig In BNC connector
(see page27)
AUX I/O connector
(see page28)
Neg = the signal generator
responds during the trigger signal
low state.
Pos = the signal generator
responds during the trigger signal
high state.
For details on each key, use key help
as described on page56.
Key inactive until Ext
Delay is enabled On.
To Next Page
