338 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Using Real–Time Fading for N5172B/82B with Option 660 and 653/655/656/657

Using Real-Time Fading Softkeys

This feature lets you open a menu to configure Real-Time Fading simulations.

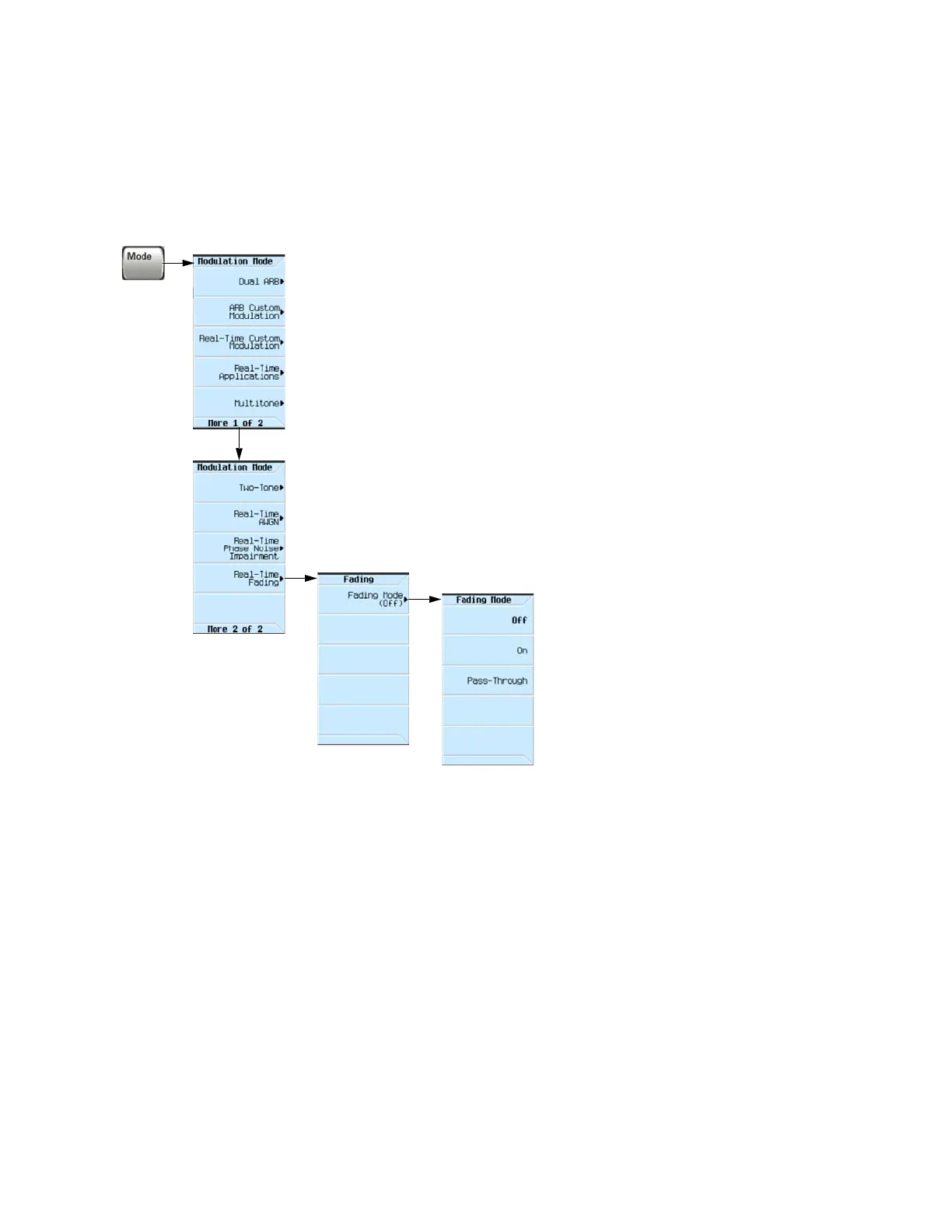

Figure 13-1 Real-Time Fading Softkeys

For details on each key, use key help

as described on page56.

- Sets to Pass-Through Mode;

route through the Fading path with the Fader

having only a latency and scale effect.

- Turns on Fading Mode;

route through the Fading path with

the Fader in operation.

- Turns off Fading Mode;

do not route through the

Fading path.
