312 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using Multitone and Two-Tone Waveforms for N5172B/82B with Option 430 and 653/655/656/657
Using Multitone Softkeys
Using Multitone Softkeys

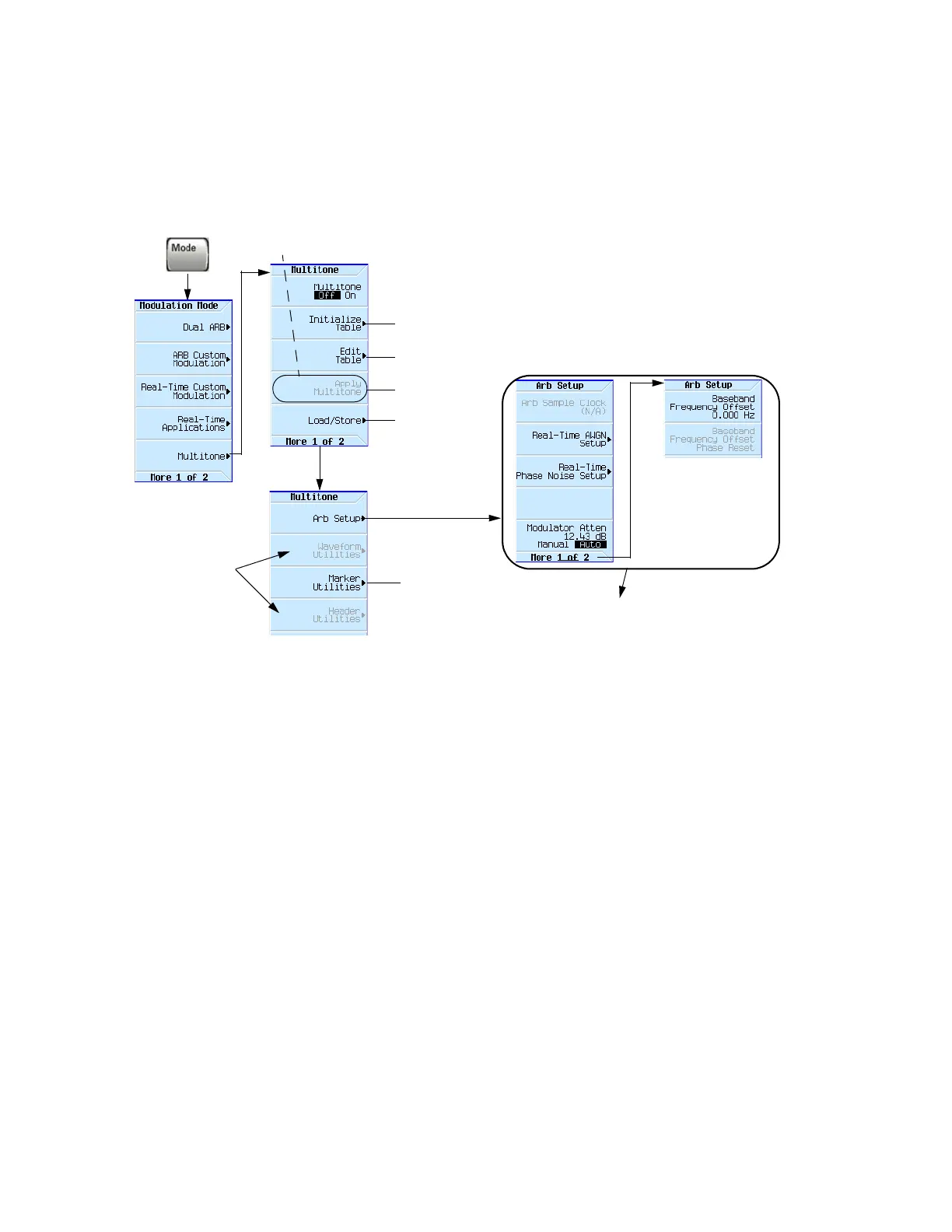

Multitone Softkeys
Initializing the Multitone Setup Table Editor
1. Press Preset.
2. Press Mode > Multitone
3. Press Initialize Table > Number of Tones > 5 > Enter.
4. Press Freq Spacing > 20 > kHz.
page313
page312
This softkey is active if changes have been made to
the current Multitone waveform in the table editor. The
softkey must be pressed to apply those changes.
page314
page314
Active when
Multitone enabled.
For softkey usage,
see page154
page154
see page154
(Multitone’s ARB Setup is similar to Dual Arb Setup.)
Exceptions:
> No Waveform Runtime Scaling softkey,
> No Multi–BBG Sync Setup softkey, and
> No DAC Over–Range Protection softkey
For details on each key, use key help as described on page56.
To Next Page
