Keysight EXG and MXG X-Series Signal Generators User’s Guide 451
Using the N5102A Digital Signal Interface Module for N5172B/82B with Option 003/004 and
653/655/656/657
Operating the N5102A Module in Input Mode

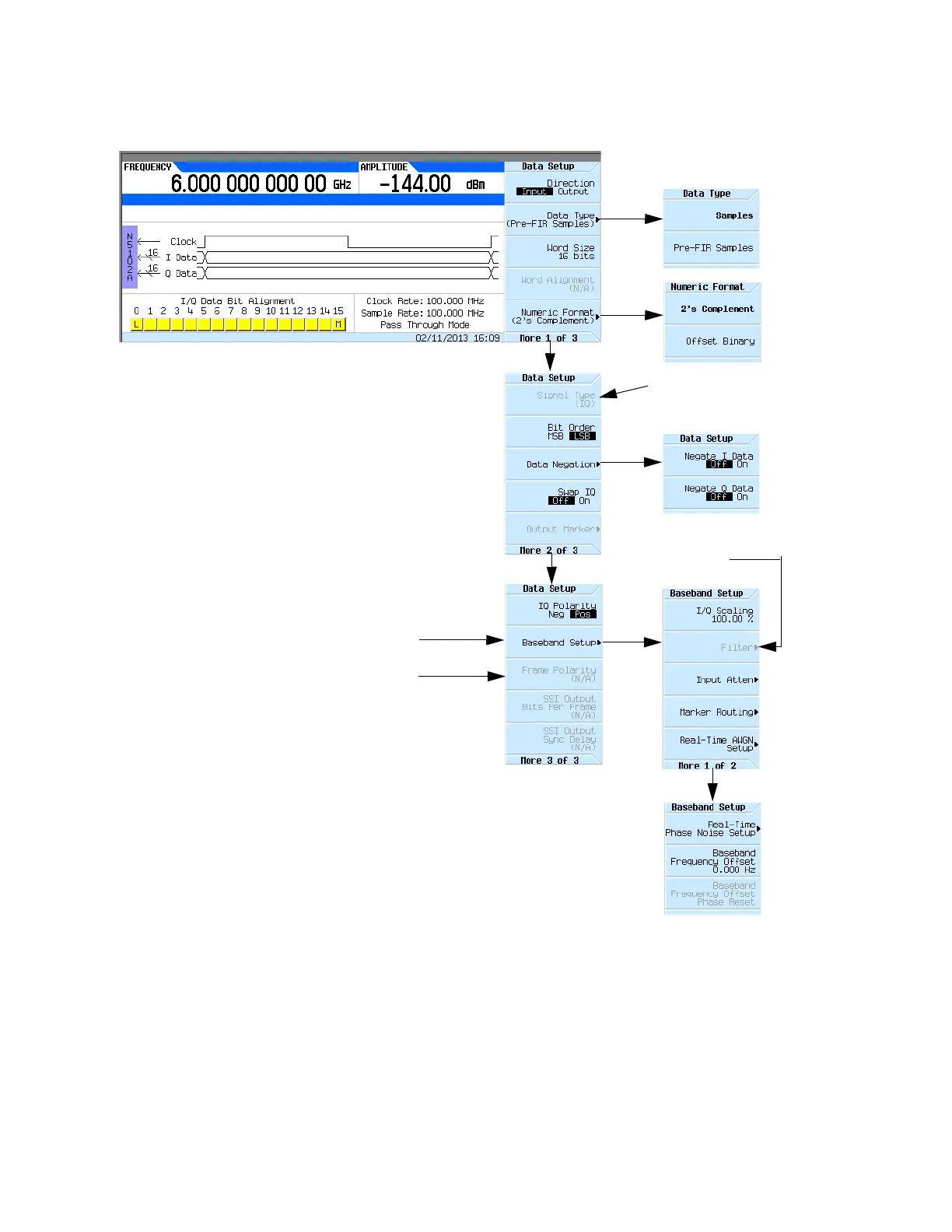

Figure 17-22 Data Setup Softkey Menu with Parallel Port Configuration
2. Press the Data Type softkey.
In this menu, select the data type to be either filtered (Samples) or unfiltered (Pre-FIR
Samples). The selection is dependent on the test needs and the device under test. However if
the device being tested already incorporates FIR filters, the Pre-FIR Samples selection should
be used to avoid double filtering. Refer to “Data Types” on page 433, for more information.
3. Select the data type that is appropriate for the test needs.
4. Press the Numeric Format softkey.
Inactive for a serial port
Frame polarity is active
configuration
for a serial port configuration
Only available when the N5102A
digital module is
turned on and using input mode
Only available when
Data Type is
Pre-FIR Samples
To Next Page
