136 Keysight EXG and MXG X-Series Signal Generators User’s Guide
Using Pulse Modulation for All Models with Options UNU, UNW, 320

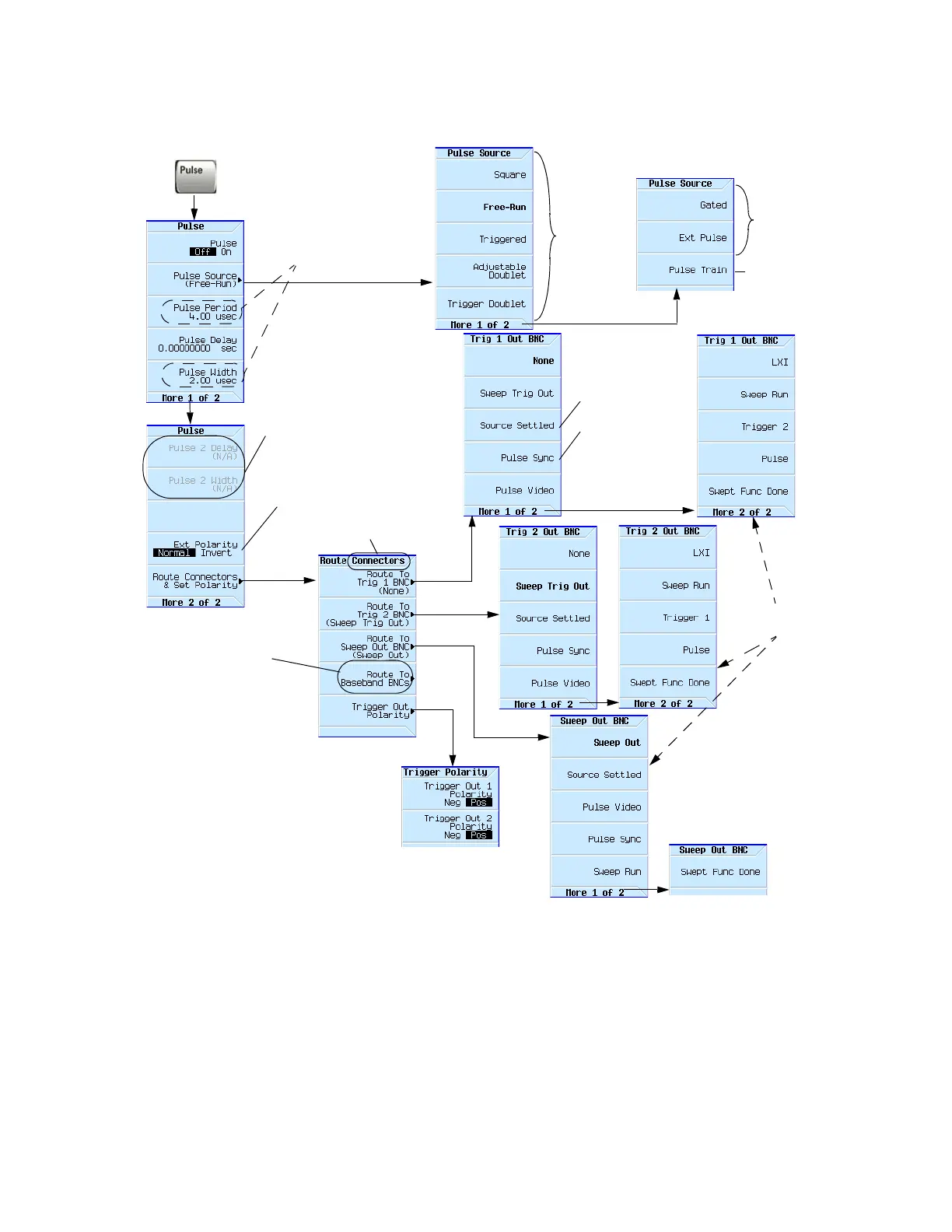

Figure 6-1 Pulse Softkeys
page139
page139
Latency from the external
pulse input to the pulse
sync output ≈ 50−60 ns.
Width Period
50 ns > 50 ns
20 ns ≤ 50 ns
For details on each key, use key help
as described on page56.
Determines how the signal generator
responds to an external pulse signal.
Normal = high state.
Invert = low state.
Low = settled
TTL signal
See also, page24 and
page26
Select the signal
routed to each
output connector.
Available on vector
instruments with
BBG.
These softkeys are
only available when
the Pulse–Source is
set to Adjustable
Doublet.
page141
Note: Pulse Period
and Pulse Width are
not available when
Pulse Train is selected
as the Pulse Source.
