Keysight EXG and MXG X-Series Signal Generators User’s Guide 157

Basic Digital Operation for N5172B/82B with Options 653/655/656/657

Storing, Loading, and Playing a Waveform Segment

5. Configure the RF Output:

Set the RF carrier frequency and amplitude, and turn on the RF output.

The waveform segment is now available at the signal generator’s RF Output connector.

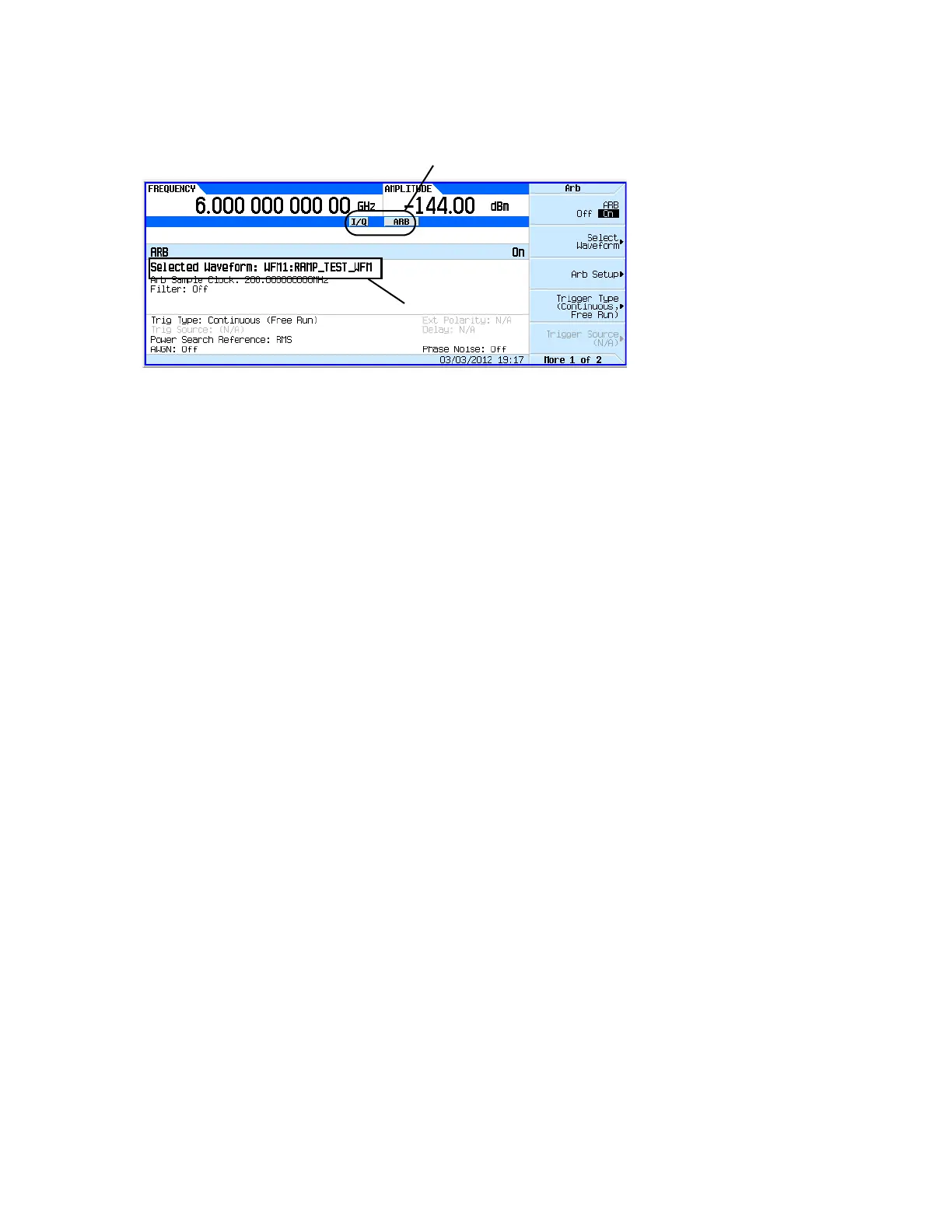

Current waveform selection

Annunciators display with active waveform (ARB On)

Default Chapter5
