Keysight EXG and MXG X-Series Signal Generators User’s Guide 173

Basic Digital Operation for N5172B/82B with Options 653/655/656/657

Using Waveform Markers

Sample range begins on first point of signal

Negative range set between signal and

off time

Example of Incorrect Use

Waveform: 1022 points

Marker range: 110–1022

Marker polarity: Negative

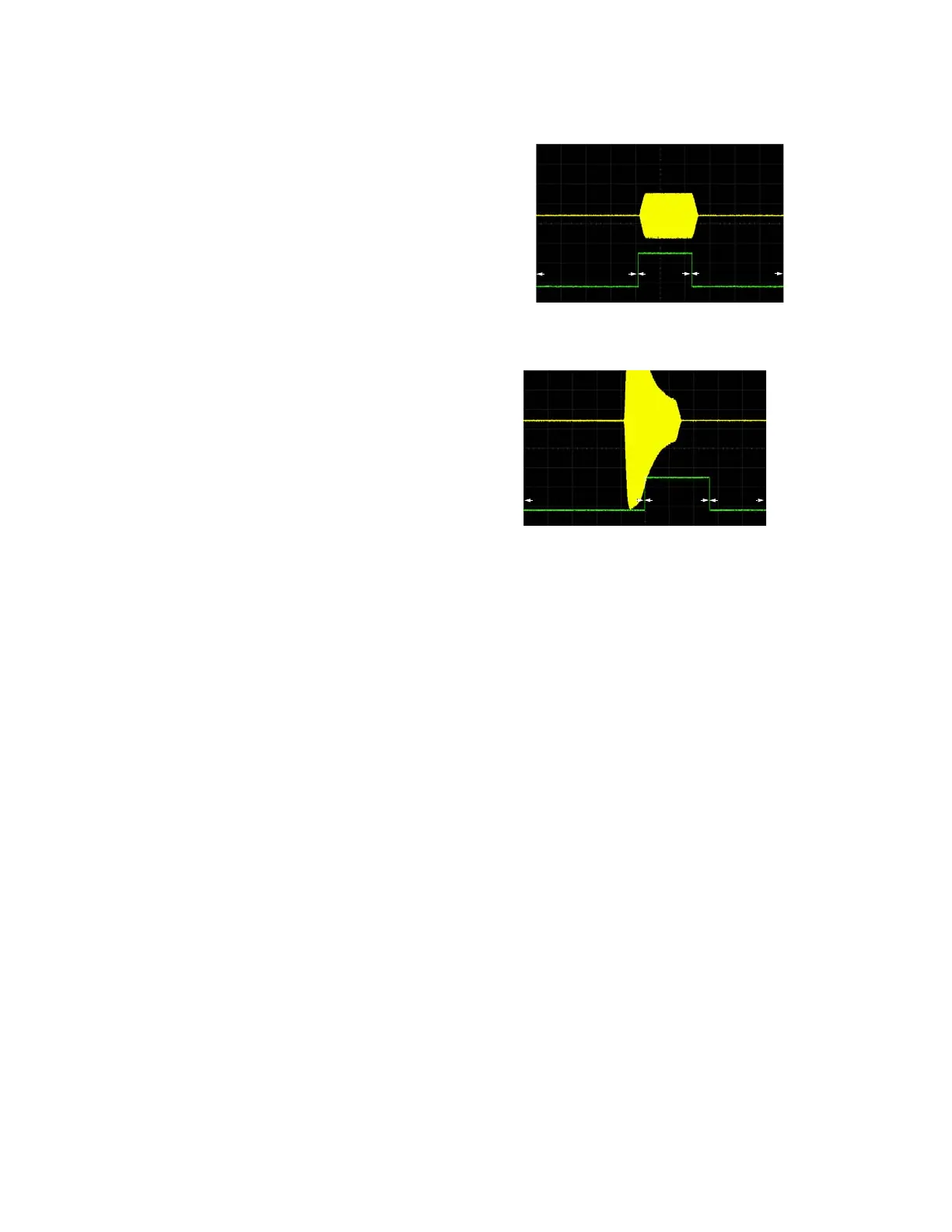

This figure shows that a negative polarity marker goes

low during the marker on points; the marker signal goes

high during the off points. The ALC samples the

waveform during the off marker points.

Marker On

Sampling both on and off time sets the modulator

circuitry incorrectly for higher signal levels. Note the

increased amplitude at the beginning of the pulse.

Marker

Off

Marker On

Marker

Off

Default Chapter5
