224 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Basic Digital Operation for N5172B/82B with Options 653/655/656/657

Using Finite Impulse Response (FIR) Filters in the Dual ARB Real-Time Modulation Filter

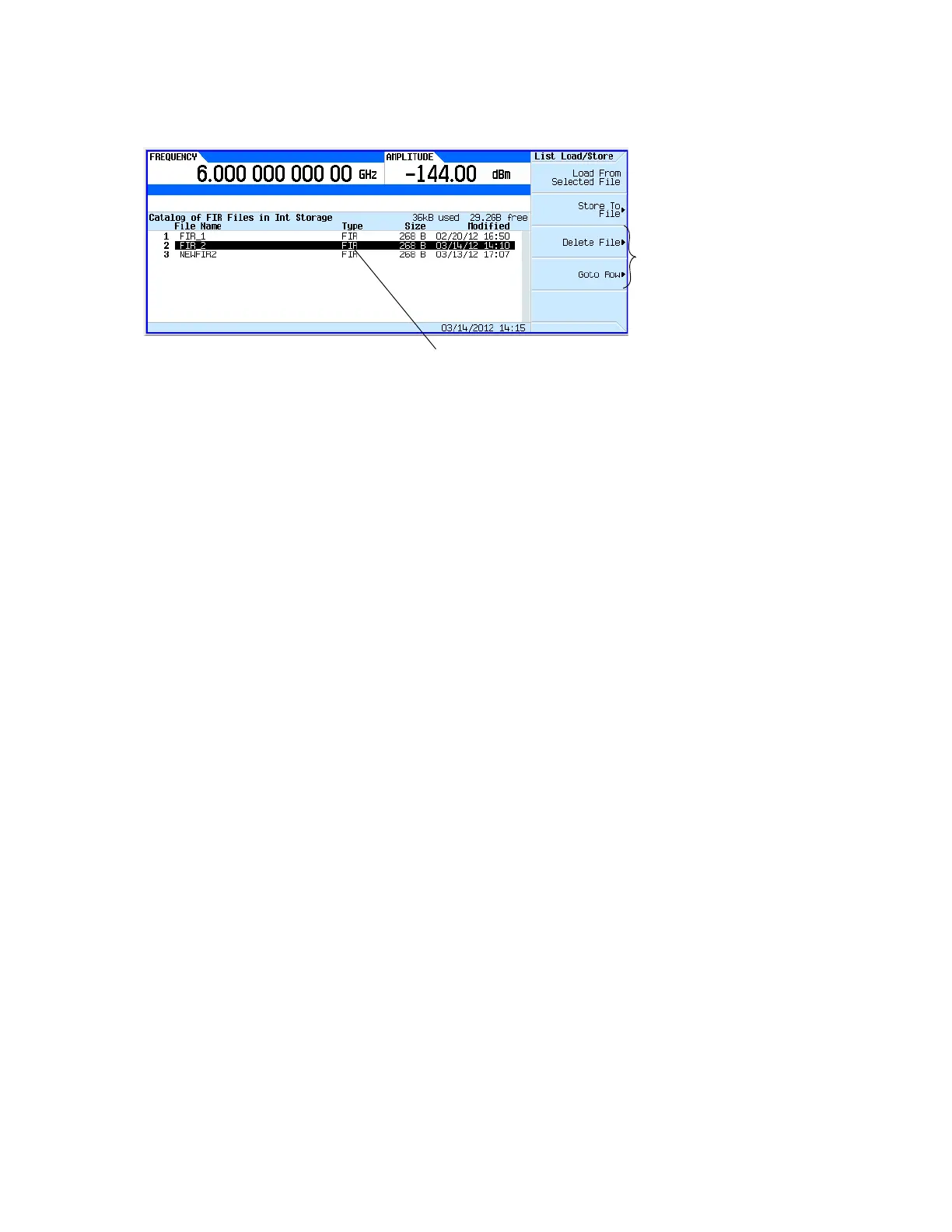

Figure 8-22

Memory is also shared by instrument state files and list sweep files.

This filter can now be used to customize a modulation format or it can be used as a basis for a new

filter design.

Catalog displays FIR files that have

been previously saved by the user.

These keys manage the table

of DMOD files in internal

storage.

For details on each key, use key help as described on page56.
