298 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Using Custom Digital Modulation for N5172B/82B with Option 431 and 653/655/656/657

Using Finite Impulse Response (FIR) Filters with Custom Modulation

Figure 9-37

Memory is also shared by instrument state files and list sweep files.

This filter can now be used to customize a modulation format or it can be used as a basis for a new

filter design.

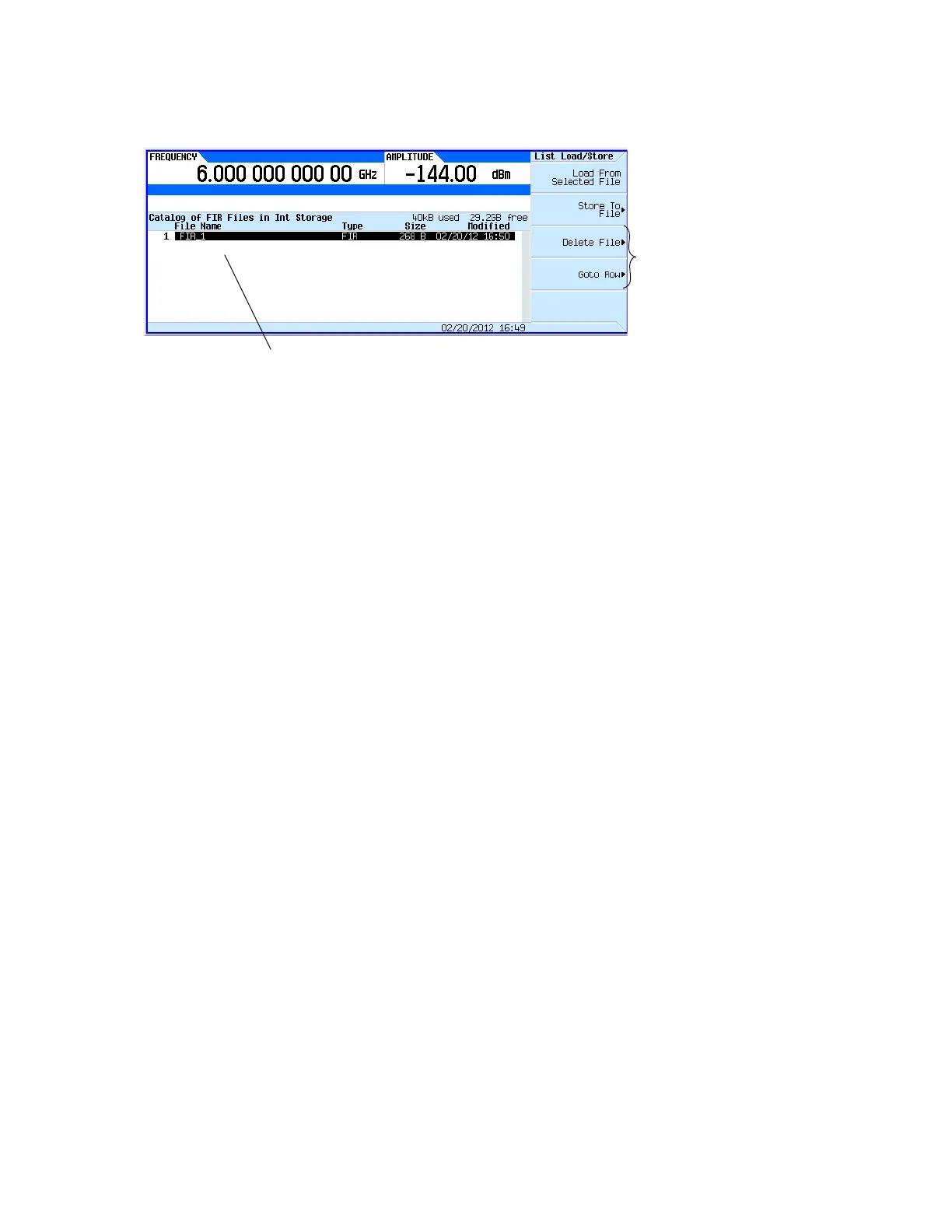

Catalog displays FIR files that have

been previously saved by the user.

These keys manage the table of DMOD

files in internal storage.

For details on each key, use key help as described on page56.

Default Chapter5
