User’s Guide
14 Using Avionics VOR/ILS Softkeys
for N5171B/72B and N5181B/82B with Option 302
This chapter describes Avionics softkeys used by Keysight N5171B/72B EXG
and N5181B/82B MXG X-Series signal generators with Option 302, avionics
license, during either VOR [VHF Omnidirectional Ranging] or ILS [Instrument
Landing System] aircraft navigation receiver test. Avionics is a term used to
describe the electronic instrumentation on aircraft.
Before using the information in this chapter, you should be familiar with the
basic operation of the signal generator. If you are not comfortable with
functions such as setting the power level and frequency, refer to Chapter 4,
“Front Panel Operation for All Models”, on page 55 and familiarize yourself
with the information in that chapter.
Use the Aux Fctn [Auxiliary Functions] key to access the Avionics softkeys.

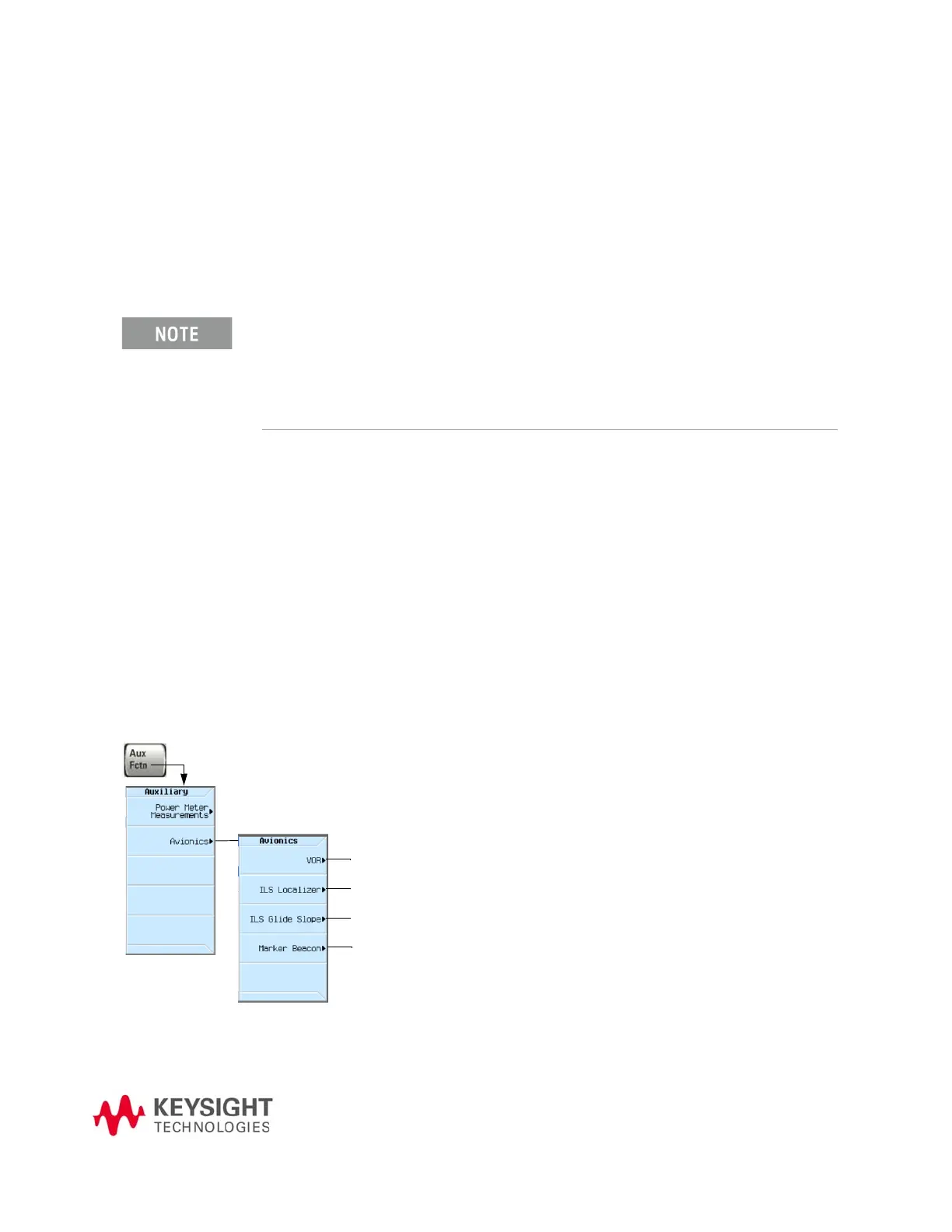

Figure 14-1 Avionics Softkeys
Option 302, avionics license, is available only on Keysight N5171B/72B EXG
and N5181B/82B MXG X-Series signal generators with
serial numbers ≥ MY/SG/US5620xxxx.
EXG/MXG signal generators with serial numbers prior to MY/SG/US5620xxxx
require a return to Keysight Service Center for installation of Option 302.
Using ILS Glide Slope Softkeys on page 375
Using ILS Localizer Softkeys on page 360
Using VOR [VHF Omnidirectional Range] Softkeys on page 342
Using ILS Marker Beacon Softkeys on page 390
