Keysight EXG and MXG X-Series Signal Generators User’s Guide 343

Using Avionics VOR/ILS Softkeys for N5171B/72B and N5181B/82B with Option 302

Using VOR [VHF Omnidirectional Range] Softkeys

When using a Keysight N5171B/72B EXG or N5181B/82B MXG X-Series signal

generator with Option 302 avionics license to simulate VOR signals, the

30 Hz reference signal (REF Freq) is placed on a sub-carrier of 9960 Hz

(SubCarrier Freq) using frequency modulation with a peak deviation set to

480 Hz (REF Deviation). This frequency modulated sub-carrier is then

amplitude modulated onto one of the VOR carriers (108.00 to 117.95 MHz).

This makes the reference signal essentially an FM/AM multiplex signal.

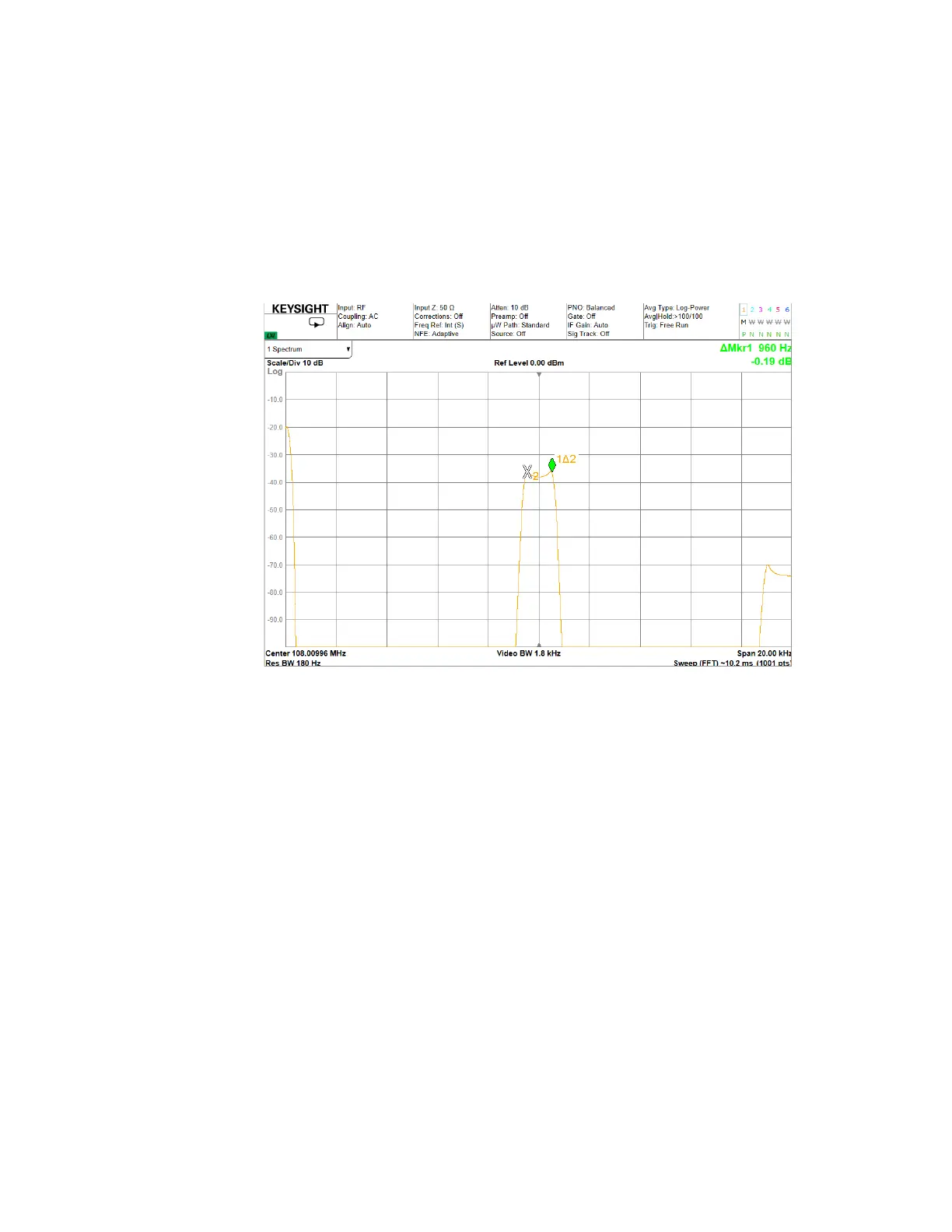

Figure 14-3 Example of 9960 Hz SubCarrier Freq with 480 Hz REF Deviation
