362 Keysight EXG and MXG X-Series Signal Generators User’s Guide

Using Avionics VOR/ILS Softkeys for N5171B/72B and N5181B/82B with Option 302

Using ILS Localizer Softkeys

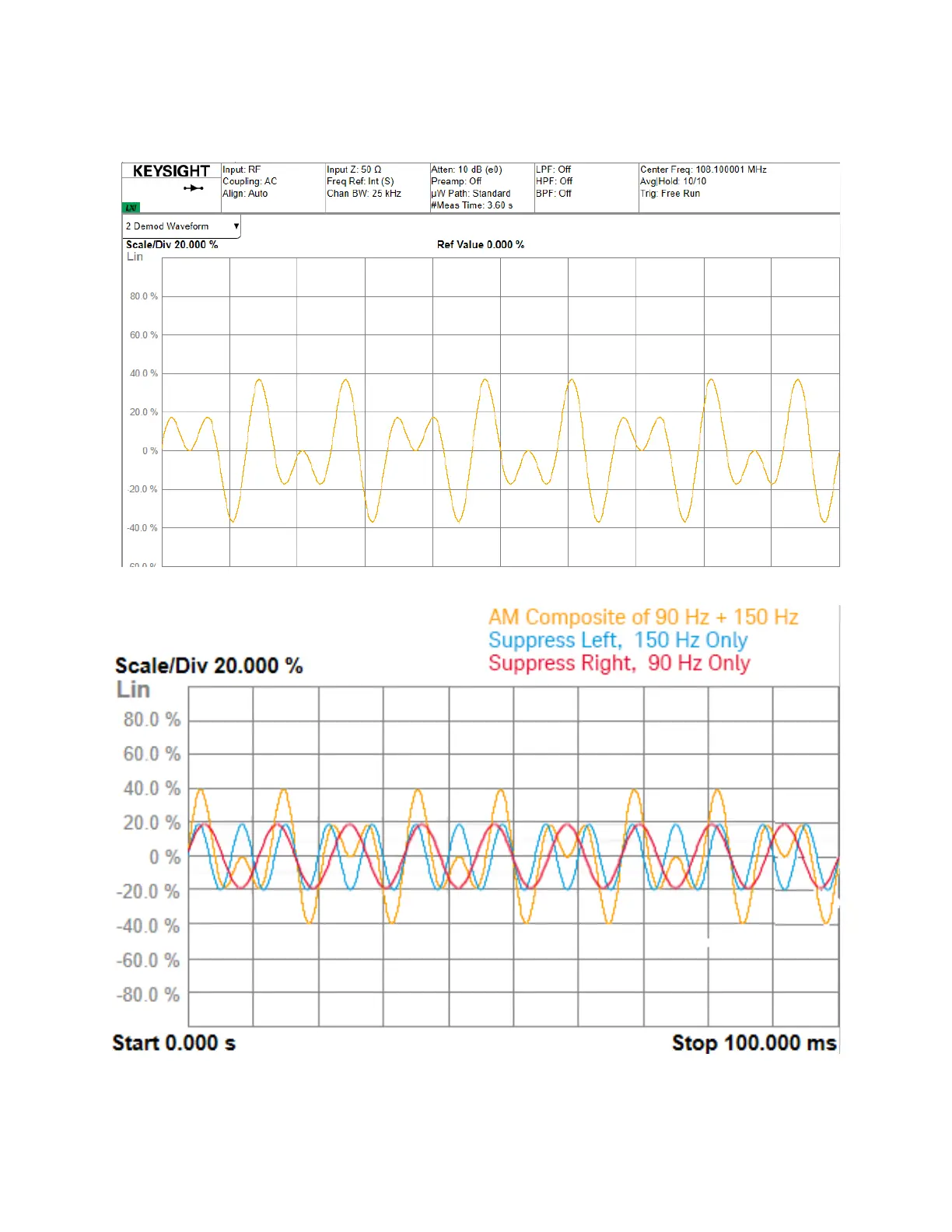

Figure 14-11 ILS Localizer 108.1 MHz (1), AM Composite Signal: 90 Hz (2), 150 Hz (3)

Figure 14-12 ILS Localizer 108.1 MHz (1) w/ AM Composite Signal w/ 90 Hz (2), 150 Hz (3)
