Keysight EXG and MXG X-Series Signal Generators User’s Guide 365

Using Avionics VOR/ILS Softkeys for N5171B/72B and N5181B/82B with Option 302

Using ILS Localizer Softkeys

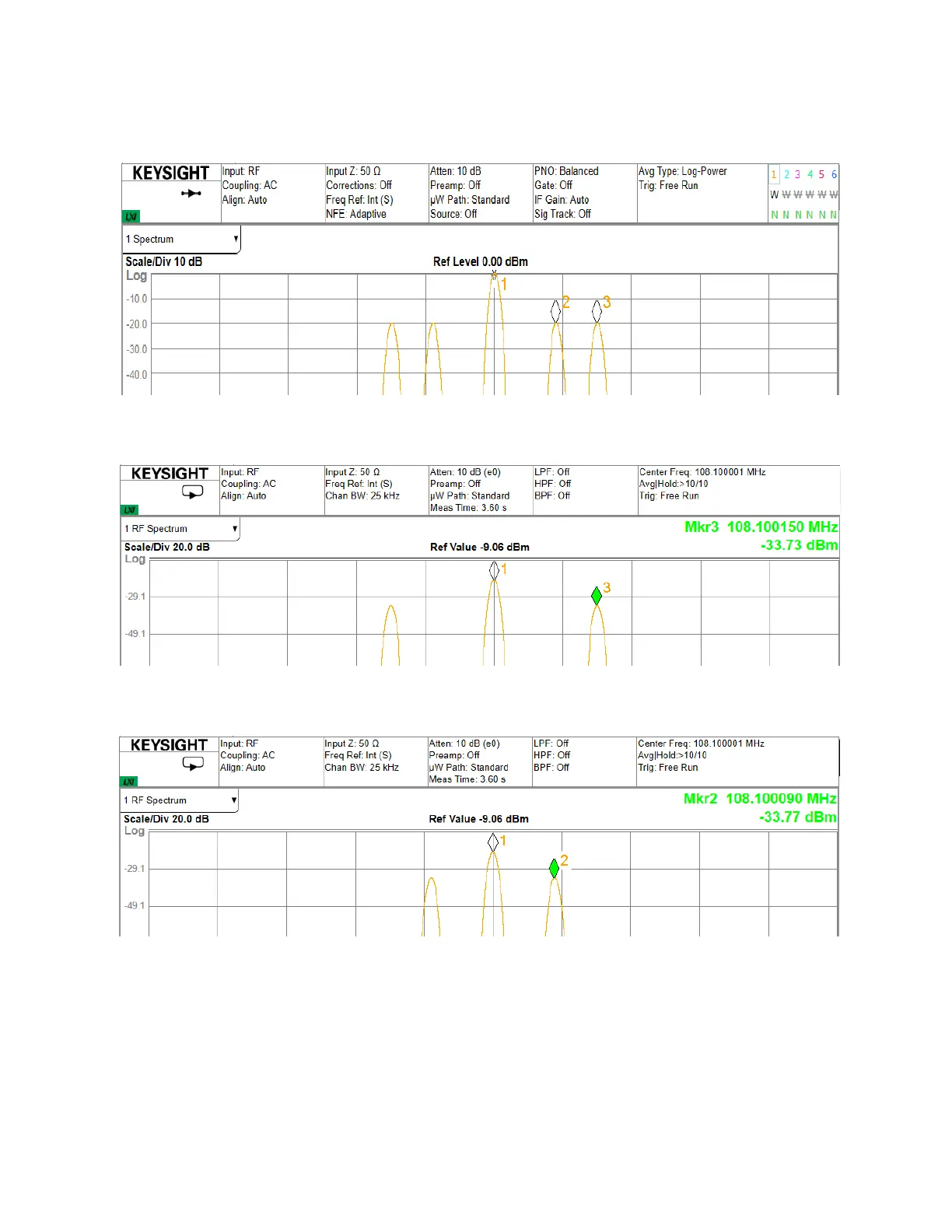

Figure 14-14 ILS Localizer 108.1 MHz (1) w/ AM 40% SDM Applied: 90 Hz (2), 150 Hz (3)

Figure 14-15 ILS Localizer 108.1 MHz (1) with Suppress Left and AM 150 Hz On (3)

Figure 14-16 ILS Localizer 108.1 MHz (1) with AM 90 Hz On (2) and Suppress Right
