Keysight B2980B Series User Manual

Keysight B2980B User’s Guide, Edition 1 125
How to Perform Measurement
Temperature and Humidity Measurement

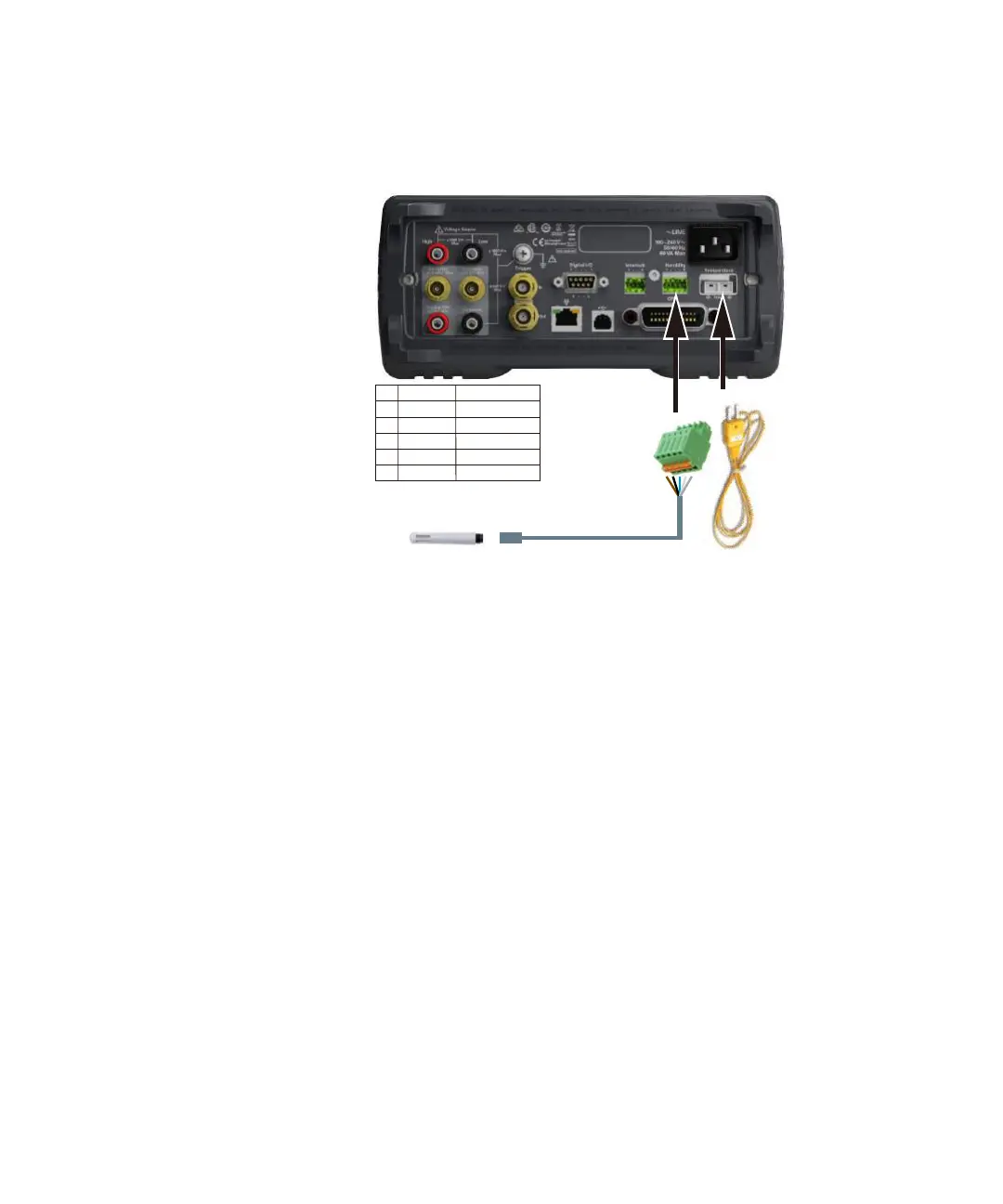

Figure 3-18 Temperature and Humidity Measurement Connection
To enable or
disable
measurement
1. Press the System Menu > Display > Pref. ... function keys.
The Display Preference dialog box appears.
2. Set the Temperature field as follows.
ON: Enables temperature measurement (factory default setting)
OFF: Disables temperature measurement
3. Set the Temperature ON/OFF “at” field as follows.
THERMOCOUPLE: Uses thermocouple for temperature measurement (factory
default setting)
HUMIDITY SENSOR: Uses humidity sensor for temperature measurement
4. Set the Humidity field as follows.
ON: Enables humidity measurement (factory default setting)
OFF: Disables humidity measurement
1
Pin
1
2
3
4
5
Signal
DCOM
CLOCK
DATA
+5 V
DCOM
Coating color
Brown
Black
Blue
White
Gray (shield)
5
Connector head,
5-pin plug
Humidity sensor
Connection cable
Thermocouple
