Function Details
Trigger System

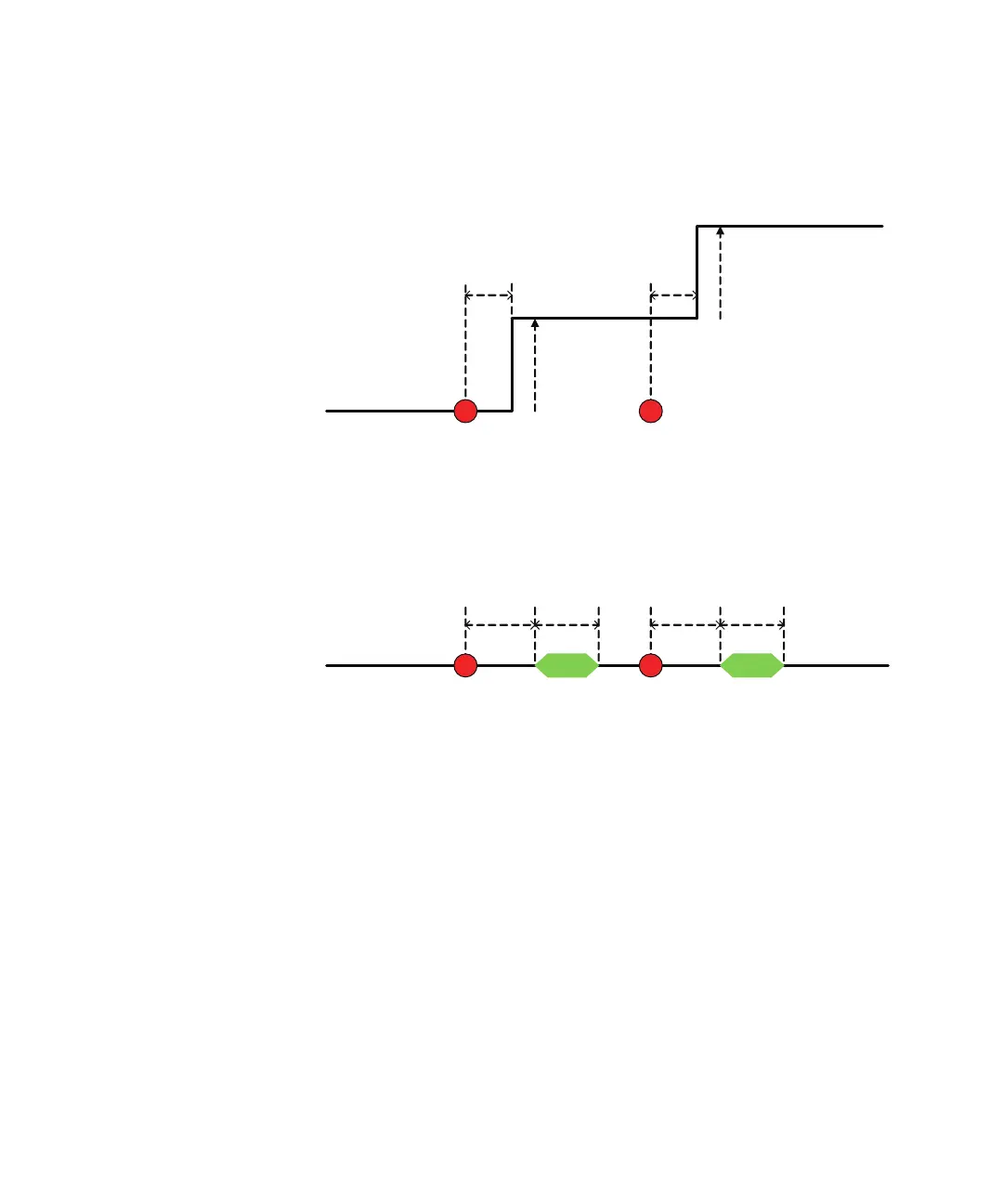

Figure 5-11 Transient and Acquire Device Actions
Trigger Output
B2980 can output trigger at the timing of Trigger output shown in Figure 5-10.
The trigger output terminal can be selected from the following terminals.
• Internal bus, INT1, INT2
• LAN port
• Digital I/O pin, EXT1, EXT2, EXT3, EXT4, EXT5, EXT6, EXT7
• Trigger Output connector, TOUT
The trigger output can be set by using “Trigger Configuration Dialog Box” on
page 183. The trigger output timing and the setup parameters are shown in Table
5-7.
Transient device action
- for voltage output -
Source delay
Acquire device action
- for measurement -
Trigger
Step value
Step value
Measure Measure
Source delay
Measure delay Measure delay
Trigger
Trigger
Trigger
