Function Details
Trigger System

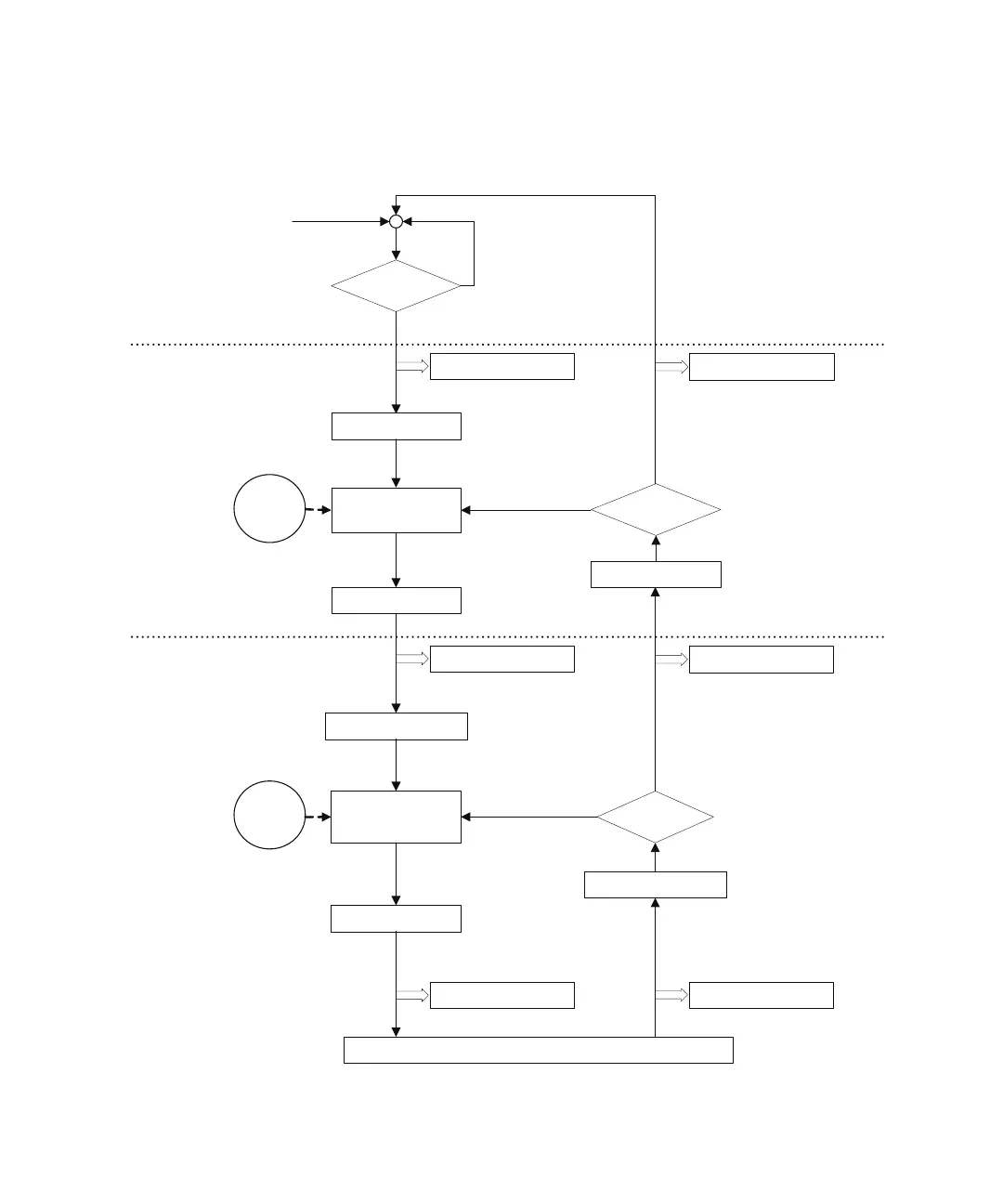

Figure 5-10 B2980 Trigger System
Initiated ?
No
Yes
Idle
ARM Layer
TRIGGER Layer
Trigger output
Event
detector
TRIGGER
event
TRIGGER delay
Device action (Transient or Acquire )
Trigger output
Last count ?
1 to 100000
No
Trigger output
Trigger output
Yes
TRIGGER count = 0
TRIGGER count + 1
Last count ?
No
Yes
ARM count + 1
Event
detector
ARM
event
ARM delay
ARM count = 0
Trigger output
Trigger output
before ARM
after ARM
before Device action after Device action
before TRIGGER after TRIGGER
Trigger key
Auto key
1 to 100000
INT1-2
EXT1-7
LAN
TOUT
INF. (infinity)
AUTO
BUS
TIMER
INT 1-2
EXT 1-7
LAN
TIN
INF. (infinity)
AUTO
BUS
TIMER
INT 1-2
EXT 1-7
LAN
TIN
INT1-2
EXT1-7
LAN
TOUT
INT1-2
EXT1-7
LAN
TOUT
INT1-2
EXT1-7
LAN
TOUT
INT1-2
EXT1-7
LAN
TOUT
INT1-2
EXT1-7
LAN
TOUT
