Keysight B2980B User’s Guide, Edition 1 43
Introduction

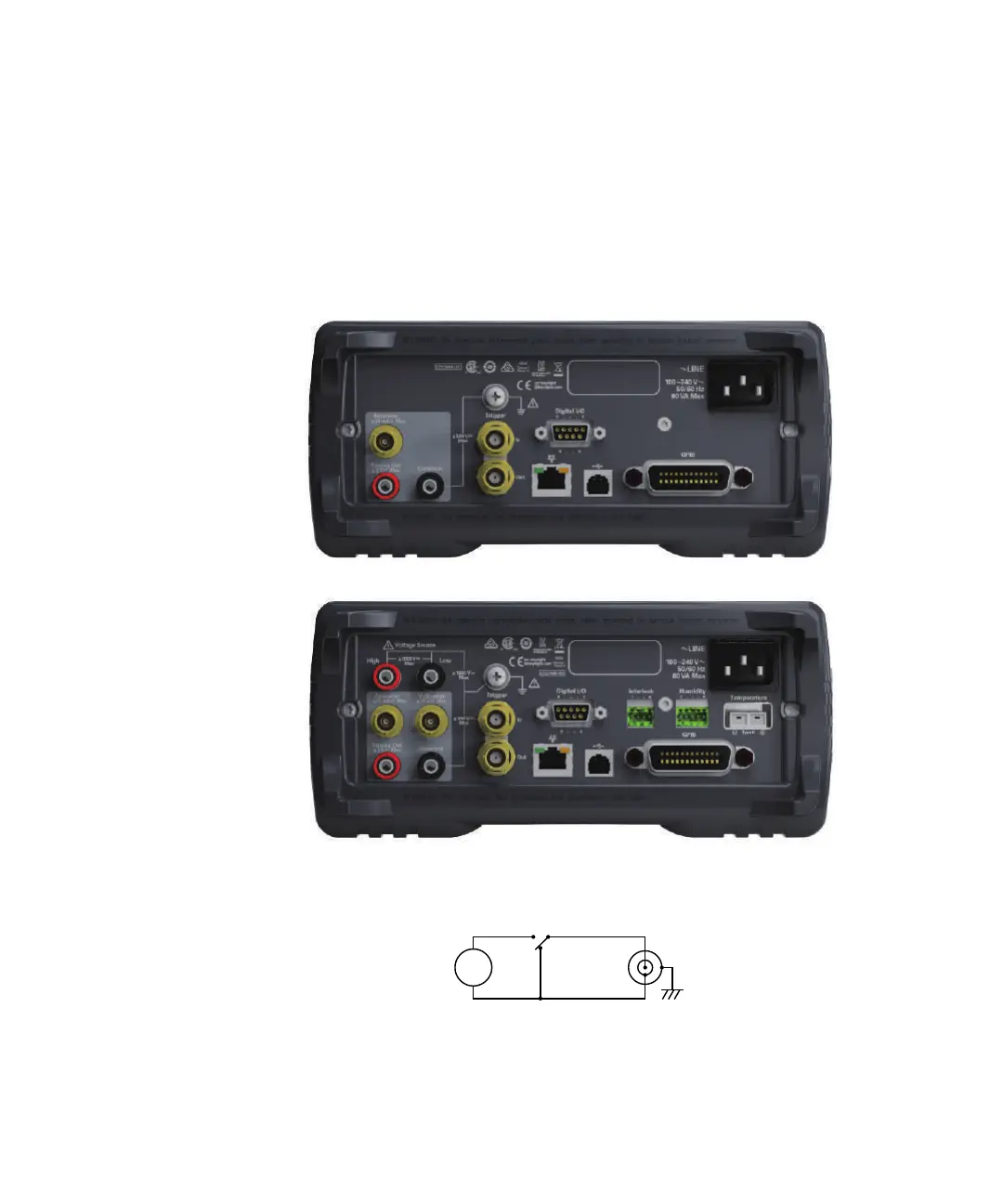

Rear View
Rear View
This section describes the rear view of Keysight B2980 series.
• Ammeter input connector
Triaxial connector for current measurement.
Ammeter ON or OFF can be controlled by the On/Off switch.
B2981B/B2983B
B2985B/B2987B
A
InputOn
Common
