Introduction

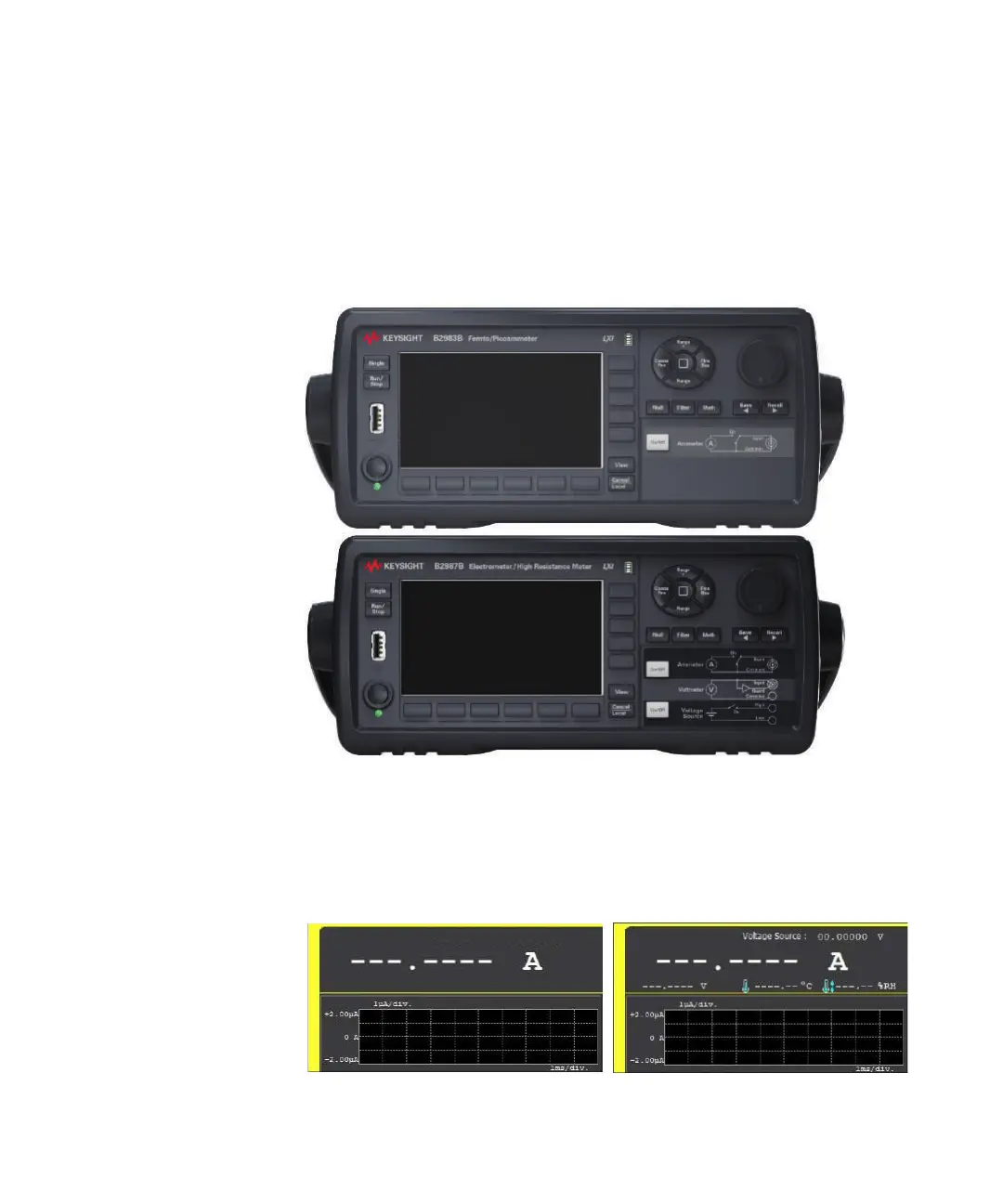

Front View
Front View
This section describes the front view of Keysight B2980 series.
• Standby switch
Turns the instrument on or off. During the power is on, the LED below the
switch turns green. After booting up normally, the front panel LCD displays the
image as shown below. For the B2983B/B2987B, the LED turns orange during
the switch is off and the battery charging is in progress.
B2981B/B2983B B2985B/B2987B
