Voltage Source (B2985B/B2987B)
Voltage Source (B2985B/B2987B)
Voltage source on B2985B/B2987B can apply not only a constant voltage but also
a staircase voltage, a list sweep voltage, and a square waveform voltage.
Staircase Sweep Output
Voltage source supports two shapes of staircase sweep output, as shown in Figure
5-4. The B2985B/B2987B can perform the measurement for each sweep step
while the voltage source performs the sweep output, as shown in Figures Figures
5-2 and 5-4.

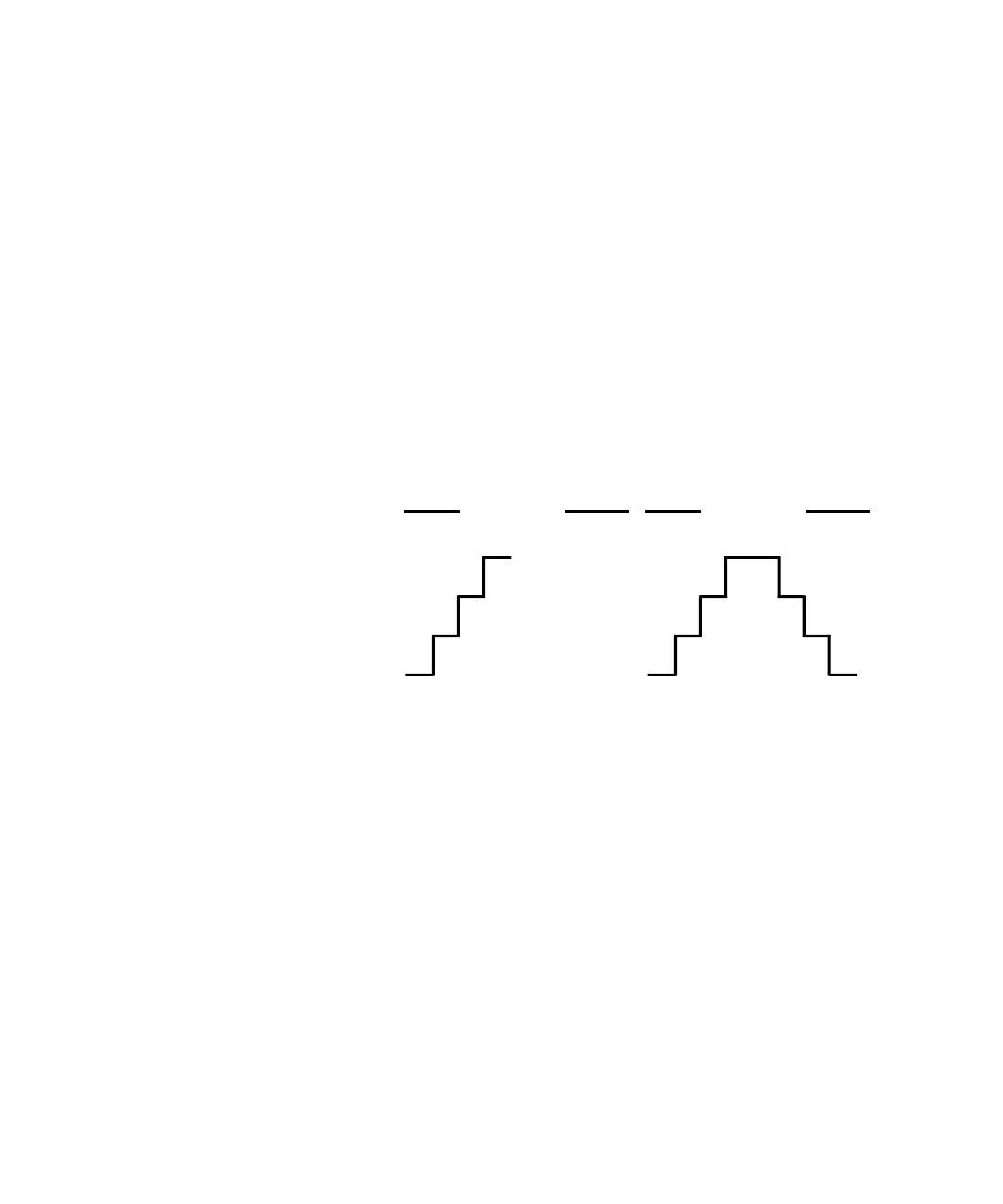

Figure 5-4 Staircase Sweep Outputs
Remember the following points when setting the staircase sweep output.
• To set the staircase sweep source, see “Source Function Sub-panel
(B2985B/B2987B)” on page 153.
• To set the ranging mode of the sweep source, see “Sweep Dialog Box” on
page 174.
• To set the sweep direction and the output condition after sweep, see “Sweep
Dialog Box” on page 174.
Single Sweep
Double Sweep
Linear Sweep
DC output
DC output
