Function Details
Limit Test

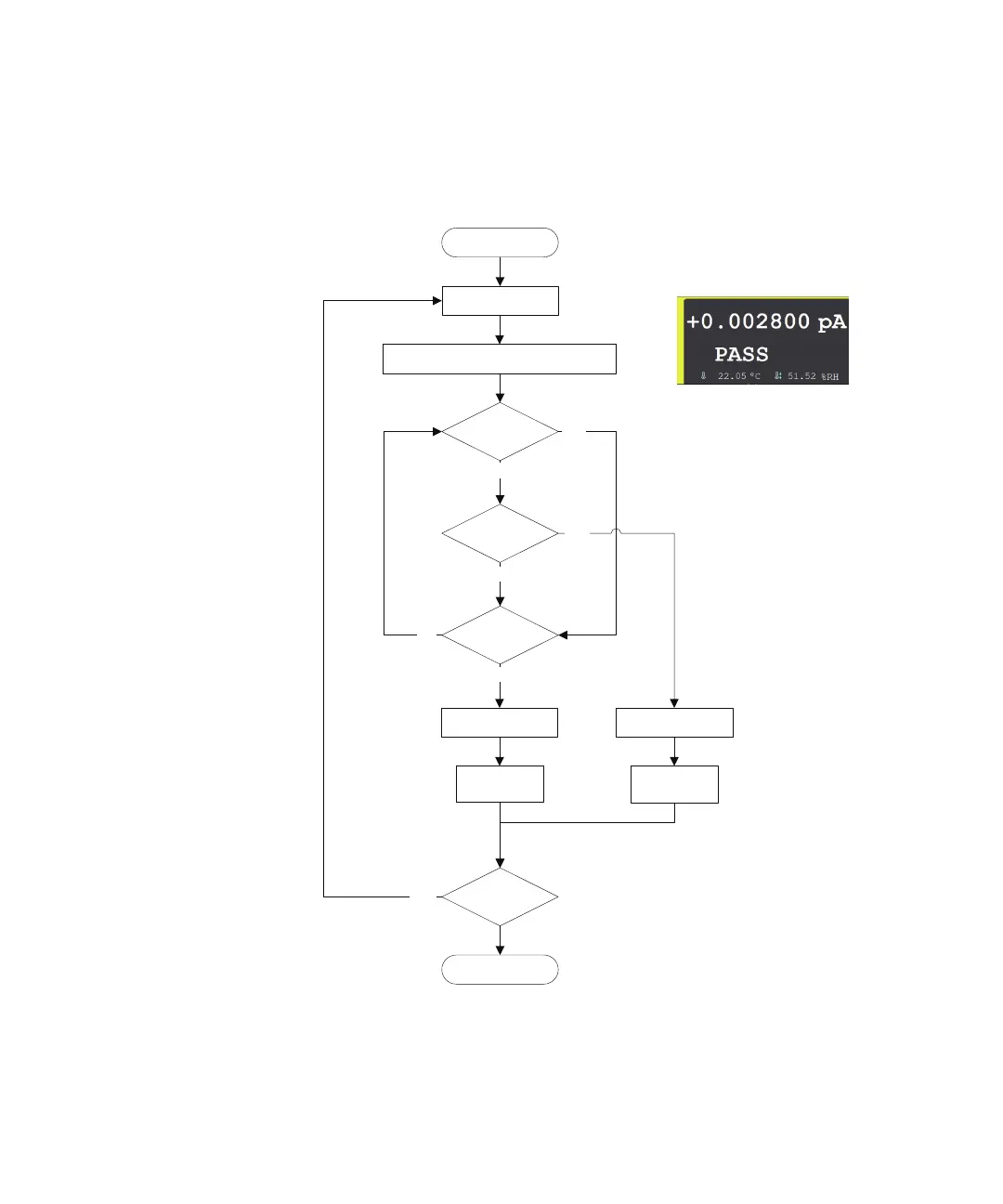

Figure 5-8 Limit Test Flowchart Example for Sorting Mode
START
Wait for SOT
Source and Sense
Perform
Limit X ?
Last Limit ?
Output
Fail Pattern
Another
Device ?
END
Yes
No
Yes
No
Yes
Display “PASS”
Output
Pass Pattern
Display “FAIL”
Pass ?
Yes
SORTING MODE
No
Meter view
Display example of PASS status
when Zoom is ON:
