Recalling the Panel Memory and Sequence Program
The PM and STB signals are processed at the times shown below. Check that the READY
signal is low level.
Table 7-2 shows the relationship between the PM0 to PM7 signals and the panel memory
number or program number that is actually recalled.

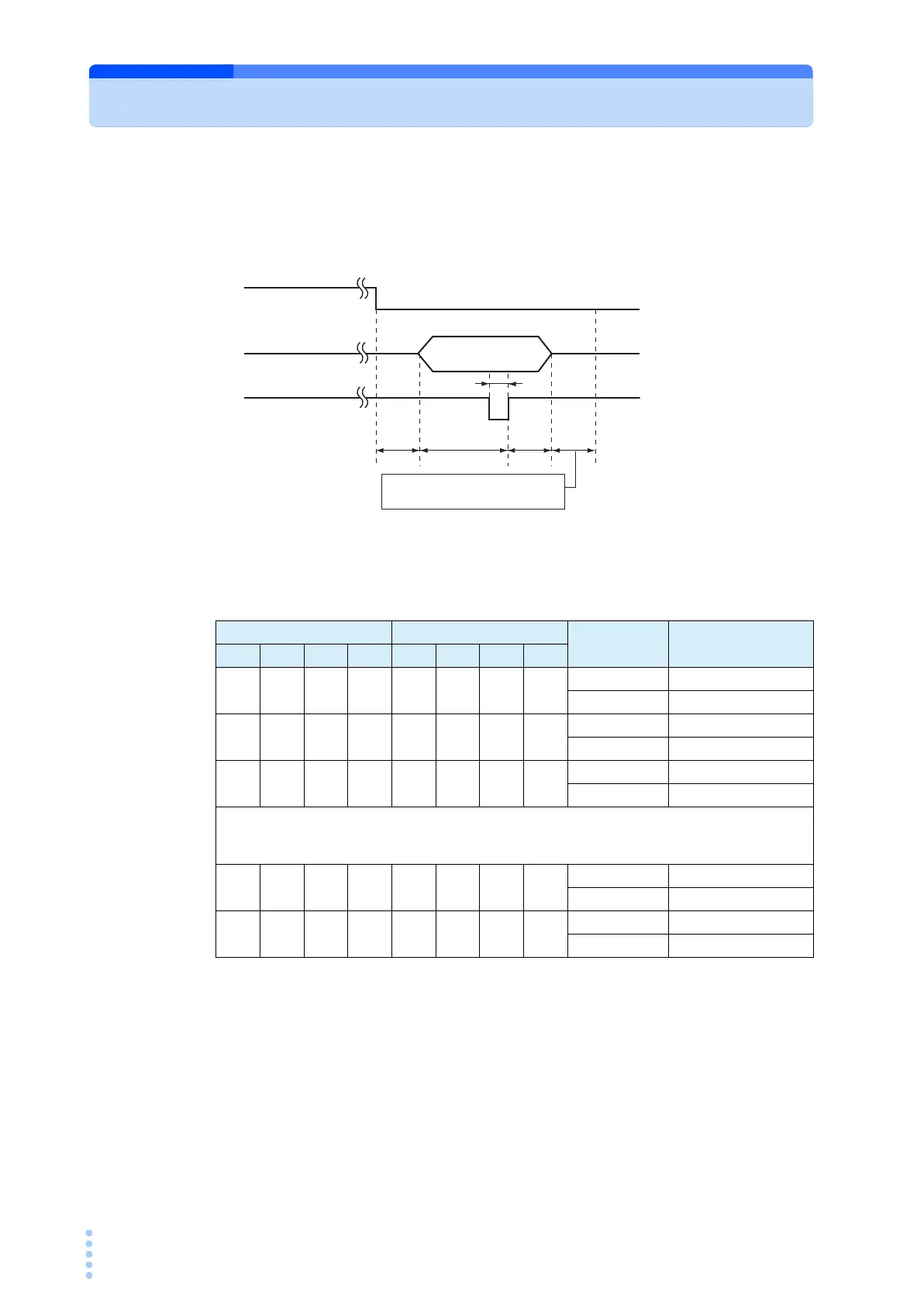

Fig. 7-3 Strobe signal
Table 7-2 Panel memory and program selection
READY (OUT)
PM0-PM7 (IN)
STB (IN)
10 ms or more
10 ms or more 10 ms or more
5 ms or more
An interval of at least 10 ms is
needed for the next signal input.
MSD LSD
MANU/AUTO Recalled data
PM7 PM6 PM5 PM4 PM3 PM2 PM1 PM0
HHHHHHHH
H Panel memory 00
L Program 00
HHHHHHHL
H Panel memory 01
L Program 01
HHHHHHLH
H Panel memory 02
L Program 02
•
•
•
LHHLLHHH
H Panel memory 98
L Program 98
LHHLLHHL
H Panel memory 99
L Program 99
