DANGER lamp
• The DANGER lamp illuminates while the test is in progress.
If the DANGER lamp is illuminated, the voltage applied to
AC LINE IN (EUT) is output to the AC LINE OUT terminal.
Measurement category
• Measurement terminals A and B comply with IEC Standard
Measurement Category II.
Measurement Category II (CAT II) is used to measure the
primary circuit of equipment (household electric appliances,
portable tools, etc.) that is connected directly to a low-volt-
age installation such as an outlet.
Ground terminal
• In case of measuring the touch current in the condition of
“Earth line disconnected status” of the EUT, a hazardous
voltage may apply to the ground terminal. Do not touch the
ground terminal while the test is in progress.
N
1500VA
MAX
L
G
DANGER
LEAKAGE CURRENT
AC LINE OUT
LINE
ON
EUT
AB
CAT II
REMOTE

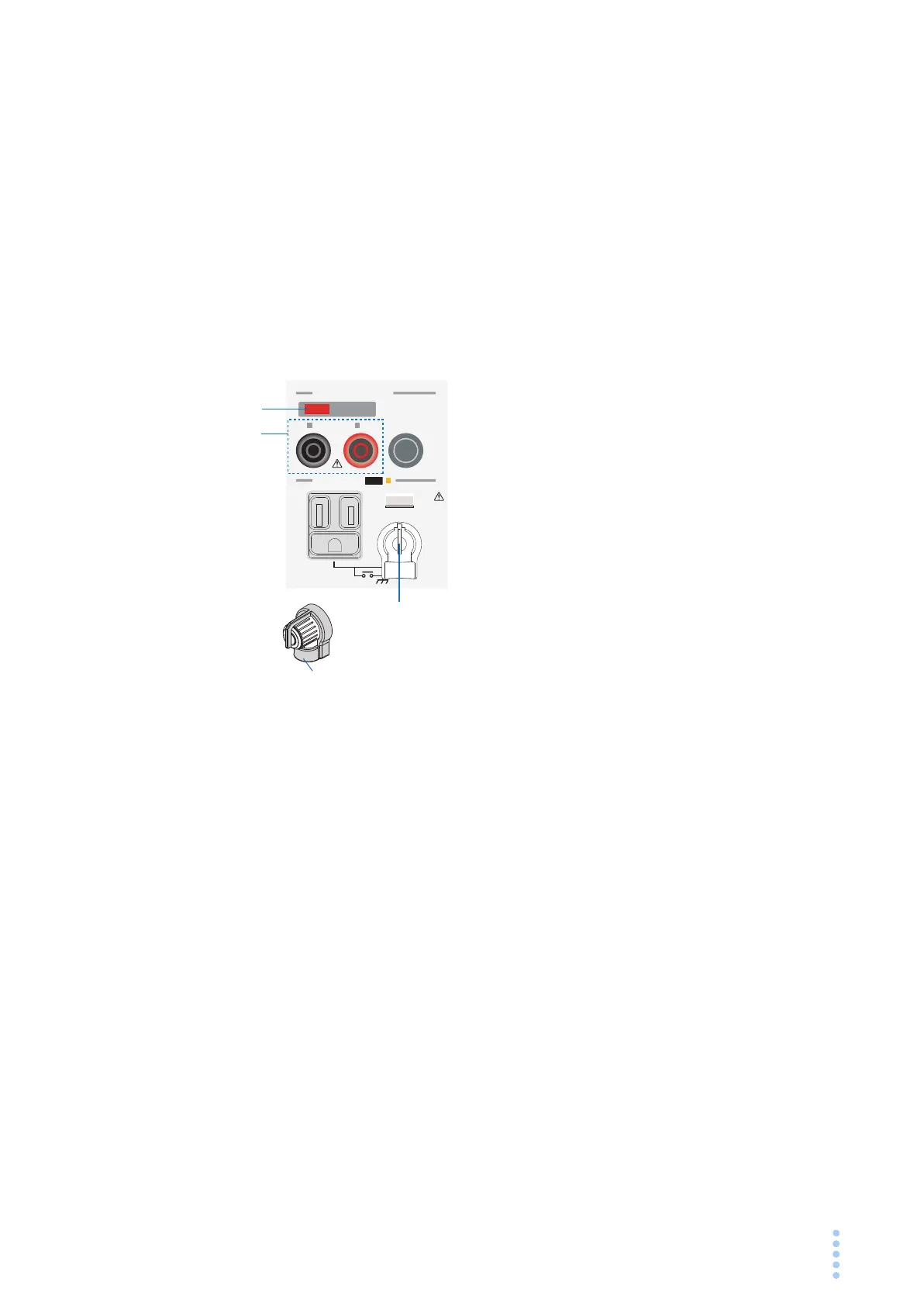

DANGER lamp
Measurement terminal (CAT II)
Ground
terminal
Rated voltage
Between terminals A and B: 250 Vac
Between the terminal and
the chassis: 250 Vac
Be sure to use the ground
terminal with the binding
post cover.
