Kikusui TOS3200 - Connecting the Power Cord

TOS3200 27
2
Installation and Preparation
Connecting the Power Cord
This product is an equipment of IEC Overvoltage Category II (energy-consuming equipment
supplied from the fixed installation).

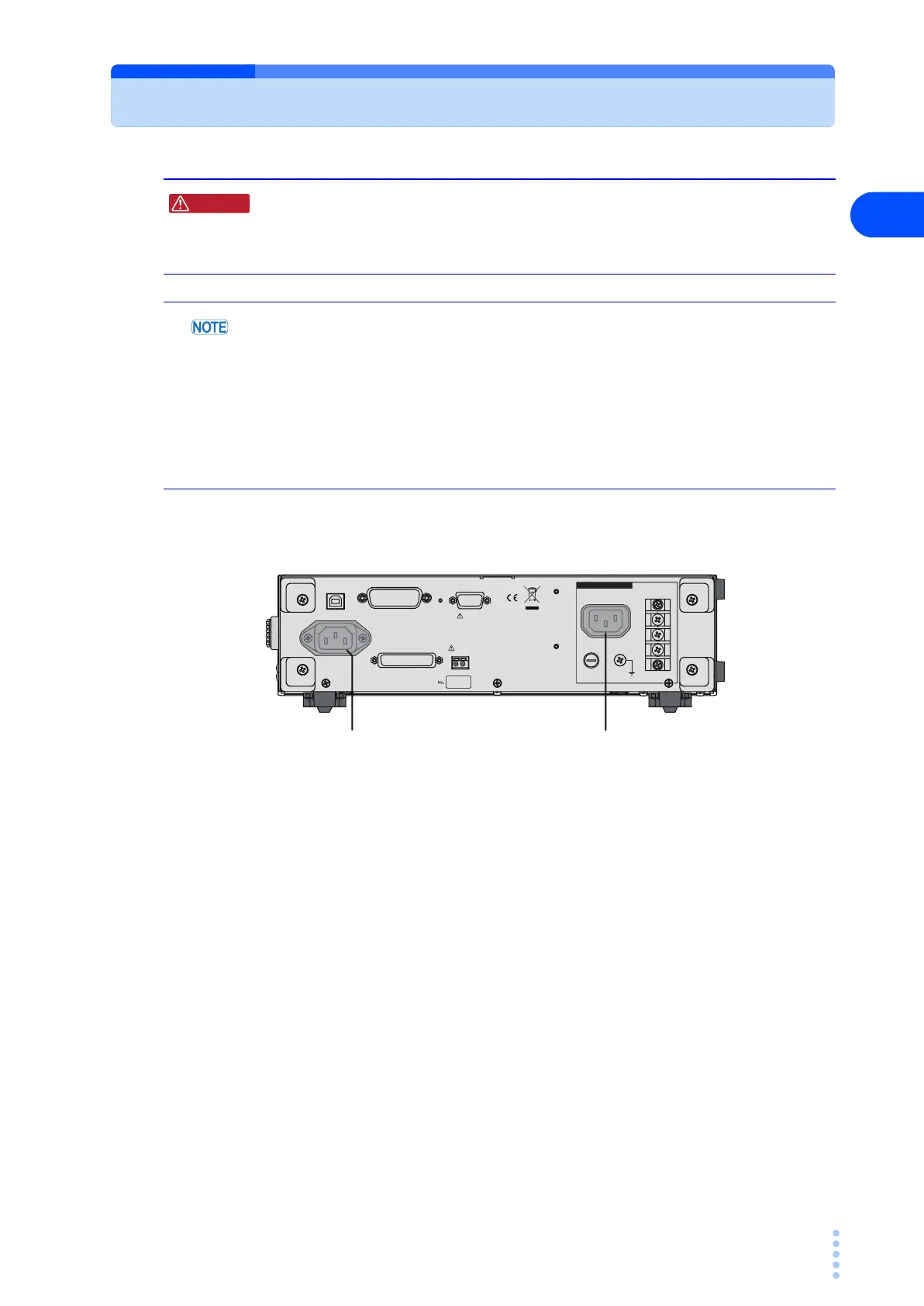

Fig. 2-3 AC inlet
WARNING
• This product is an IEC Safety Class I equipment (equipment with a protective con-
ductor terminal). To prevent electric shock, be sure to ground (earth) the unit.
• This product is grounded through the ground wire of the power cord. Be sure to con-
nect the power plug to an outlet with an appropriate earth ground.
• Use the supplied power cord to connect to the AC line.
If the supplied power cord cannot be used due to the rated voltage or the plug shape, have
the cord replaced with an appropriate power cord of length 3 m or less by a qualified engi-
neer. If obtaining a power cord is difficult, consult your Kikusui agent or distributor.
• In an emergency, the power cord with a plug may be used to disconnect the product from
the AC line in an emergency. Connect the plug to an easily accessible power outlet so that
the plug can be removed from the outlet at any time. Be sure to allow enough space around
the power outlet.
• Do not use the supplied power cord on other instruments.
AC LINE
SH1 AH1 T6 TE0 L4 LE0 SR1 RL1 PP0 DC1 DT0 C0 E1
GPIB
USB
RS232C
SIGNAL I/
O
KIKUSUI ELECTRONICS CORP.
MADE IN JAPAN
SIGCOM
CAL
85
-
250V〜
50/60Hz
MAX 70VA
本製品のカバーは絶対に取り外してはいけません。
感電事故防止のため、入力電源コードのGND線を
確実に接地してご使用ください。
火災事故防止のため、定められた定格、特性の
ヒューズをご使用ください｡
TO AVOID ELECTRIC SHOCK, THE POWER CORD PROTECTIVE
GROUNDING CONDUCTOR MUST BE CONNECTED TO GROUND.
WITH 250V FUSE OF THE SPECIFIED TYPE AND RATING.
FOR CONTINUED FIRE PROTECTION, REPLACE FUSE ONLY
DO NOT REMOVE COVERS, REFER SERVICING TO QUALIFIED
PERSONNEL.
WARNING
警告
AC LINE IN
85
-
250V〜
50
/ 60Hz
AC LINE OUT
MAX 1500VA
L
N
G
EUT
FOR
OPTION
FUSE
250
V
15A
(
T
)
Power input for the TOS3200
Power input for the EUT
