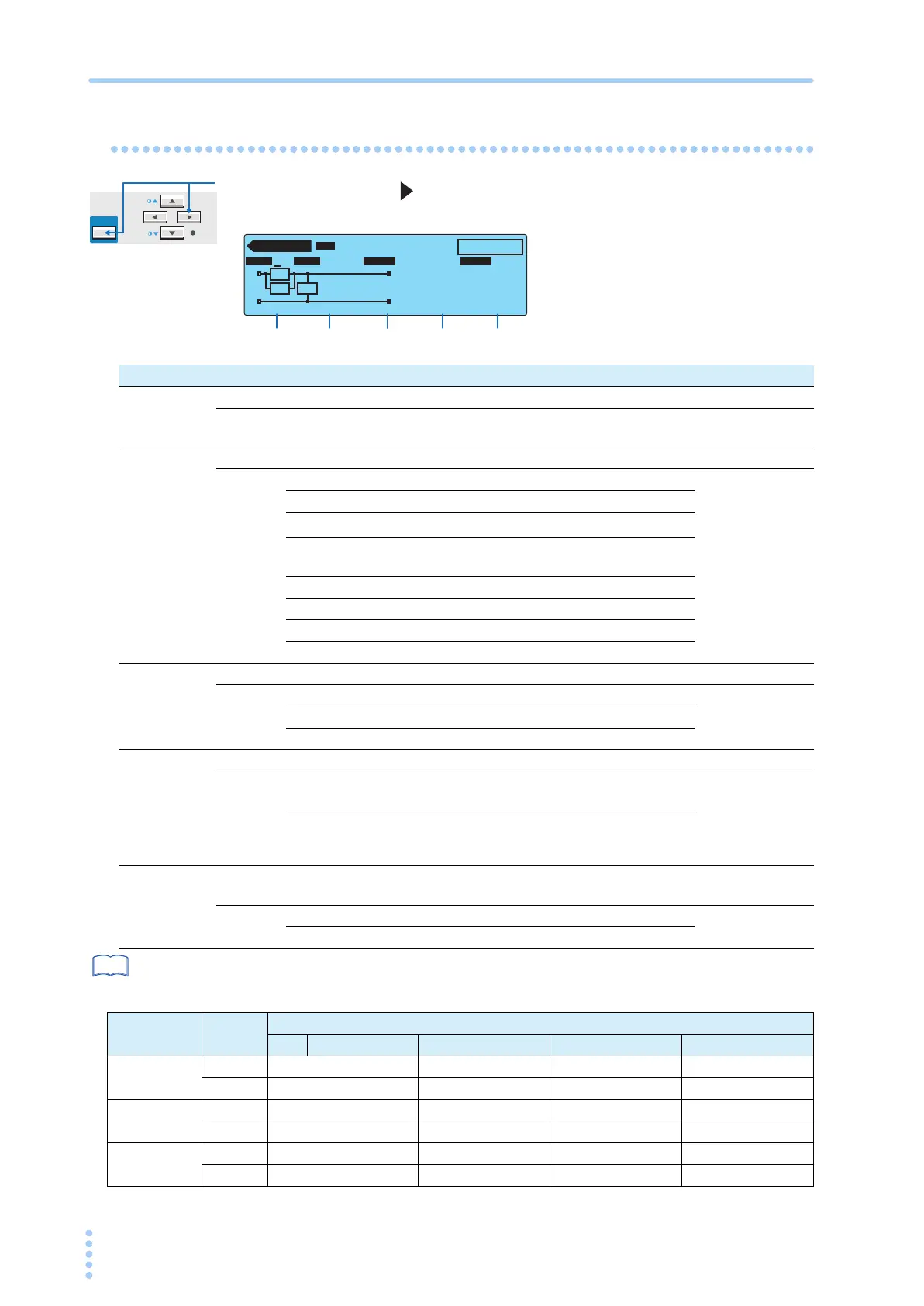

Creating Sequence Programs
Setup Items of AUTO2/2 (Common to All Steps)
Press the NEXT (SHIFT+ ) key to display the program edit screen 2/2 (AUTO2/2).
On AUTO2/2, set the items common to all steps.
p. 176
*1 Measures voltage U1 between the measurement network reference points.
Table 6-2 Determination of the fixed range
SHIFT
PREV NEXT
AUTO 2 / 2
PRG
00: -- UNTITLED --
EDIT
Rs: 1.5 kΩ Cs: 0.22 µF
Rb: 0.5 kΩ
RMS AUTO
NTWK MODE RANGE
OFF
ABORT
TITLE NTWK MODE RANGE ABORT
A
A
B
Rs
Cs Rb
11 12
13 15 14
Item Description Panel operation
11 TITLE Selects the program name. F1 key
Name
Up to 12 of the characters shown in Table 3-1 on page 39 can be
entered.
Rotary knob
12 NTWK Selects the measurement network. F2 key
A (For IEC 60990) (1.5 kΩ // 0.22 μF) + 500 Ω
SHIFT+F2 key
B (For IEC 60990) (1.5 kΩ // 0.22 μF) + 500 Ω // (10 kΩ + 22 nF)
B1
*1
(For IEC 60065) (1.5 kΩ // 0.22 μF) + 500 Ω // (10 kΩ + 22 nF)
C
(For IEC 60990)
(1.5 kΩ // 0.22 μF) + 500 Ω // (10 kΩ + (20 kΩ + 6.2 nF) // 9.1 nF)
D1 kΩ
E1 kΩ // (10 kΩ + 11.225 nF + 579 Ω)
F 1.5 kΩ //0.15 μF
G2 kΩ
13 MODE Selects the current measurement mode. F3 key
RMS RMS measurement
SHIFT+F3 keyDC DC measurement
PEAK Peak measurement
14 RANGE Selects the measurement range. F4 key
AUTO
Automatically switches the range according to the measured
value.
SHIFT+F4 key
FIX
Fixes the range. The measurement range is determined by the
upper reference, measurement network (NTWK), and current
measurement mode (MODE) settings. See Table 6-2.
15 ABORT
Selects the operation if a FAIL judgment occurs while a program test is in
progress.
F5 key
OFF Executes the next step even if a FAIL judgment occurs.
SHIFT+F5 key
ON Aborts the program test when a FAIL judgment occurs.
SeeSee
Measurement
range
MODE
Upper reference
PCC NTWK A, B, B1, C NTWK D, E NTWK F NTWK G
Range 1
DC, RMS 30 μA to 600 μA 30 μA to 300 μA 30 μA to 200 μA 30 μA to 150 μA
PEAK 50 μA to 850 μA 50 μA to 424 μA 50 μA to 282 μA 50 μA to 212 μA
Range 2
DC, RMS 601 μA to 6.00 mA 301 μA to 3.00 mA 201 μA to 2.00 mA 151 μA to 1.50 mA
PEAK 851 μA to 8.50 mA 425 μA to 4.24 mA 283 μA to 2.82 mA 213 μA to 2.12 mA
Range 3
DC, RMS 6.01 mA to 30.0 mA 3.01 mA to 30.0 mA 2.01 mA to 20.0 mA 1.51 mA to 15.0 mA
PEAK 8.51 mA to 90.0 mA 4.25 mA to 45.0 mA 2.83 mA to 30.0 mA 2.13 mA to 22.5 mA
