Test Lead Check
Test leads are consumables. Periodically check for tears or breaks in the covering.
To purchase accessories or options, contact your Kikusui agent or distributor.
Measurement Check
This function checks the current measurement circuit by running a small current between
measurement terminals A and B. Because this test is performed by shorting two test leads, it
also checks breaks in the test leads. Use this function as a preliminary inspection before
using the TOS3200.
1
Attach an alligator clip to the test leads and connect them to the mea-
surement terminals.
2
Short the two test leads.

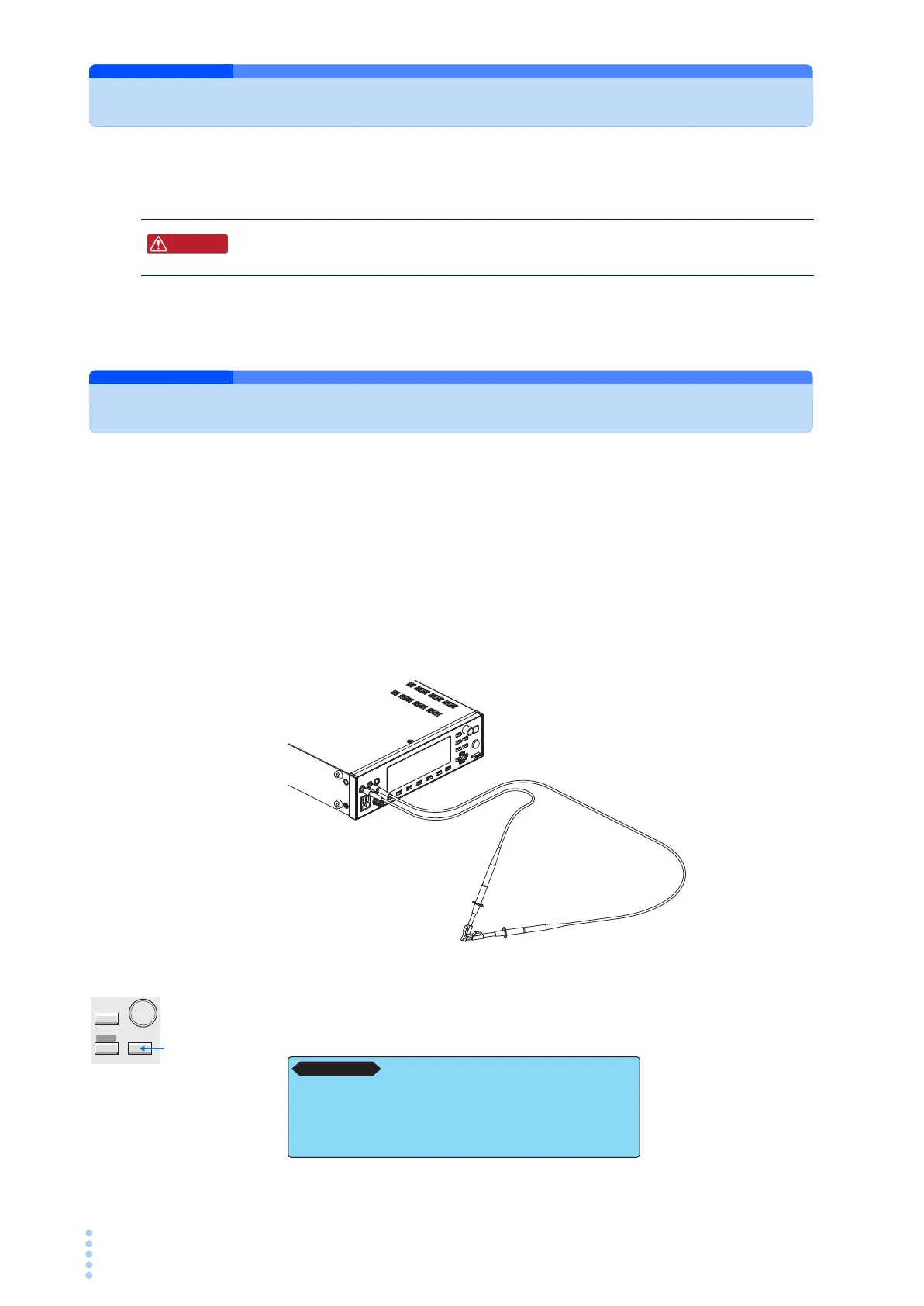

Fig. 9-1 Measurement check connection
3
Press the SYSTEM key to display SYSTEM1/5, and press the <NEXT> (F5)
key to display SYSTEM2/5.
4
Press the CHECK (F3) key.
WARNING
Tears or breaks in the covering can lead to electric shock or fire. If a tear or break is
found, stop using it immediately.
SYSTEM
MANUAL
I / FEDIT
AUTO
< MEASURE CHECK >
Push the CHECK button
SYSTEM2 / 5
To Next Page
