Program Test
Storing the Test Results
You can store up to 50 program test results. The storage function is assigned to a function
key while the judgment result (PASS or FAIL) is displayed.

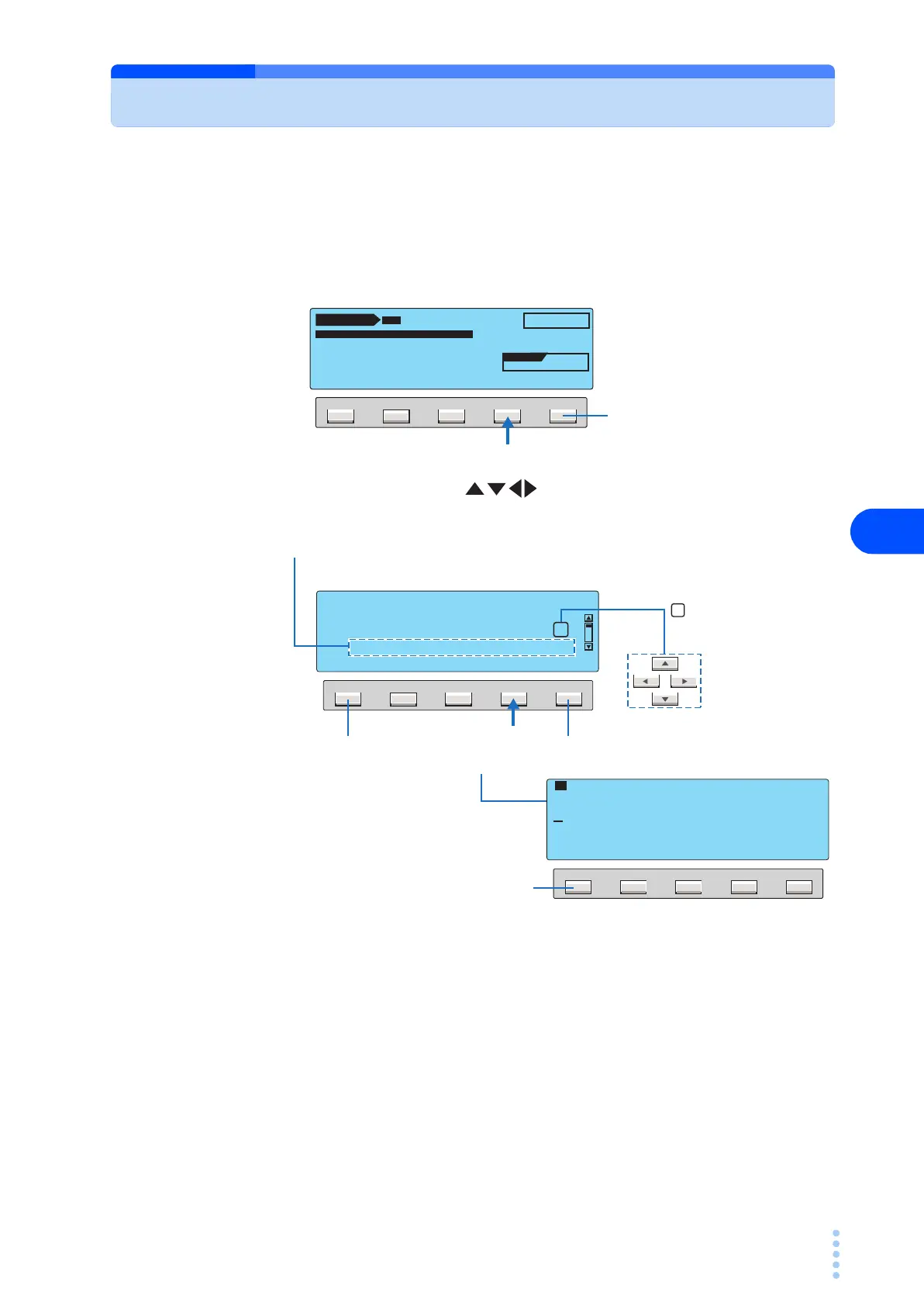

1
Press the Yes (F4) key on the judgment result screen to display the
AUTO TEST DATA screen.
2
Press the arrow keys ( ) to select the desired memory number.
3
Press the SAVE (F4) key.
The saved information is displayed.
Press the DATA (F1) key to check the stored data.
4
Press the EXIT (F5) key.
The data save screen closes, and the TOS3200 changes to the READY status.
F5F4F3F2F1
AUTO 1/2
01 PCC––––––PNRM•NORM––– 1s NTWK: B
–––END
PRG
01:TEST-1
TOTAL: 2
PASS
SAVE? Yes No
30µA
0 s
rms
Does not save the test
results.
Skips to step 4.
LINE 0.0W
0.0V 0.00A
F5F4F3F2F1
F5F4F3F2F1
DATA SAVE EXIT
[AUTO TEST DATA]
No
1 2 3 4 5 6 7 8 9 10
00:−−UNTITLED−− 2006 / 10 / 17 13 : 45
LIST
10 00:––UNTITLED– – 2006/10/17 13:45
NETWORK:A MODE:RMS RANGE:AUTO
FUNC•PRB POL•COND CURR TIMER JUDGE
00 TC•ENCPE––PNRM•NORM–– 0µA– 1s–PASS
01 TC•E
NCPE––PNRM•NORM–– 0µA– 1s–PASS
–– END
EXIT
Displays the test data of the
selected memory number.
You can check the existing data
before overwriting the existing data.
If you select a memory number in which a test result is already saved, the saved
information is displayed.
Program number: Program name year/month/day hour:minute
Aborts the save operation.
Return to the memory
selection screen.
Move the box using the
arrow keys to select the
number.
