Connecting the EUT
4
TC and PCC Tests

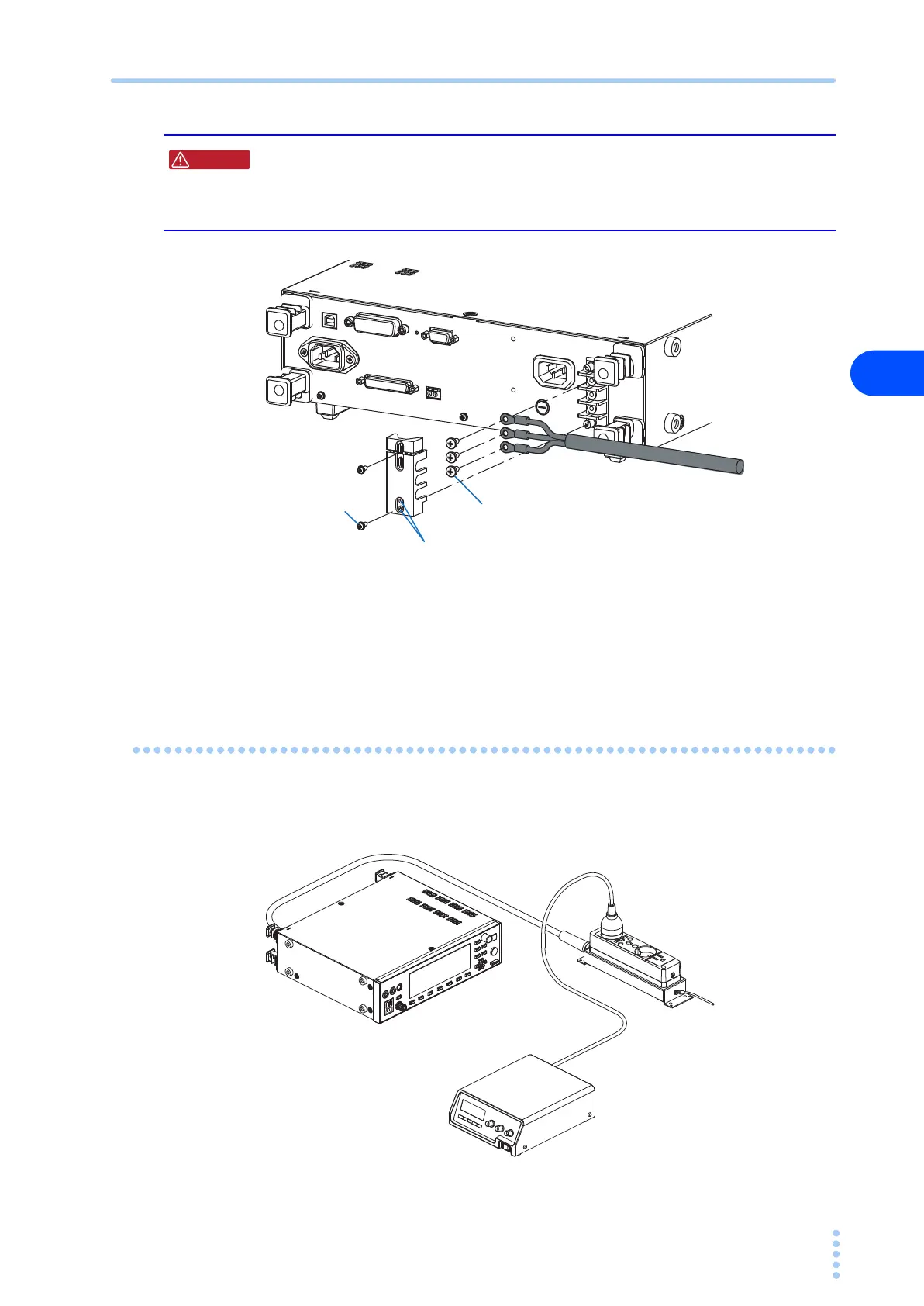

Fig. 4-2 Connecting to the AC LINE OUT terminal block
Using the Optional Multi Outlet (OT01-TOS)
You can connect ordinary plugs available around the world in case the optional Multi Outlet
(OT01-TOS) is used. For details, see the OT01-TOS Operation Manual.
Fig. 4-3 Application example of the OT01-TOS
WARNING
• Electric shock may occur. Be sure to remove the power cord from the AC inlet for
the EUT before making the connection.
• The voltage applied to the AC inlet for the EUT appears at the AC LINE OUT terminal
block. If you are not using the terminal block, cover the terminals with the terminal cover.
L
N
G
M4
M3
If using the terminal block, fix the cover in place using
the lower screw hole.
If not using the terminal block, fix the cover in place
using the upper screw hole to prevent the terminal
from being exposed.
OT01-TOS
