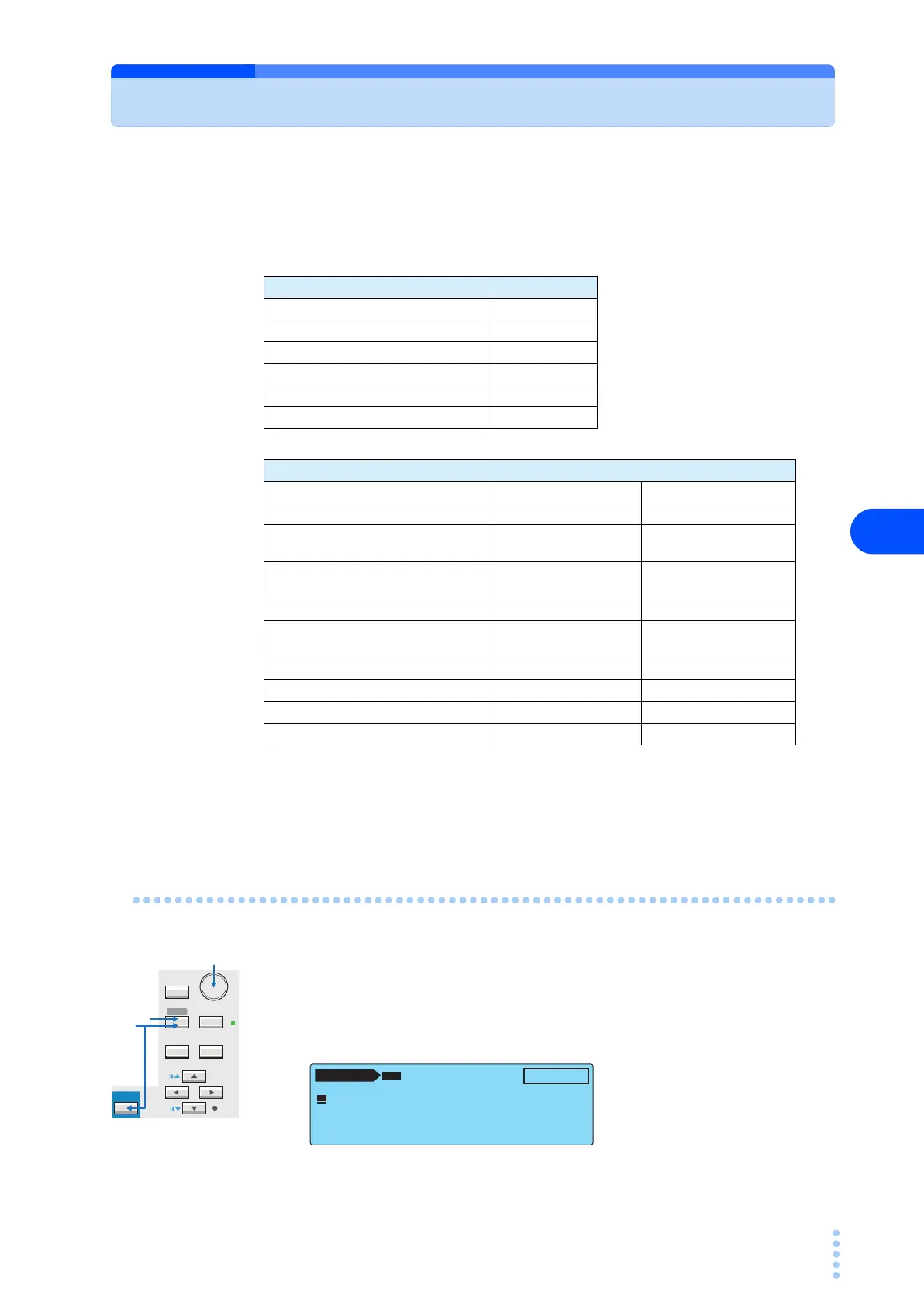

Program Test
Sequence Program Editing Procedure
This section describes the setup procedure of test conditions using an example in which the
TC measurement (between the enclosure and earth) is performed and then the PCC mea-
surement is performed by removing the test lead from the EUT. The detailed settings of this
test are shown below.
The following procedure assumes that nothing is assigned to program number 01 at start.
Entering the Edit Screen
1
Press the AUTO key to display AUTO1/2.
2
Use the rotary knob to select program number 01.
3
Press the EDIT (SHIFT+AUTO) key to display the edit screen.
Items common to all steps Setting
Program number 01
Program name TEST-1
Measurement network (NTWK) B
Current measurement mode (MODE) RMS
Measurement range (RANGE) AUTO
Operation for FAIL judgment (ABORT) Continue (OFF)
Steps specific to each step Setting
Step number 00 01
Operation mode TC measurement PCC measurement (PCC)
Connection destination of the mea-
surement terminal (PROBE)
E
NCPE –
Polarity of the EUT power line (POL) Normal phase connection
(P
NRM)
Normal phase connection
(P
NRM)
Single fault mode (COND) Normal status (NORM) Normal status (NORM)
Interval Until the START switch is
pressed (HOLD)
1 s
Upper reference (UPPER) 0.5 mA 1 mA
Lower reference (LOWER) 35 μA None (OFF)
Test wait time (WAIT) None (OFF) None (OFF)
Test time (TIMER) 1 s 1 s
SHIFT
SYSTEM
RECALL ENTER
STORE
MANUAL
I / FEDIT
AUTO
RMT
PREV NEXT
1
3
2
AUTO 1 / 2
NTWK:A MODE:RMS ABORT:OFF
–– END
PRG
01:
--
UNTITLED
--
EDIT
INS
To Next Page
