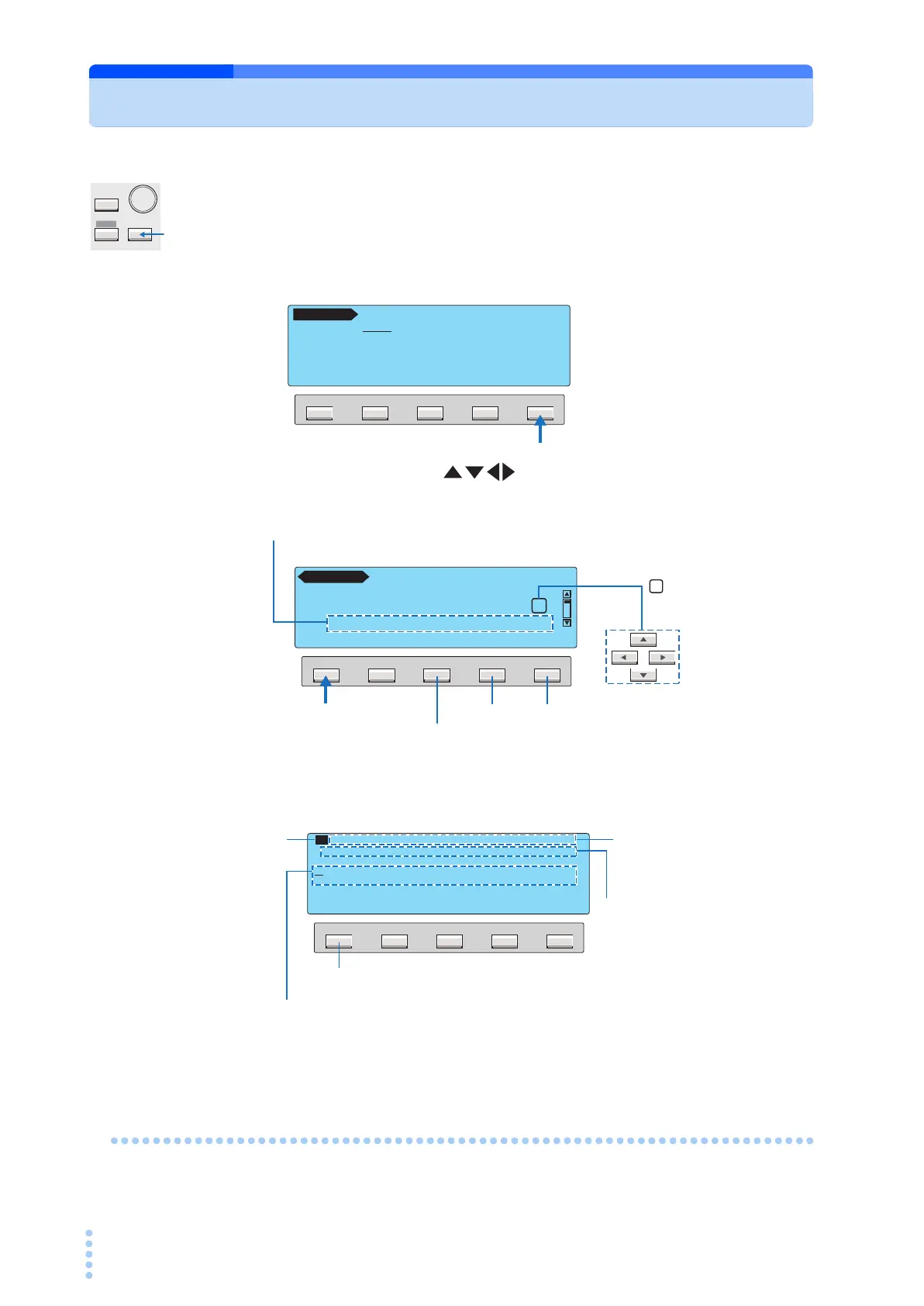

Displaying the Test Results
You can display the stored test results from the system setup screen 4/5 (SYSTEM4/5).
1
Press the SYSTEM key to display SYSTEM1/5.
2
Press the <NEXT> (F5) key three times to display SYSTEM4/5.
3
Press the arrow keys ( ) to select the desired memory number.
4
Press the DATA (F1) key.
The stored test results are displayed.
To return to the current measurement, press the AUTO key.
Deleting the Stored Data
Select the memory number you want to delete in step 3 above, and press the DELETE (F3) key.
SYSTEM
MANUAL
I / FEDIT
AUTO
F5F4F3F2F1
MEAS PASS CONV
MEAS MODE :NORM BUZ VOL (PASS) : 3
PASS HOLD :HOLD BUZ VOL (FAIL) : 3
CONV :OFF CONTRAST :10
SELV :OFF
SELV <NEXT>
SYSTEM1 / 5
F5F4F3F2F1
DATA DELETE <PREV> <NEXT>
[AUTO TEST DATA]
No
1 2 3 4 5 6 7 8 9 10
00:−−UNTITLED−− 2006 / 10 / 17 13 : 45
SYSTEM4/5
If you select a memory number in which a test result is already saved, the saved
information is displayed.
Program number: Program name year/month/day hour:minute
Deletes the test data of the selected memory number.
To SYSTEM5/5 To SYSTEM3/5
Move the box using the
arrow keys to select the
number.
F5F4F3F2F1
LIST
10 00:––UNTITLED– – 2006/10/17 13:45
NETWORK:A MODE:RMS RANGE:AUTO
FUNC•PRB POL•COND CURR TIMER JUDGE
00 TC•E NC P E ––P NRM •NORM–– 0µA– 1s–PASS
01 TC•E NC P E ––P NRM •NORM–– 0µA– 1s–PASS
–– END
Return to the memory selection screen.
Memory
number
Settings common to steps
Measurement network:current
measurement mode:measurement range
Saved information
Program number:program name date
List of test data of each step
Step number operation mode•probe selection--polarity of the EUT power
line•single fault mode--measured current-test time-judgment
