Connecting the EUT
5
Meter Mode Measurement
Connecting the Test lead (TL21-TOS)
The test lead is used in the TC measurement.
The red or black test lead is used separately according to the type of TC to be measured. The
red and black test leads are connected to measurement terminals A and B, respectively.

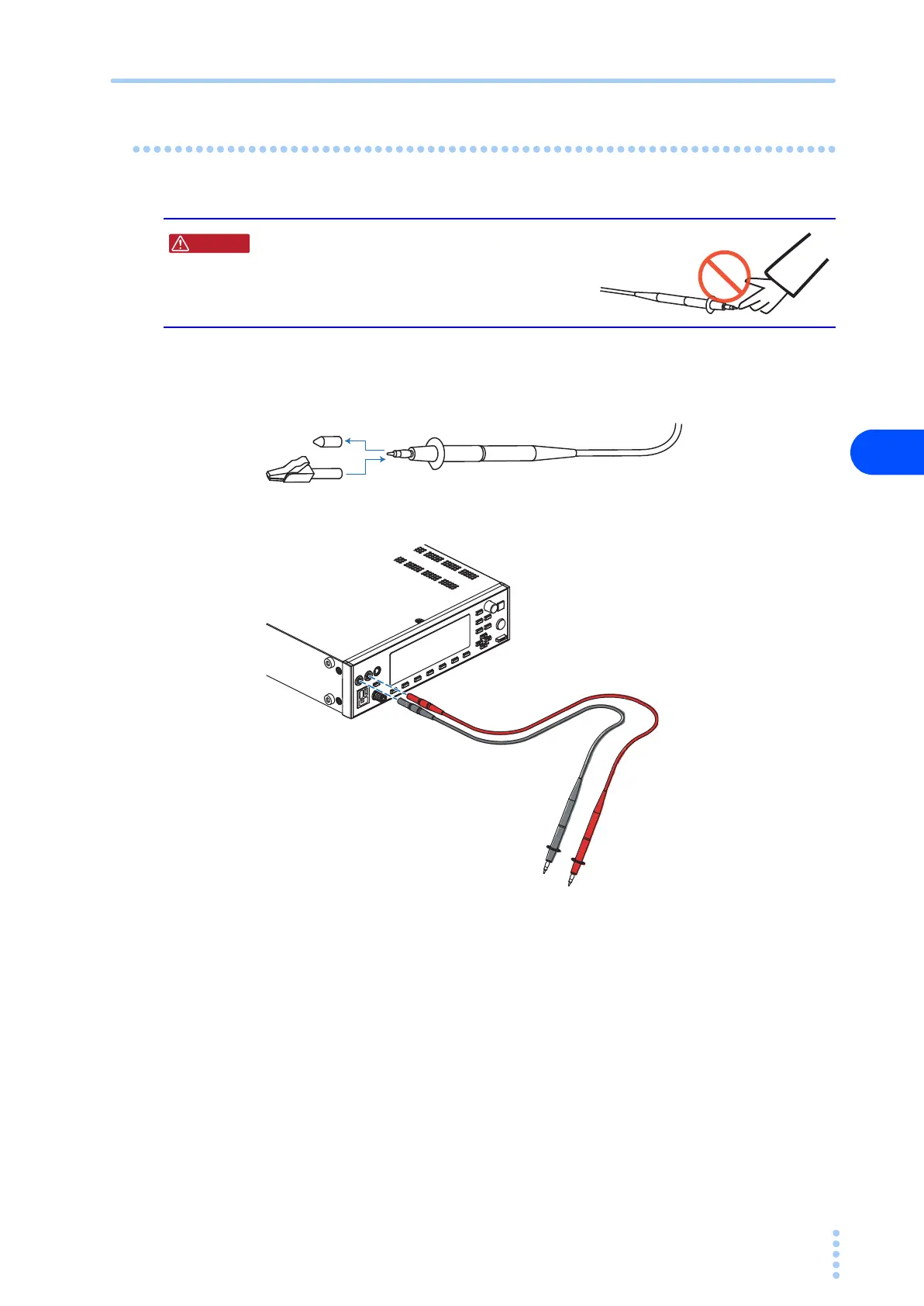

Fig. 5-2 Test lead usage
WARNING
Electric shock may occur. Do not touch the tip
of the lead while using the test lead.
Remove the cap at the tip.
You can also attach the alligator
clip provided.
Red to terminal A
Black to terminal B
