Kollmorgen - December 2011 105

MMC Smart Drive Hardware Manual - 230V 1/3 PHASE MMC SMART DRIVE

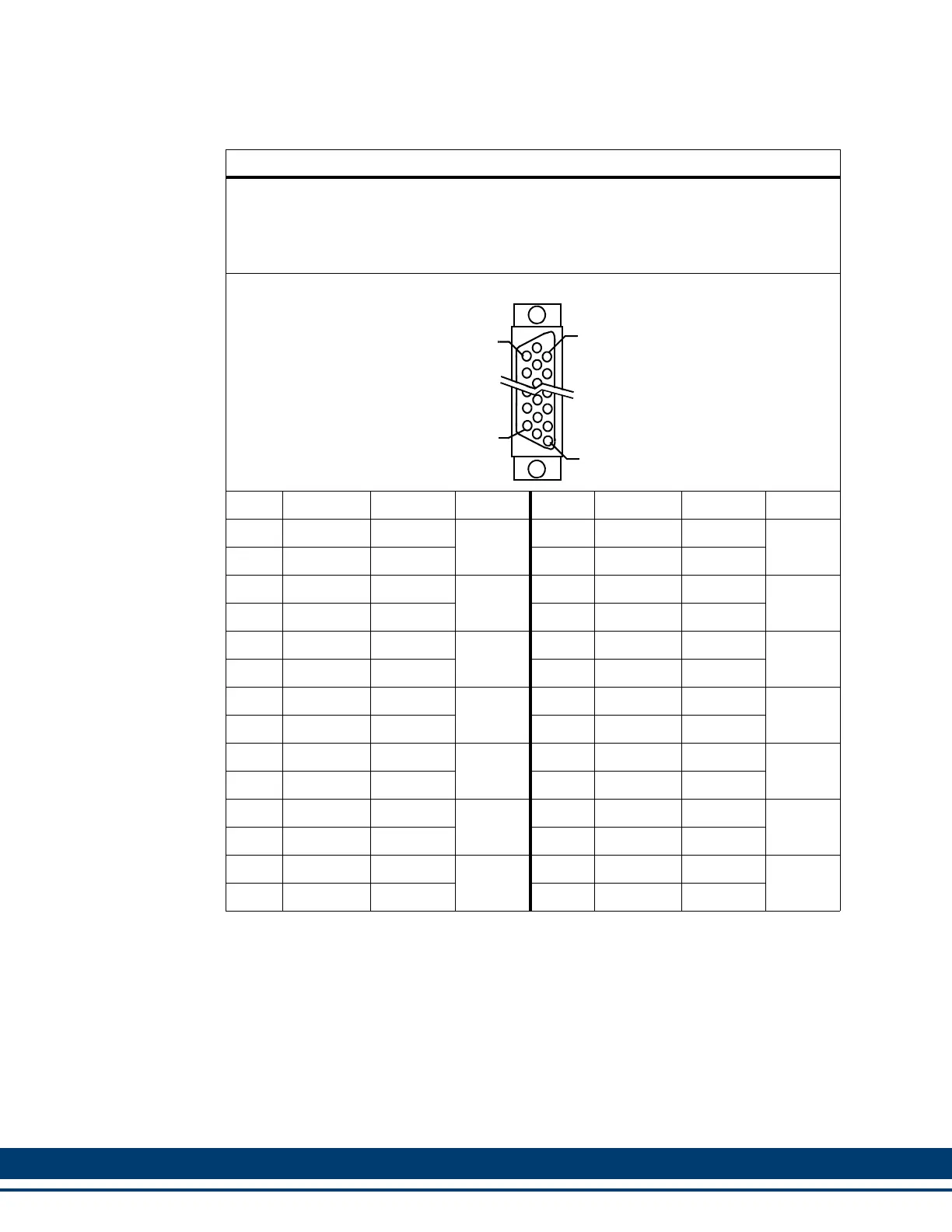

Table 5-33: Drive I/O Port to Flying Lead Cable

Part Numbers:

1 M (3.3 ft): M.1302.7032 15 M (49.2 ft): M.1302.7036

3 M (10 ft): M.1302.7034 30 M (98.4 ft): M.1302.7037

9 M (29.5 ft): M.1302.7035

Cable type: 28 AWG (pins 10 & 16 20 AWG), shielded, twisted pair, 26 conductor.

26-Pin HD male D-sub (to Drive I/O Port, face view)

Pin Signal Color Notes Pin Signal Color Notes

1 A Black Twisted 17 GPIN1 Violet Twisted

2 A/ Blk/Wht Pair 18 GPIN2 Vio/Wht Pair

3 B Red Twisted 19 GPIN3 Pink Twisted

4 B/ Red/Wht Pair 20 GPIN4 Pnk/Wht Pair

5 I Green Twisted 21 GPIN5 Blk/Yel Twisted

6 I/ Grn/Wht Pair 22 GPIN6 Gry/Grn Pair

7 Shield Black Twisted 23 GPOUT1 Grn/Red Twisted

13 Shield Blue Pair 24 GPOUT2 Yel/Red Pair

8 GPIN7 + Blue Twisted 25 GPOUT3 Gry/Blu Twisted

9 GPIN7 - Blu/Wht Pair 26 GPOUT4 Yel/Blu Pair

11 GPIN8 + Yellow Twisted 10 IO24V Gray Twisted

12 GPIN8 - Yel/Wht Pair 16 IO24C Gry/Wht Pair

14 CMD + Brown Twisted

15 CMD - Brn/Wht Pair
