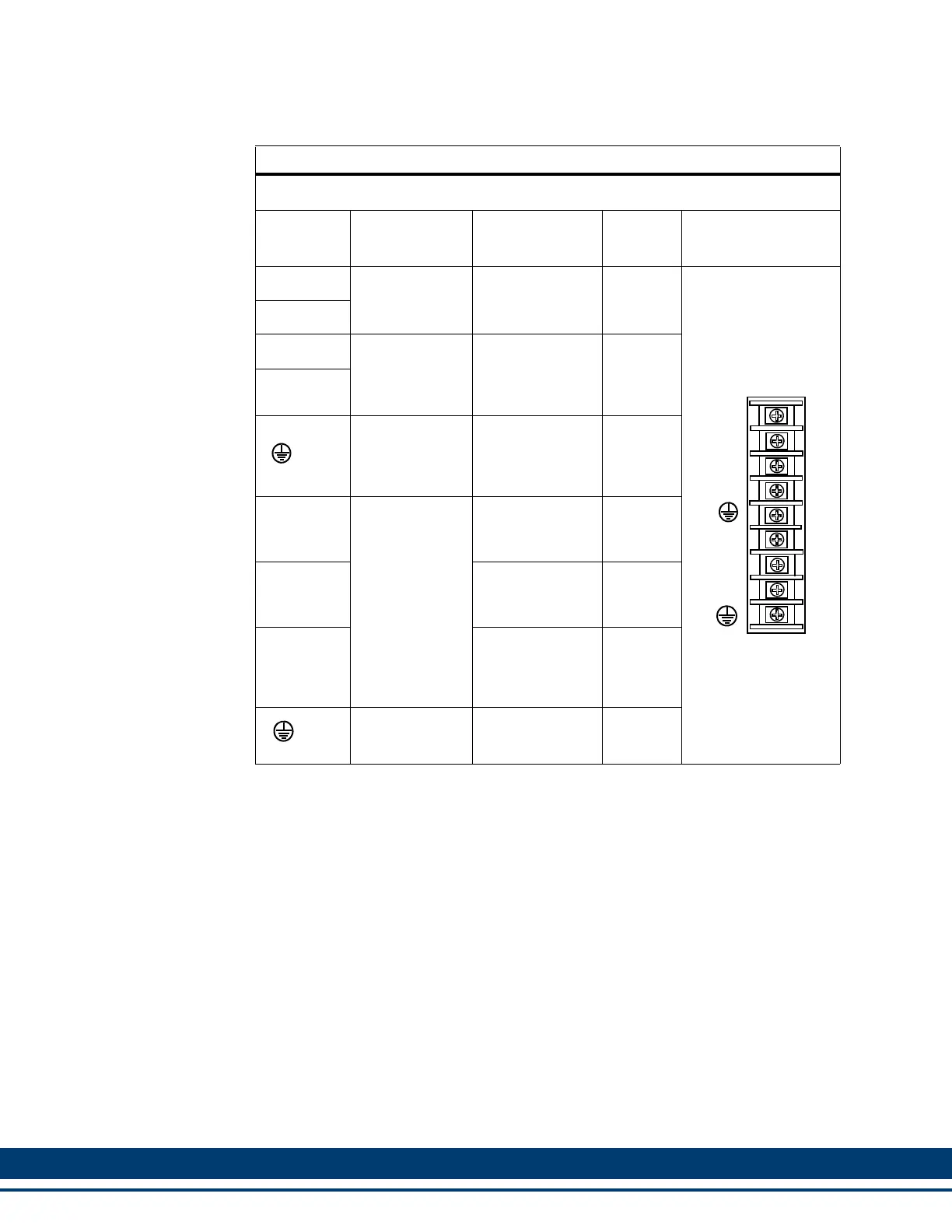

Table 5-36: Pin Assignment for 1 Phase Drive Power Connector
Single Phase Drive
Terminal
Label
Signal Type
Signal
Description
In/Out Pin Sequence
B+
DC Bus
Power from
drive to active
shunt
Out
9-pin non-plugable
Screw Terminal
B-
L1
AC Power
100-240VAC
single phase
power in to
drive.
In
L2
Protective
Ground
Must be con-
nected to Pro-
tective Earth
Ground (SPG).
In
U
Motor Power
Power U-phase
from the drive to
the motor.
Out
V
Power V-phase
from the drive to
the motor.
Out
W
Power W-
Phase from the
drive to the mo-
tor.
Out
Protective
Ground
Connection for
motor ground.
In
W
V
U
L2
L1
B-
B+
