146 Kollmorgen - December 2011
MMC Smart Drive Hardware Manual - 460V 3 PHASE MMC SMART DRIVE NEXTGEN

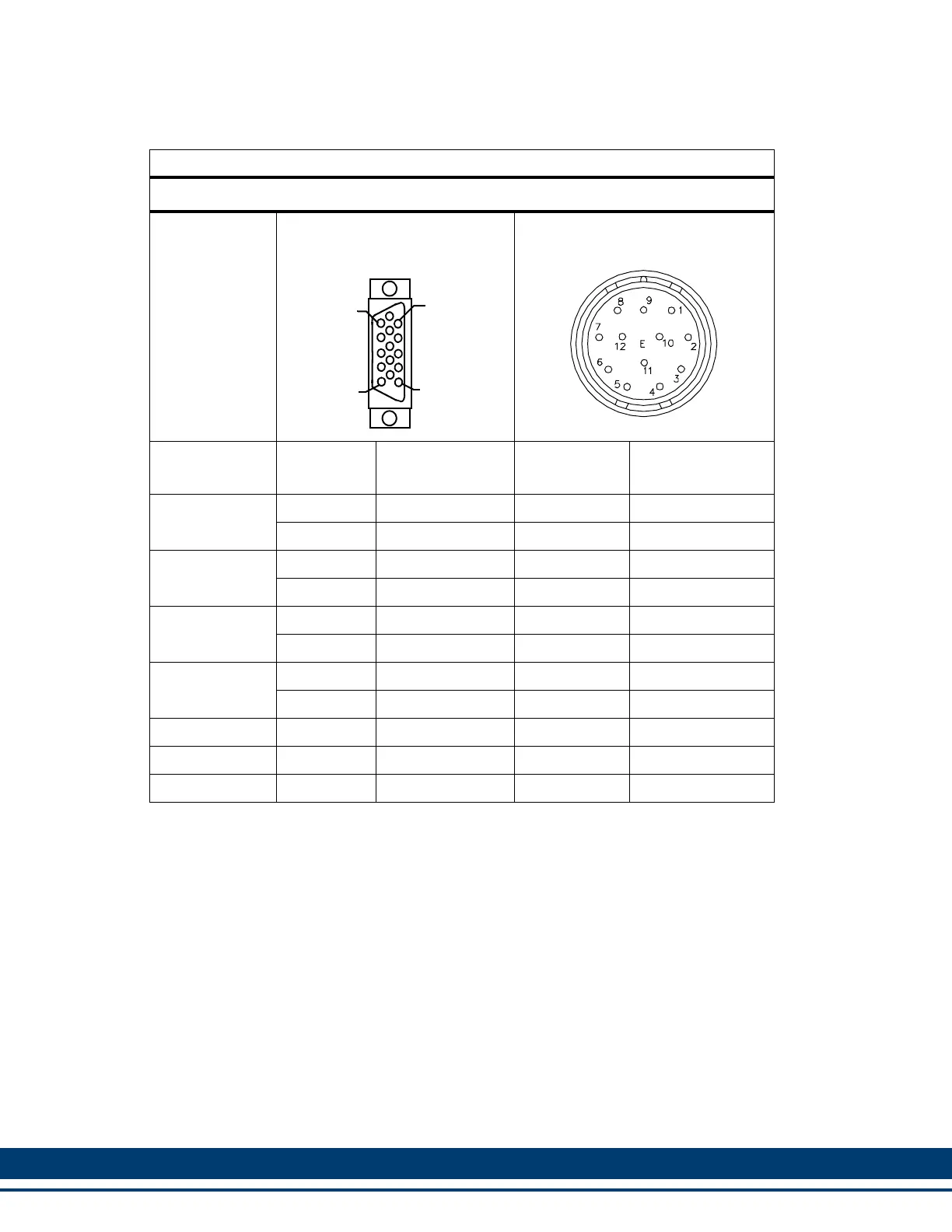

Table 6-14: Feedback Port (F1) Resolver to AKM/DDR Motor
For Part Numbers, Table 6-11 on page 143
Twisted Pair
28 AWG
D-sub 15-Pin HD Male
Connector to MMC Smart
Drive
Connector to Motor
Wire Color
Pin
Number
Signal Type
Pin
Number
Signal Type
Yellow 12 Sin+ 8 Sin+
White/Yellow 13 Sin- 4 Sin-
Blue 14 Cos 7 Cos
White/Blue 15 Cos- 3 Cos-
Black 6 Carrier+ 9 Carrier+
White/Black 7 Carrier- 5 Carrier-
Red 8 Temperature+ 2 Temperature+
White/Red 9 Temperature- 6 Temperature-
Outer Braid Shell Shield Shell Shield
N/A N/A N/A 1,10-12 N/C
N/A 1-5,10,11 N/C N/A N/A
5
1
15
11
