MMC Smart Drive Hardware Manual - 460V 3 PHASE MMC SMART DRIVE NEXTGEN

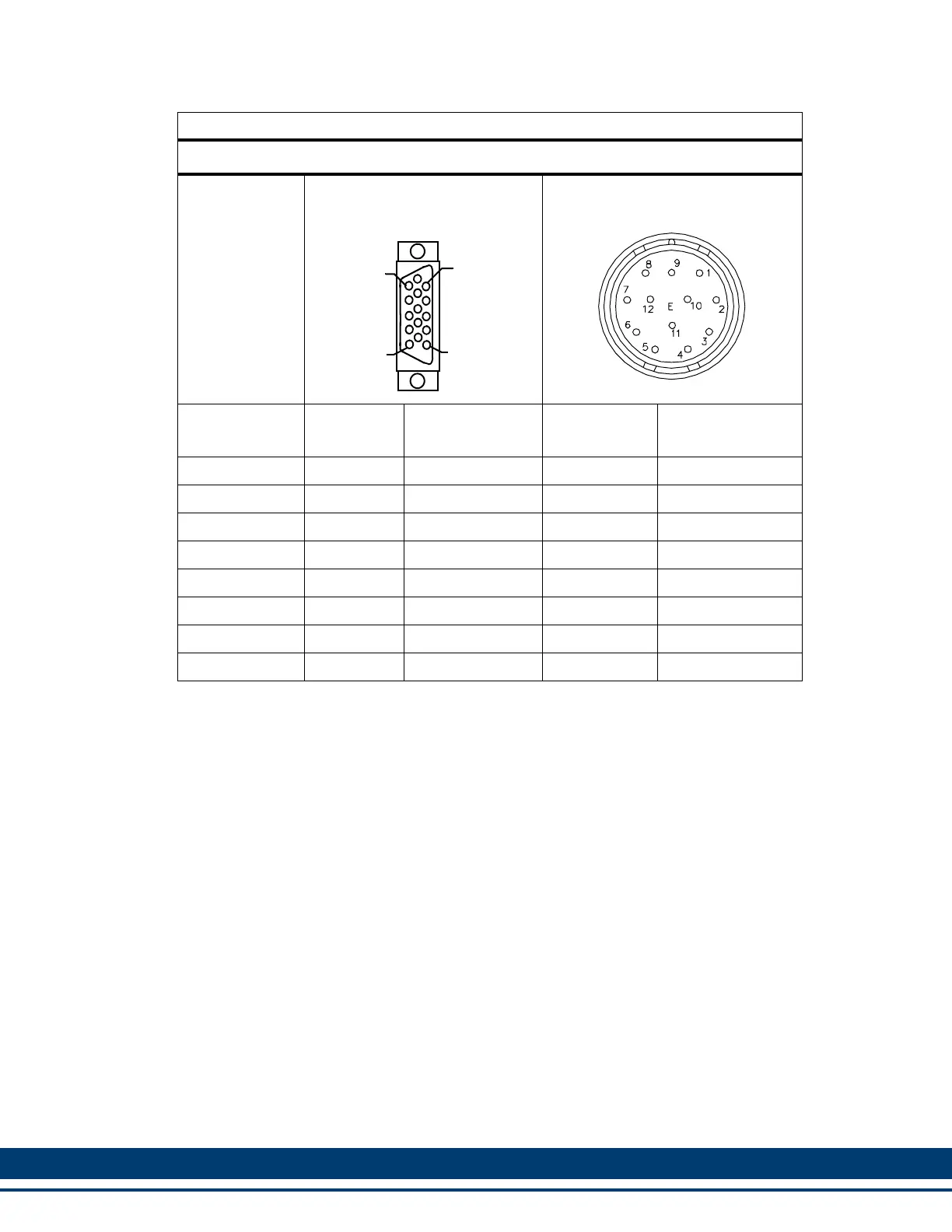

Table 6-15: Feedback Port (F1/F2) SFD to AKM/DDR Motor
For Part Numbers, Table 6-11 on page 143
Wire gauge
as noted
D-sub 15-Pin HD Male
Connector to MMC Smart
Drive
Connector to Motor
Wire Color
Pin
Number
Signal Type
Pin
Number
Signal Type
Red
a
10 +5V Source 1 +5V Source
Drain
a
11 Common 2 Common
Green
b
7 Com- 3 Com-
White
b
6 Com+ 4 Com+
Inner Braid N/C N/A 5 Shield
Outer Braid Shell Shield Shell Shield
N/A N/A N/A 6-12 N/C
N/A 1-5,12-15 N/C N/A N/A
a. This wire is 22 AWG
b. This wire is 24 AWG
5
1
15
11
