34 Kollmorgen - December 2011
MMC Smart Drive Hardware Manual - INSTALLING THE MMC SMART DRIVE
6. Gently pull on each wire to make sure it does not come out of its terminal. Rein-
sert and tighten any loose wires.
7. Attach the plastic cover to terminal block
Factory supplied motor power cables for LSM, MSM, FSM, AKM, DDR, CDDR, and
YSM Series motors are shielded, and the power cable is designed to be terminated at
the drive during installation. A small portion of the cable jacket is removed which
exposes the shield braid. The exposed shield braid must be clamped to the drive
chassis using the provided clamp and clamp screws

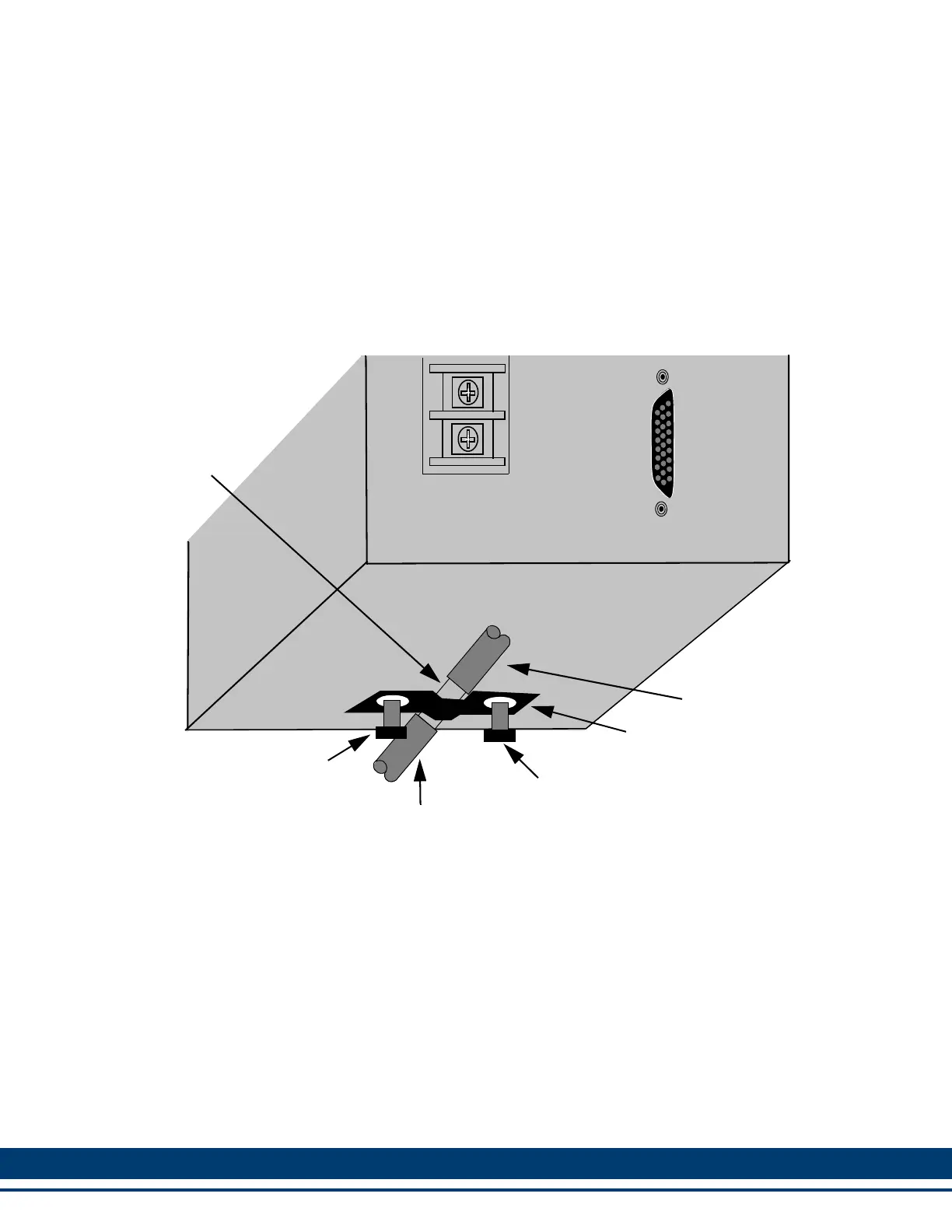

Figure 3-4: Terminating Motor Power Cable for 230V Drive
CAUTION - Risk of Electric Shock
High Voltage may exist up to 10 minutes after removing power
I
O
Motor Cable
Jacket
Shield
Clamp
Clamp
Clamp
Screw
Screw
Motor
Cable
To Next Page
