MMC Smart Drive Hardware Manual - 230V 1/3 PHASE MMC SMART DRIVE

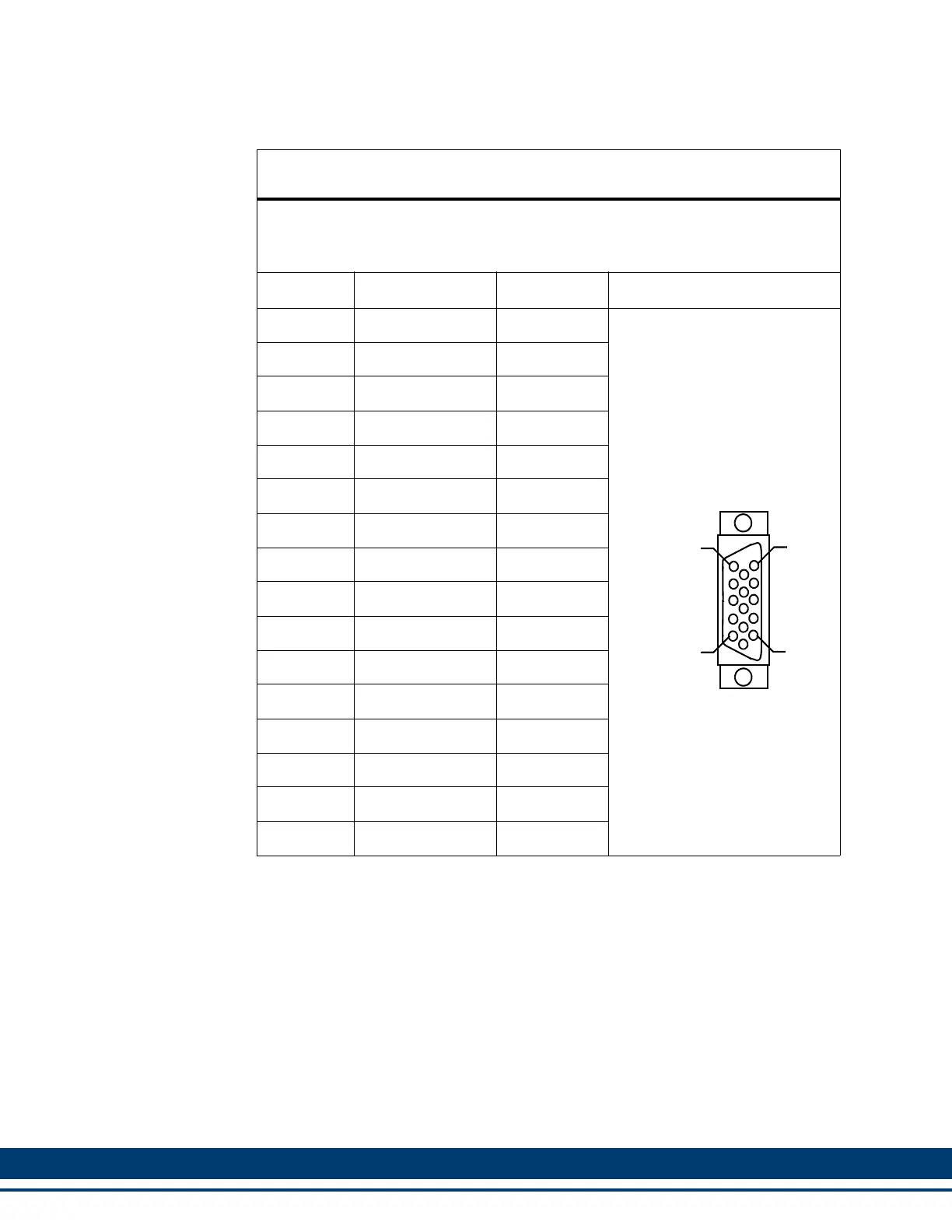

Table 5-14: Pin Assignments for Feedback Connector (F2)
(Digital Interfaced MMC-SD Only)
Pin Assignments
F2 Feedback 15 Pin Connector
230V Single Phase (500W, 1kW, 2kW)
Pin Label In/Out Connector Pinout
1 A2 In
15-pin Female HD D-Sub
2 A2/ In
3 B2 In
4 B2/ In
5 I2 In
6 Common In/Out
7 +9V Out
8 S3 In
9 Do Not Connect N/A
10 I2/ In
11 Temperature In
12 S1 In
13 S2 In
14 +5V Out
15 Do Not Connect N/A
Shell Shield In
5
1
15
11
