1-S33
MX5100, WSM
ENGINE

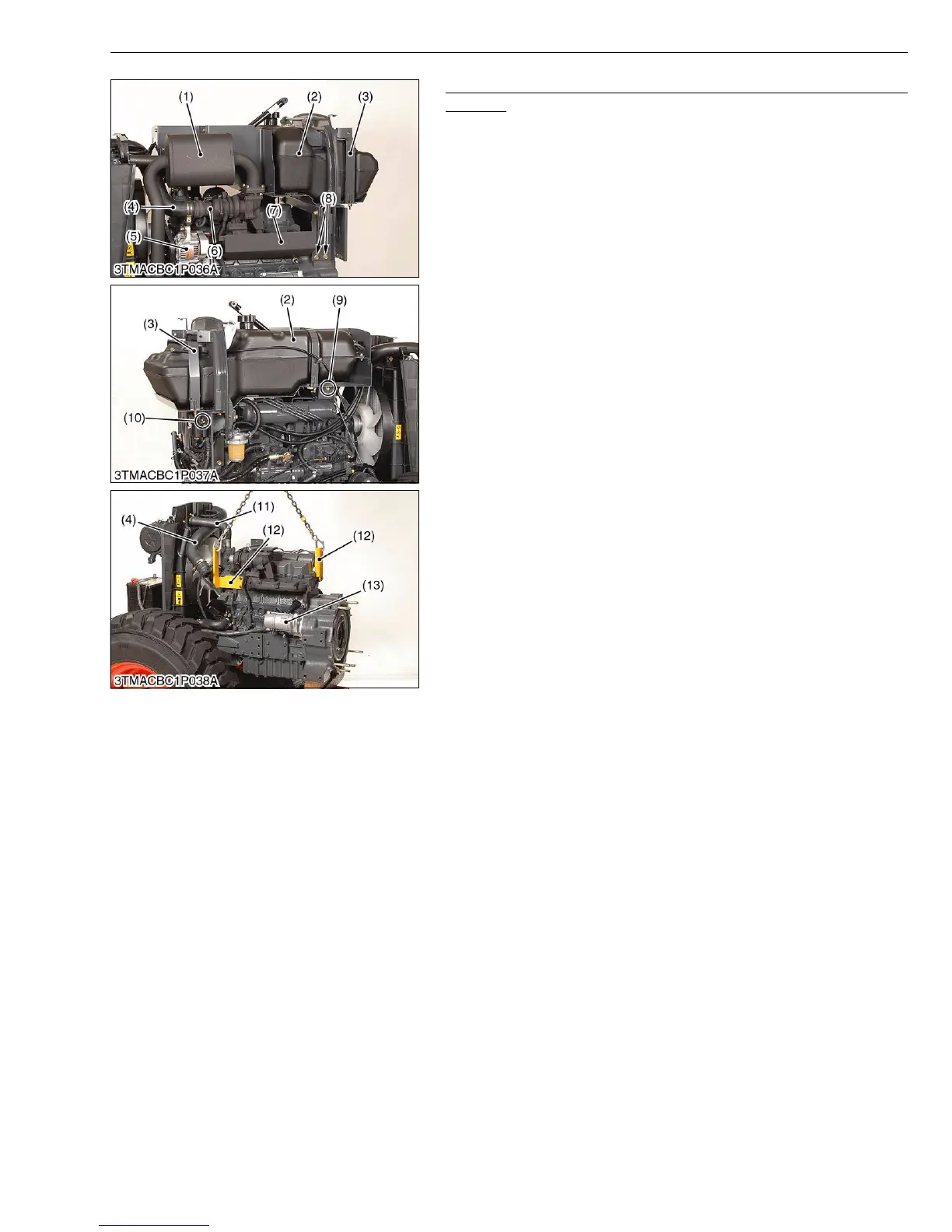

Removing Muffler, Fuel Tank, Fuel Tank Stay and Wiring
Harness
1. Remove the muffler (1).
2. Remove the exhaust manifold cover (7).
3. Remove the fuel tank stay mounting bolts (8) (9) (10).
4. Disconnect the radiator hose (11) from the engine. Disconnect
the inlet hose (4) from the turbocharger.
5. Remove the alternator (5) from the engine.
6. Disconnect the fuel hose from the fuel feed pump.
7. Hook the fuel tank stay using a nylon sling.
8. Disconnect the water temperature sensor lead from the cylinder
head.
9. Disconnect the fuel overflow hose from the fuel injection nozzle.
10.Remove the fuel tank (2) with the fuel tank stay (3).
11.Set the engine hooks to the engine.
W11463040
(1) Muffler
(2) Fuel Tank
(3) Fuel Tank Stay
(4) Inlet Hose
(5) Alternator
(6) Turbocharger
(7) Exhaust Manifold Cover
(8) Bolt
(9) Bolt
(10) Bolt
(11) Radiator Hose
(12) Engine Hook
(13) Starter Motor
To Next Page
