2-S13
MX5100, WSM
CLUTCH

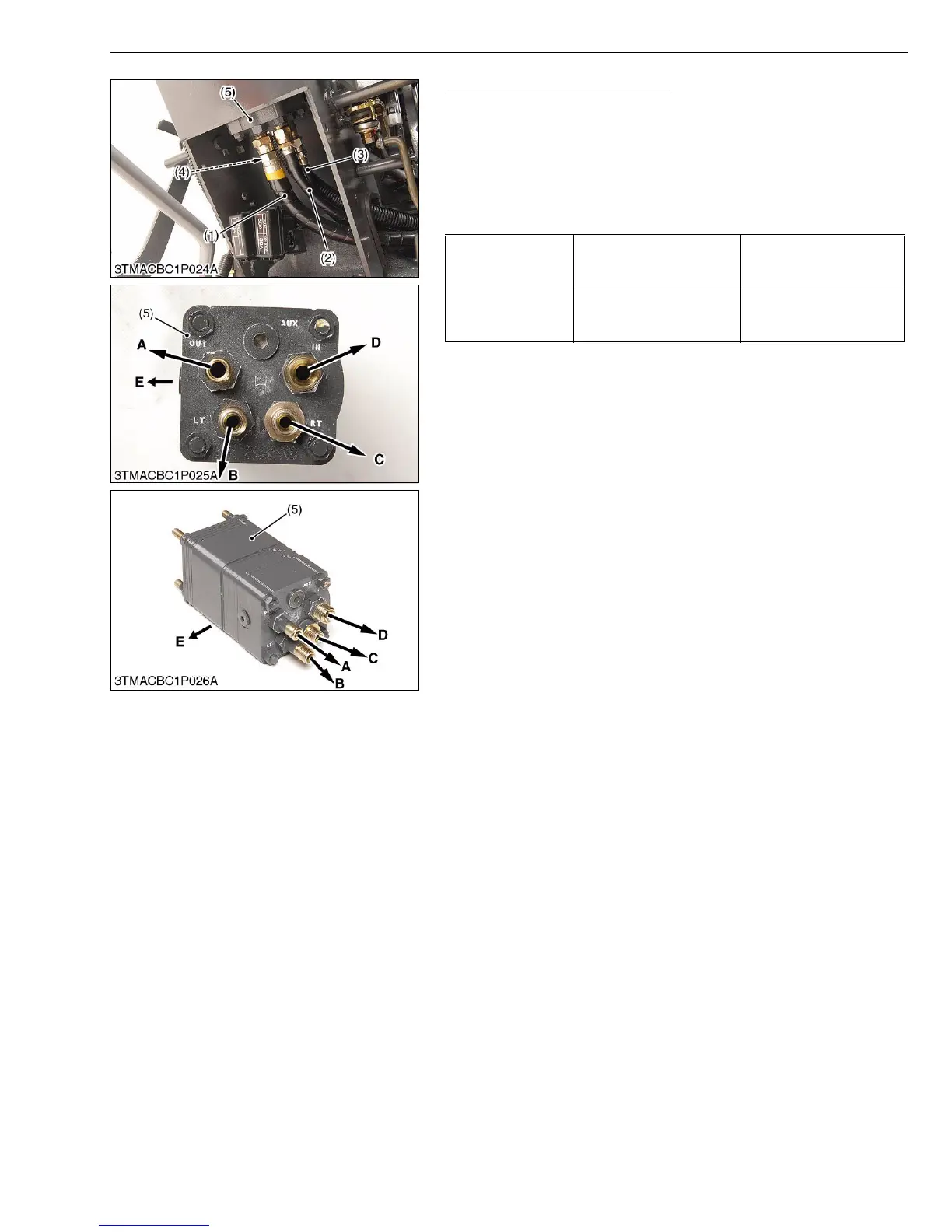

Disconnecting Steering Hoses
1. Before disconnect the steering hoses (1), (2), (3), (4), bind the
same color tapes to the steering hoses (1), (2), (3), (4) and to the
joints of the power steering controller (5).
2. Disconnect the steering hoses (1), (2), (3), (4) from the steering
controller (5).
(When reassembling)
• Connect the steering hoses to the original positions.
W10425190
Tightening torque
Power steering main
delivery hose retaining nut
46.6 to 50.9 N·m
4.8 to 5.2 kgf·m
34.4 to 37.6 lbf·ft
Power steering turning
delivery hoses retaining
nut
24.5 to 29.4 N·m
2.5 to 3.0 kgf·m
18.1 to 21.7 lbf·ft
(1) Main Delivery Hose (from Pump)
(2) Delivery Hose (to Power Steering
Cylinder, LH)
(3) Delivery Hose (to Power Steering
Cylinder, RH, Yellow Color Tape)
(4) Return Hose
(5) Power Steering Controller
A : Connected to Return Hose
B : Connected to Left Turning
Delivery Hose
C : Connected to Right Turning
Delivery Hose
D : Connected to Main Delivery Hose
E : Engine Side
To Next Page
