Steering Wheel, Meter Panel and Rear Bonnet
1. Remove the steering wheel cap.
2. Remove the steering wheel mounting nut and remove the
steering wheel (1) with a steering wheel puller.
3. Remove the accelerator lever grip (4).
4. Remove the rubber steering cover.
5. Disconnect the hour meter cable (8) from the engine gear case.
6. Remove the meter panel mounting screws.
7. Disconnect the connector and the hour meter cable from the
meter panel.
8. Remove the rear bonnet mounting screws.
9. Disconnect the connectors.
10.Remove the rear bonnets (3), (6).
(When reassembling)
• Do not damage the plastic parts.
W10437710
Tightening torque
Steering wheel mounting
nut
48.0 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft

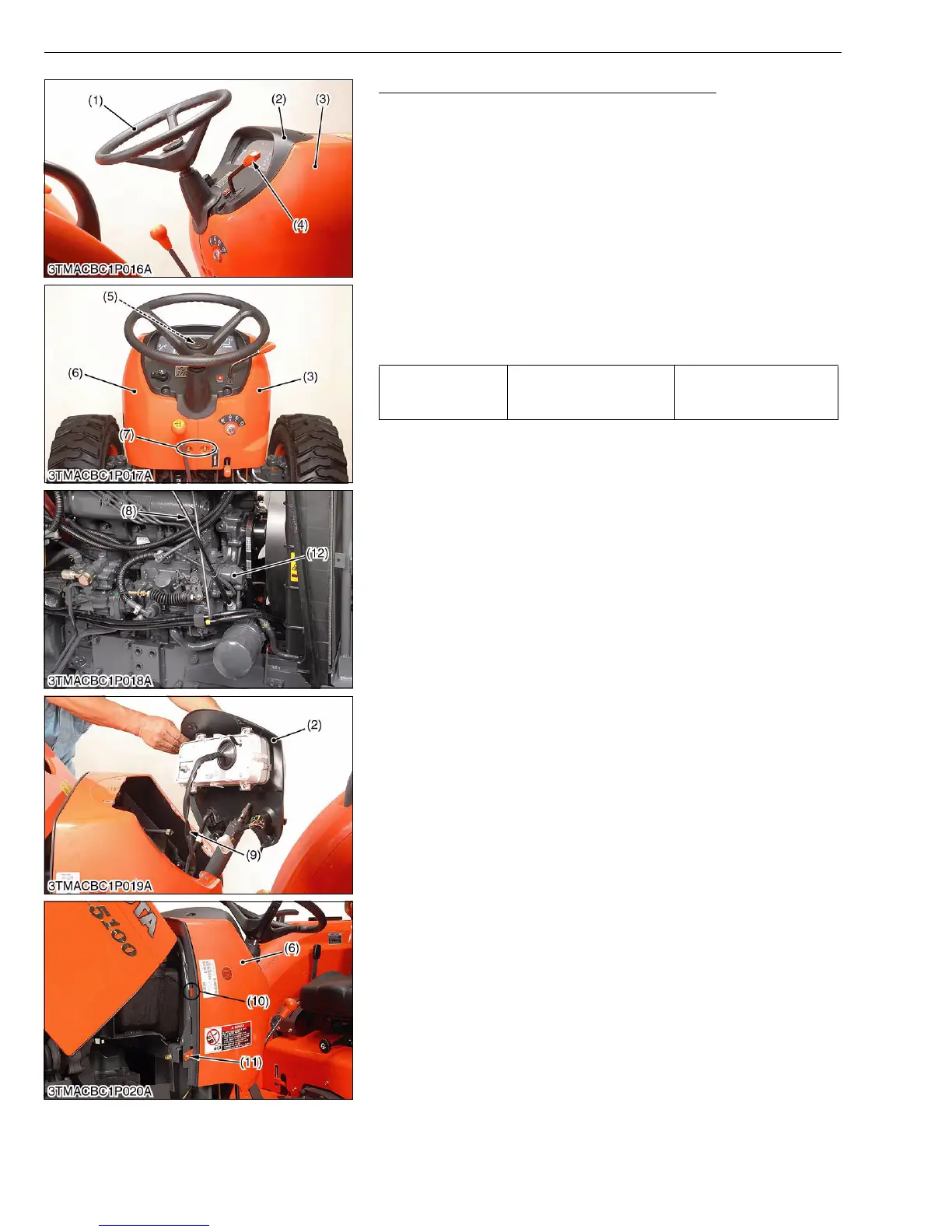

(1) Steering Wheel
(2) Meter Panel
(3) Rear Bonnet (RH)
(4) Accelerator Lever Grip
(5) Steering Wheel Mounting Nut
(6) Rear Bonnet (LH)
(7) Screw
(8) Hour Meter Cable
(9) Wiring
(10) Hook
(11) Screw
(12) Engine Stop Solenoid
